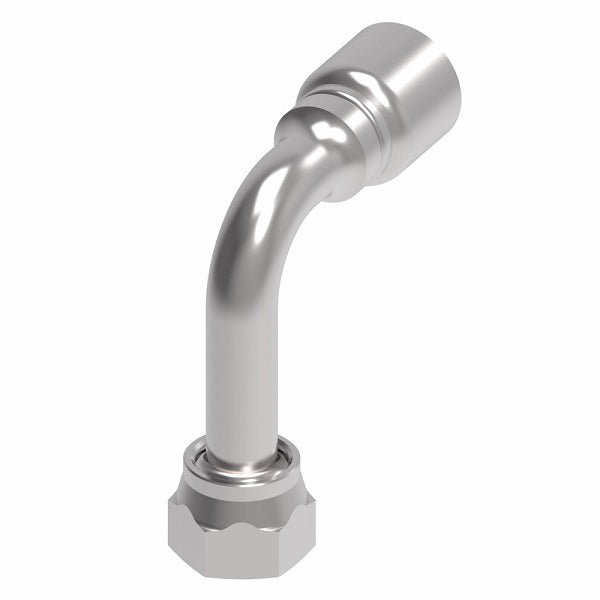

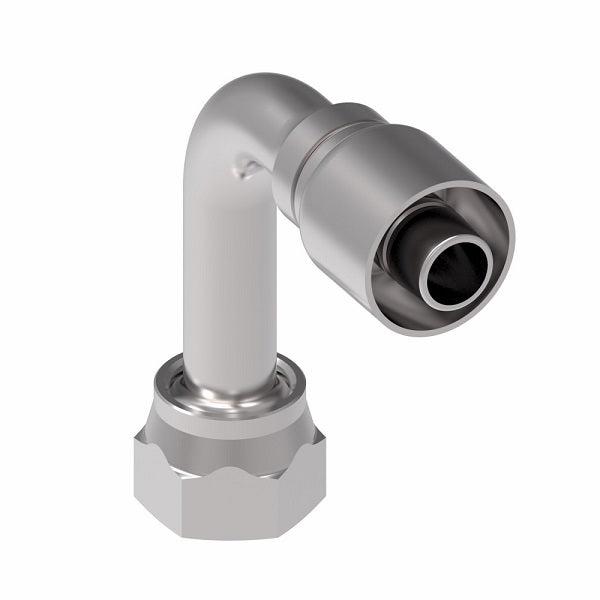

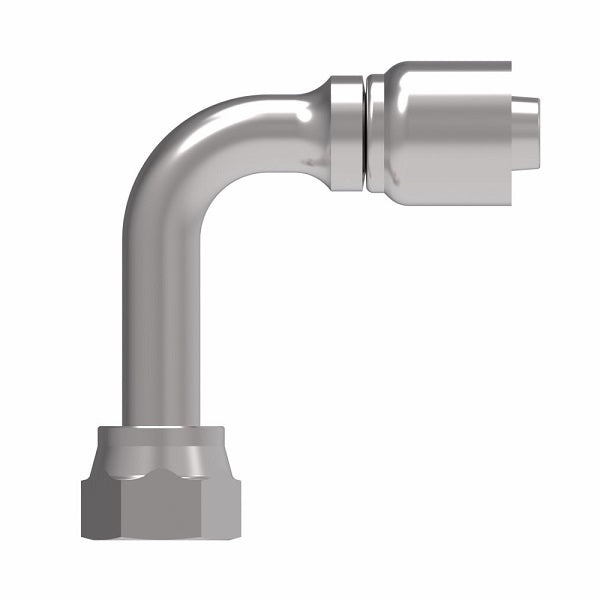

1GA12FRC12 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel

1GA12FRC12 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel

Name: 1GA12FRC12 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1GA12FRC12 Danfoss
Price: 63.3 USD
Availability: InStock

$63.30 - $63.30

$63.30

$63.30 - $63.30

$63.30

Aeroquip® by Danfoss
1 & 2 Wire OTC Female ORS Swivel Long Drop Crimp Fitting (FRC) - 90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1GA12FRC12 Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Female O-Ring Face Seal, 3/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel, Long Drop
Compatible with the following Series:	2583 Series \| 2661 Series \| FC466 Series \| FC498 Series \| FC598 Series \| FC619 Series \| FC699 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	E&Oslash	H	Hex 1
1GA8FRC8	13/16-16	-08	2.87"	1.67"	0.33"	2.51"	15/16"
1GA10FRC10	1-14	-10	3.08"	1.91"	0.44"	2.76"	1-1/8"
1GA12FRC12	1-3/16-12	-12	3.48"	2.30"	0.56"	3.78"	1-3/8"
1GA16FRC16	1-7/16-12	-16	4.22"	2.86"	0.78"	4.50"	1-5/8"
1GA20FRC20	1-11/16-12	-20	5.30"	3.57"	1.01"	5.09"	1-7/8"
1GA24FRC24	2-12	-24	4.63"	2.81"	1.26"	5.54"	2-1/4"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
