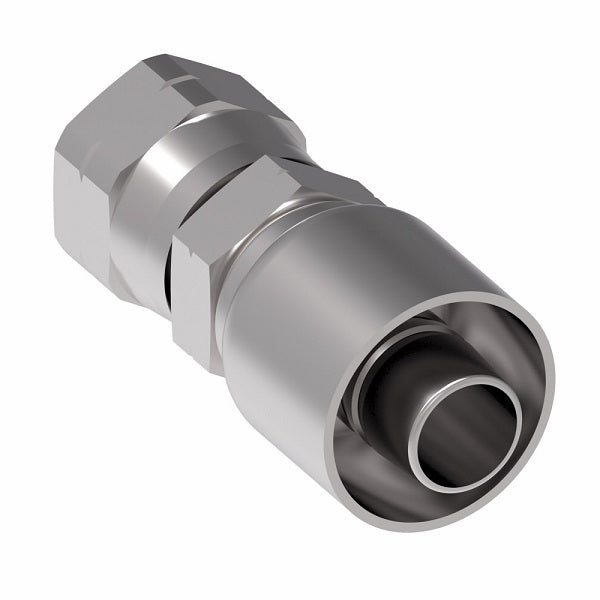

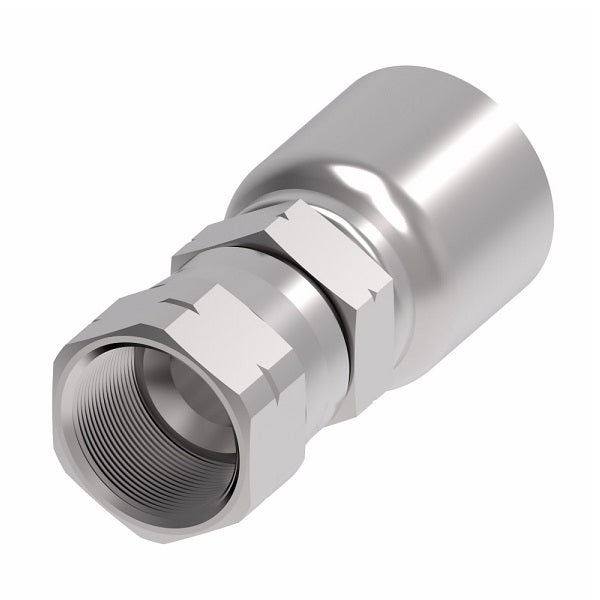

1GA10FS10 Aeroquip by Danfoss | 1 & 2 Wire OTC Female SAE 45° Swivel (FS) Crimp Fitting | -10 Female SAE 45° Swivel x -10 Hose Barb | Steel

1GA10FS10 Aeroquip by Danfoss | 1 & 2 Wire OTC Female SAE 45° Swivel (FS) Crimp Fitting | -10 Female SAE 45° Swivel x -10 Hose Barb | Steel | Pack of 10

$191.37 - $191.37

$191.37

$191.37 - $191.37

$191.37

Aeroquip® by Danfoss
1 & 2 Wire Global OTC Female SAE 45° Swivel Crimp Fitting (FS) - Straight

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 1GA10FS10 Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	5/8in Female SAE 45, 5/8in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2583 Series \| 2661 Series \| FC466 Series \| FC498 Series \| FC598 Series \| FC619 Series \| FC699 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	E&Oslash	Hex 1	Hex 2
1GA4FS4	7/16-20	-04	2.00"	1.07"	0.17"	9/16"	9/16"
1GA6FS6	5/8-18	-06	2.15"	1.31"	0.26"	3/4"	11/16"
1GA8FS8	3/4-16	-08	2.63"	1.46"	0.38"	7/8"	13/16"
1GA10FS10	7/8-14	-10	2.77"	1.61"	0.50"	1"	15/16"
1GA12FS12	1-1/16-14	-12	2.84"	1.65"	0.61"	1-1/4"	1-1/8"
