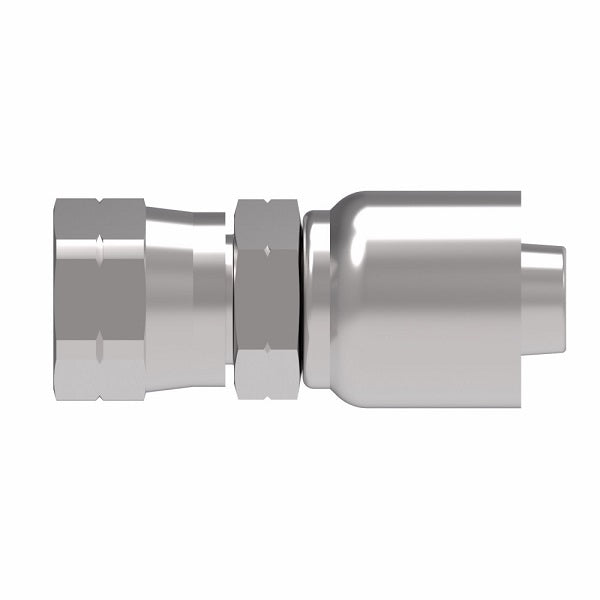

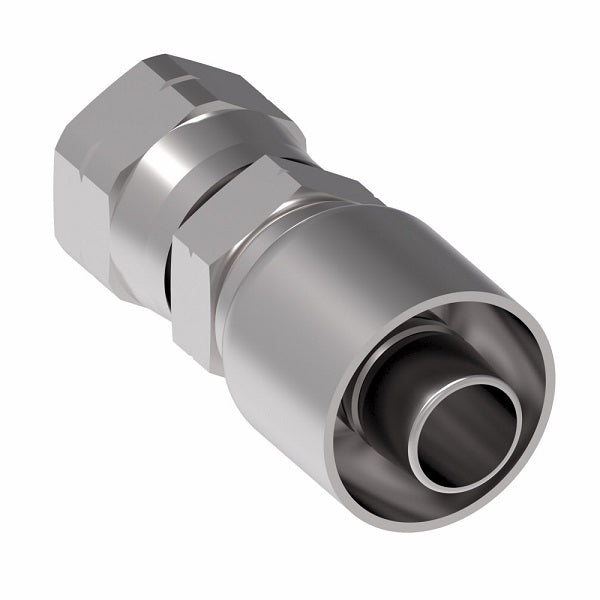

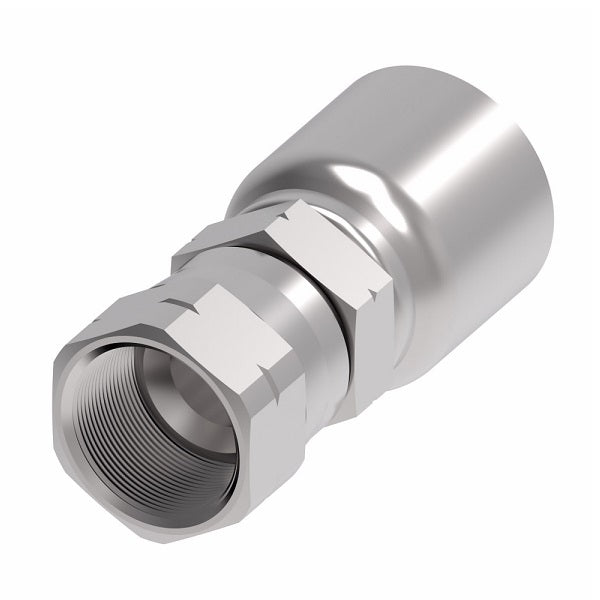

1GA8FS8 Aeroquip by Danfoss | 1 & 2 Wire OTC Female SAE 45° Swivel (FS) Crimp Fitting | -08 Female SAE 45° Swivel x -08 Hose Barb | Steel

1GA8FS8 Aeroquip by Danfoss | 1 & 2 Wire OTC Female SAE 45° Swivel (FS) Crimp Fitting | -08 Female SAE 45° Swivel x -08 Hose Barb | Steel

Name: 1GA8FS8 Aeroquip by Danfoss | 1 & 2 Wire OTC Female SAE 45° Swivel (FS) Crimp Fitting | -08 Female SAE 45° Swivel x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1GA8FS8 Danfoss
Price: 44.13 USD
Availability: InStock

$44.13 - $44.13

$44.13

$44.13 - $44.13

$44.13

Aeroquip® by Danfoss
1 & 2 Wire Global OTC Female SAE 45° Swivel Crimp Fitting (FS) - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1GA8FS8 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female SAE 45, 1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2583 Series \| 2661 Series \| FC466 Series \| FC498 Series \| FC598 Series \| FC619 Series \| FC699 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	E&Oslash	Hex 1	Hex 2
1GA4FS4	7/16-20	-04	2.00"	1.07"	0.17"	9/16"	9/16"
1GA6FS6	5/8-18	-06	2.15"	1.31"	0.26"	3/4"	11/16"
1GA8FS8	3/4-16	-08	2.63"	1.46"	0.38"	7/8"	13/16"
1GA10FS10	7/8-14	-10	2.77"	1.61"	0.50"	1"	15/16"
1GA12FS12	1-1/16-14	-12	2.84"	1.65"	0.61"	1-1/4"	1-1/8"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
