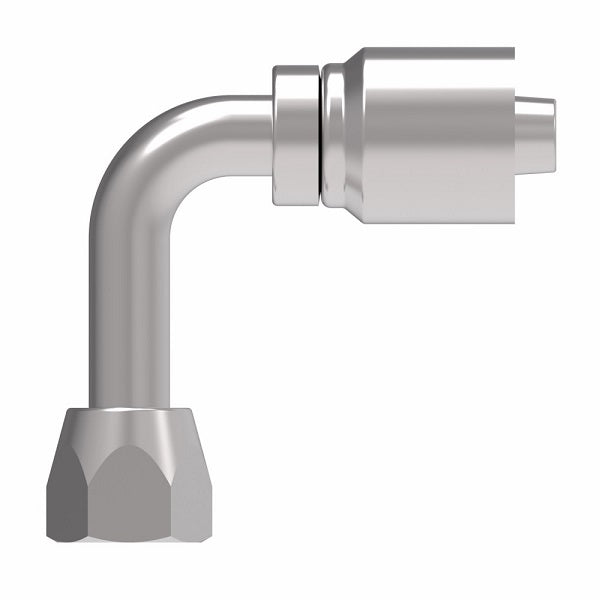

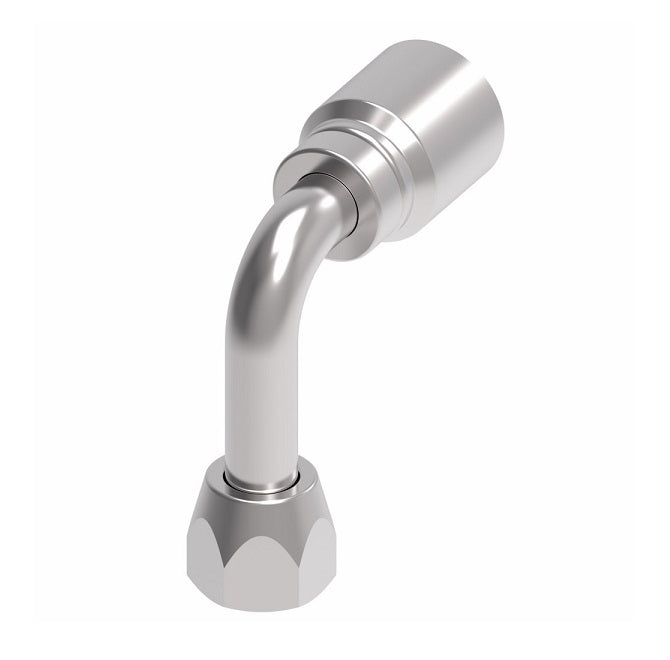

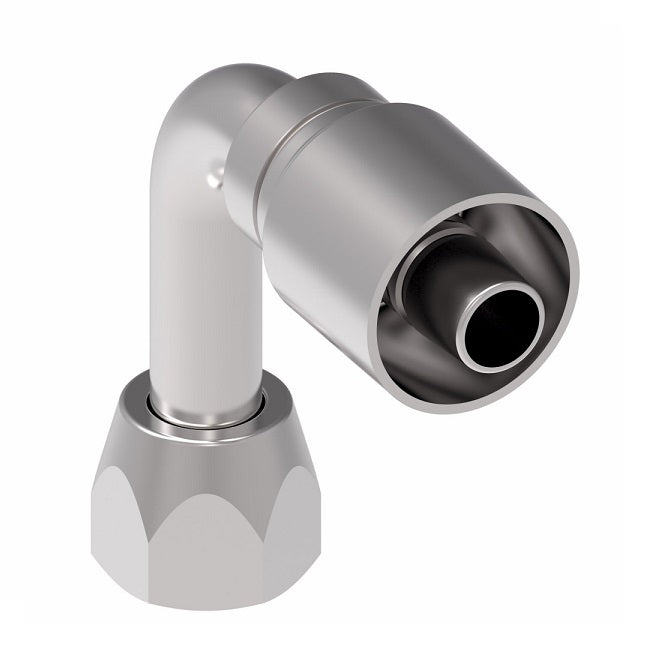

1GA12FJC12 Aeroquip by Danfoss | 1 & 2 Wire OTC Female JIC 37° Swivel 90° Long Drop Elbow (FJC) Crimp Fitting | -12 Female JIC 37° Swivel x -12 Hose Barb | Steel

1GA12FJC12 Aeroquip by Danfoss | 1 & 2 Wire OTC Female JIC 37° Swivel 90° Long Drop Elbow (FJC) Crimp Fitting | -12 Female JIC 37° Swivel x -12 Hose Barb | Steel

Name: 1GA12FJC12 Aeroquip by Danfoss | 1 & 2 Wire OTC Female JIC 37° Swivel 90° Long Drop Elbow (FJC) Crimp Fitting | -12 Female JIC 37° Swivel x -12 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1GA12FJC12 Danfoss
Price: 53.79 USD
Availability: InStock

$53.79 - $53.79

$53.79

$53.79 - $53.79

$53.79

Aeroquip® by Danfoss
1 & 2 Wire Global OTC Female JIC 37° Swivel Long Drop Crimp Fittings (FJC) - 90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1GA12FJC12 Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Female JIC, 3/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel, Long Drop
Compatible with the following Series:	2583 Series \| 2661 Series \| FC466 Series \| FC498 Series \| FC598 Series \| FC619 Series \| FC699 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	E&Oslash	H	Hex 1
1GA8FJC8*	3/4-16	-08	2.71"	1.54"	0.37"	2.45"	7/8"
1GA12FJC12	1-1/16-12	-12	3.36"	2.04"	0.58"	3.76"	1-1/4"
1GA16FJC16	1-5/16-12	-16	3.56"	2.87"	0.81"	4.58"	1-1/2"
1GA20FJC20	1-5/8-12	-20	4.25"	2.52"	1.01"	5.53"	2"

* Swivel nuts are universal for both SAE 37° and SAE 45° connections.
