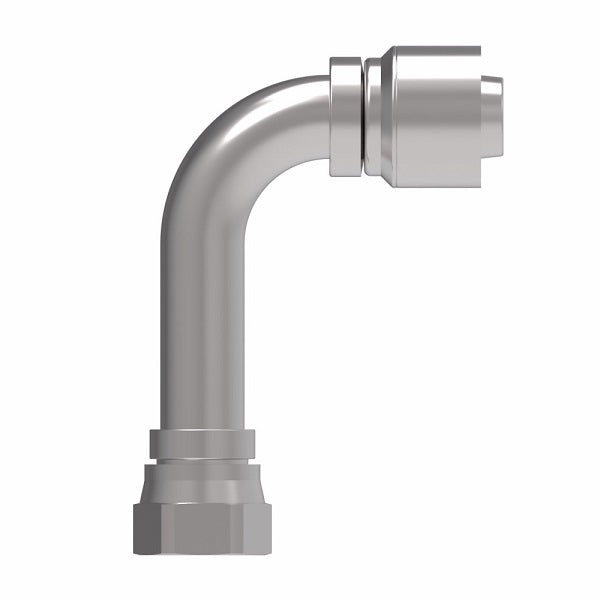

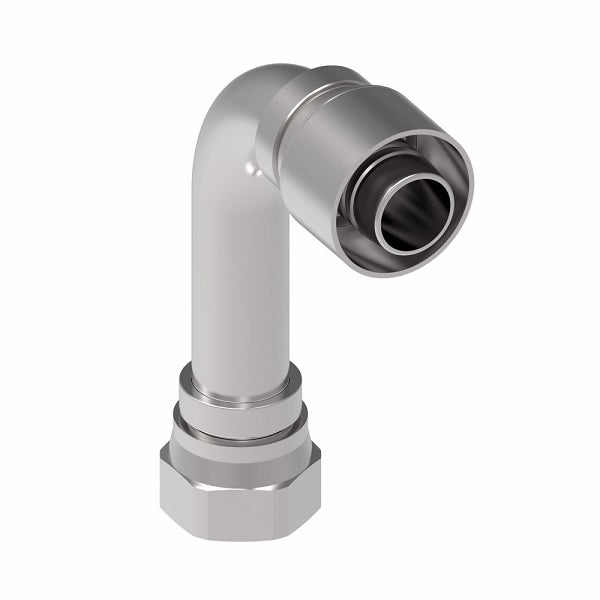

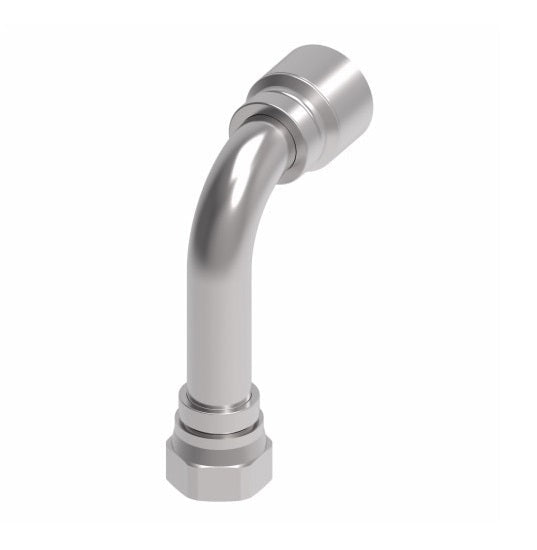

1GA16FJC16 Aeroquip by Danfoss | 1 & 2 Wire OTC Female JIC 37° Swivel 90° Long Drop Elbow (FJC) Crimp Fitting | -16 Female JIC 37° Swivel x -16 Hose Barb | Steel

1GA16FJC16 Aeroquip by Danfoss | 1 & 2 Wire OTC Female JIC 37° Swivel 90° Long Drop Elbow (FJC) Crimp Fitting | -16 Female JIC 37° Swivel x -16 Hose Barb | Steel

Name: 1GA16FJC16 Aeroquip by Danfoss | 1 & 2 Wire OTC Female JIC 37° Swivel 90° Long Drop Elbow (FJC) Crimp Fitting | -16 Female JIC 37° Swivel x -16 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1GA16FJC16 Danfoss
Price: 106.95 USD
Availability: InStock

$106.95 - $106.95

$106.95

$106.95 - $106.95

$106.95

Aeroquip® by Danfoss
1 & 2 Wire Global OTC Female JIC 37° Swivel Long Drop Crimp Fittings (FJC) - 90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1GA16FJC16 Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1in Female JIC, 1in Hose Barb
Material(s):	Steel
Special Properties:	Swivel, Long Drop
Compatible with the following Series:	2583 Series \| 2661 Series \| FC466 Series \| FC498 Series \| FC598 Series \| FC619 Series \| FC699 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	E&Oslash	H	Hex 1
1GA8FJC8*	3/4-16	-08	2.71"	1.54"	0.37"	2.45"	7/8"
1GA12FJC12	1-1/16-12	-12	3.36"	2.04"	0.58"	3.76"	1-1/4"
1GA16FJC16	1-5/16-12	-16	3.56"	2.87"	0.81"	4.58"	1-1/2"
1GA20FJC20	1-5/8-12	-20	4.25"	2.52"	1.01"	5.53"	2"

* Swivel nuts are universal for both SAE 37° and SAE 45° connections.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
