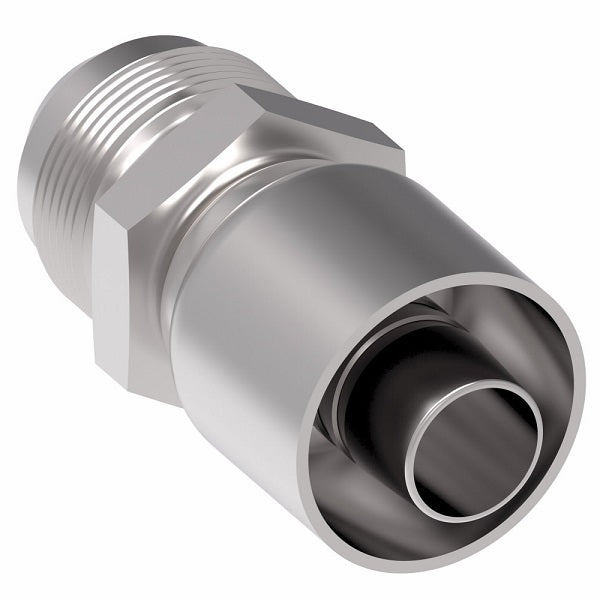

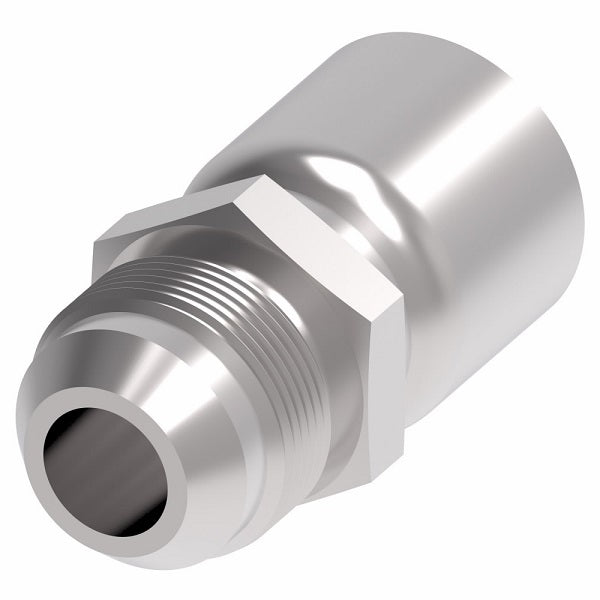

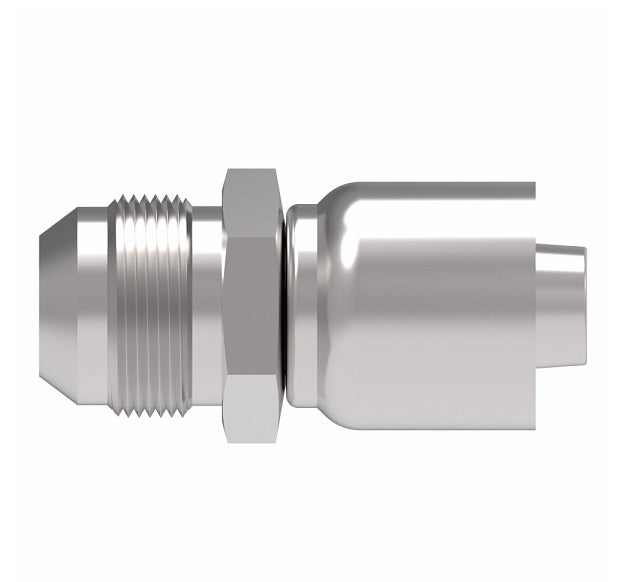

1GA12MJ10 Aeroquip by Danfoss | 1 & 2 Wire OTC Male JIC 37° (MJ) Crimp Fitting | -12 Male JIC 37° x -10 Hose Barb | Steel

1GA12MJ10 Aeroquip by Danfoss | 1 & 2 Wire OTC Male JIC 37° (MJ) Crimp Fitting | -12 Male JIC 37° x -10 Hose Barb | Steel

Name: 1GA12MJ10 Aeroquip by Danfoss | 1 & 2 Wire OTC Male JIC 37° (MJ) Crimp Fitting | -12 Male JIC 37° x -10 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1GA12MJ10 Danfoss
Price: 17.4 USD
Availability: InStock

$17.40 - $17.40

$17.40

$17.40 - $17.40

$17.40

Aeroquip® by Danfoss
1 & 2 Wire Global OTC Male JIC 37° Crimp Fitting (MJ) - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1GA12MJ10 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male JIC, 5/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2583 Series \| 2661 Series \| FC466 Series \| FC498 Series \| FC598 Series \| FC619 Series \| FC699 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	E&Oslash	Hex 2
1GA6MJ6	9/16-18	-06	2.12"	1.22"	0.26"	11/16"
1GA8MJ8	3/4-16	-08	2.59"	1.40"	0.38"	13/16"
1GA12MJ10	1-1/16-12	-10	2.46"	1.43"	0.50"	1-1/8"
1GA12MJ12	1-1/16-12	-12	2.94"	1.73"	0.61"	1-1/8"
