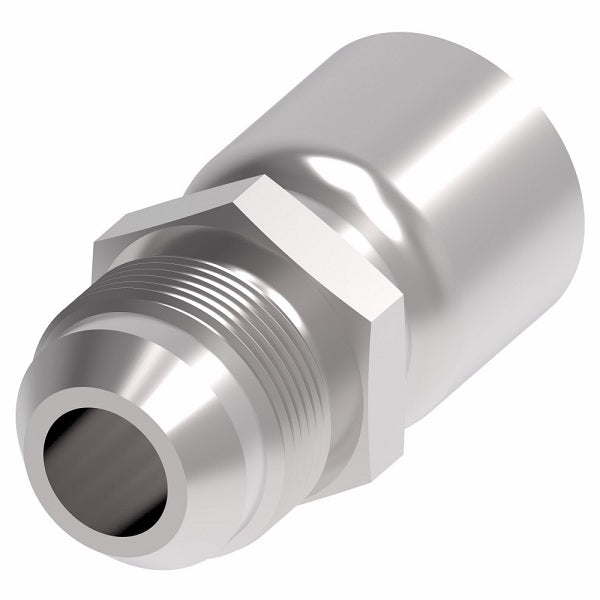

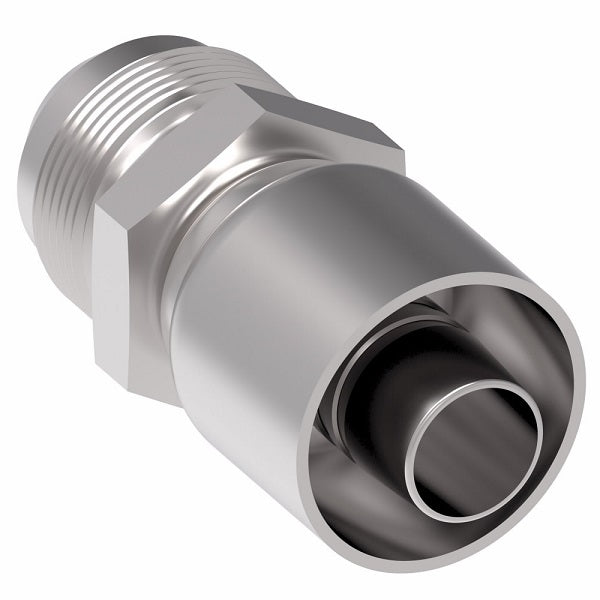

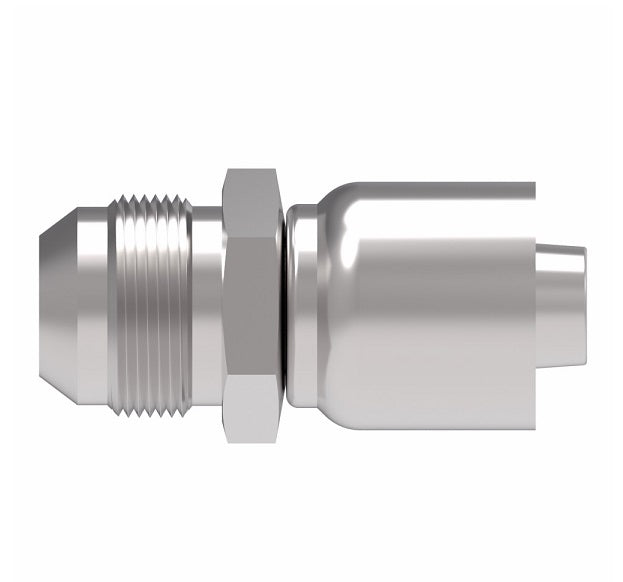

1GA6MJ6 Aeroquip by Danfoss | 1 & 2 Wire OTC Male JIC 37° (MJ) Crimp Fitting | -06 Male JIC 37° x -06 Hose Barb | Steel

1GA6MJ6 Aeroquip by Danfoss | 1 & 2 Wire OTC Male JIC 37° (MJ) Crimp Fitting | -06 Male JIC 37° x -06 Hose Barb | Steel

Name: 1GA6MJ6 Aeroquip by Danfoss | 1 & 2 Wire OTC Male JIC 37° (MJ) Crimp Fitting | -06 Male JIC 37° x -06 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1GA6MJ6 Danfoss
Price: 9.3 USD
Availability: InStock

$9.30 - $9.30

$9.30

$9.30 - $9.30

$9.30

Aeroquip® by Danfoss
1 & 2 Wire Global OTC Male JIC 37° Crimp Fitting (MJ) - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1GA6MJ6 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male JIC, 3/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2583 Series \| 2661 Series \| FC466 Series \| FC498 Series \| FC598 Series \| FC619 Series \| FC699 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	E&Oslash	Hex 2
1GA6MJ6	9/16-18	-06	2.12"	1.22"	0.26"	11/16"
1GA8MJ8	3/4-16	-08	2.59"	1.40"	0.38"	13/16"
1GA12MJ10	1-1/16-12	-10	2.46"	1.43"	0.50"	1-1/8"
1GA12MJ12	1-1/16-12	-12	2.94"	1.73"	0.61"	1-1/8"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
