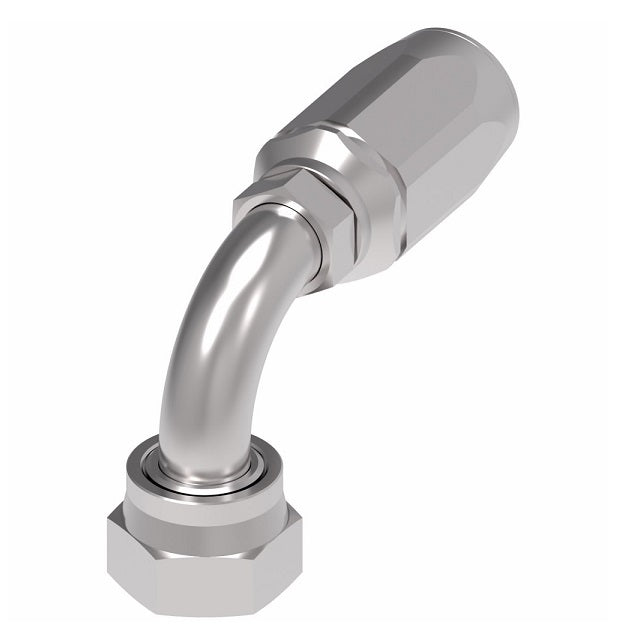

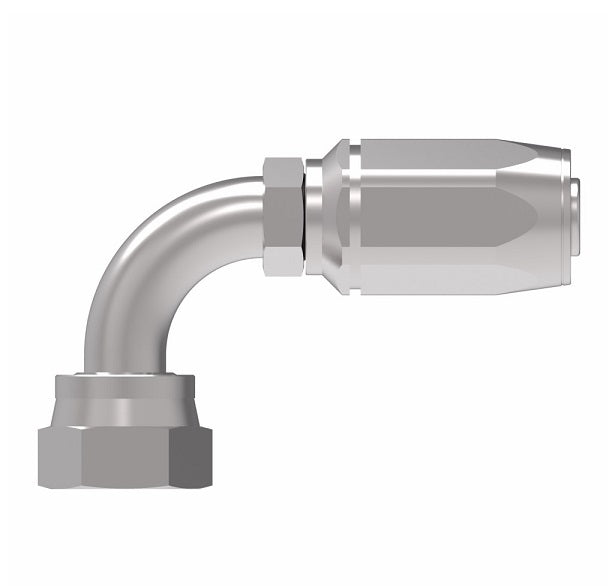

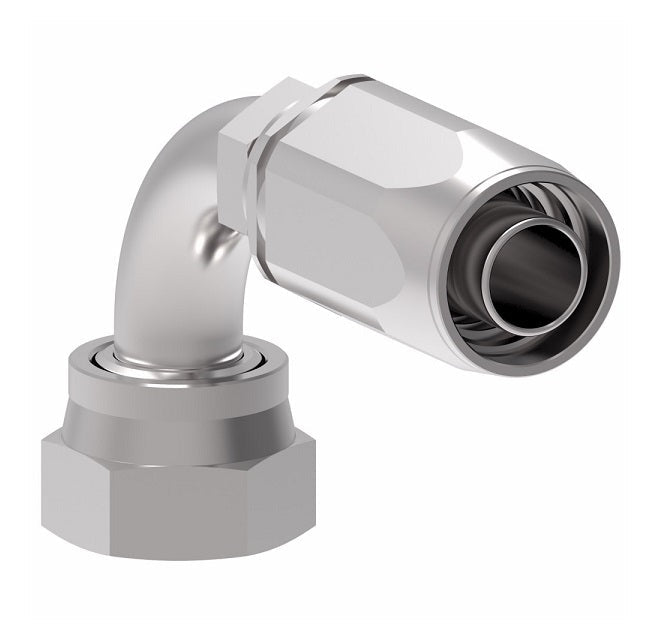

1RA6FRB6 Weatherhead by Danfoss | Female ORS Swivel 90° Elbow Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -06 Female O-Ring Face Seal Swivel x -06 Reusable Hose End | Steel
1RA6FRB6 Weatherhead by Danfoss | Female ORS Swivel 90° Elbow Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -06 Female O-Ring Face Seal Swivel x -06 Reusable Hose End | Steel
1RA6FRB6 Weatherhead by Danfoss | Female ORS Swivel 90° Elbow Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -06 Female O-Ring Face Seal Swivel x -06 Reusable Hose End | Steel
1RA6FRB6 Weatherhead by Danfoss | Female ORS Swivel 90° Elbow Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -06 Female O-Ring Face Seal Swivel x -06 Reusable Hose End | Steel

1RA6FRB6 Weatherhead by Danfoss | Female ORS Swivel 90° Elbow Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -06 Female O-Ring Face Seal Swivel x -06 Reusable Hose End | Steel

$151.82 - $151.82
$151.82
$151.82 - $151.82
$151.82

Weatherhead by Danfoss
Field Attachable Fitting for 1 Wire Braided Hose - 1R series - Female O-Ring Face Seal Swivel - 90° Elbow
Specifications for Variant SKU: 1RA6FRB6 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Female O-Ring Face Seal, 3/8in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H180 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number
Steel 		Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash H
1RA4FRB4 FJ8734-0404S 1RA4 9/16-18 -04 2.32" 1.28" 0.17" 0.82"
1RA6FRB6 FJ8734-0606S 1RA6 11/16-16 -06 2.65" 1.52" 0.26" 0.90"
- FJ8734-0808S 1RA8 13/16-16 -08 3.01" 1.54" 0.38" 1.15"
- FJ8734-1212S 1RA12 1-3/16-12 -12 4.05" 2.45" 0.61" 1.88"
- FJ8734-1616S 1RA16 1-7/16-12 -16 4.69" 2.57" 0.81" 2.21"
<-
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
