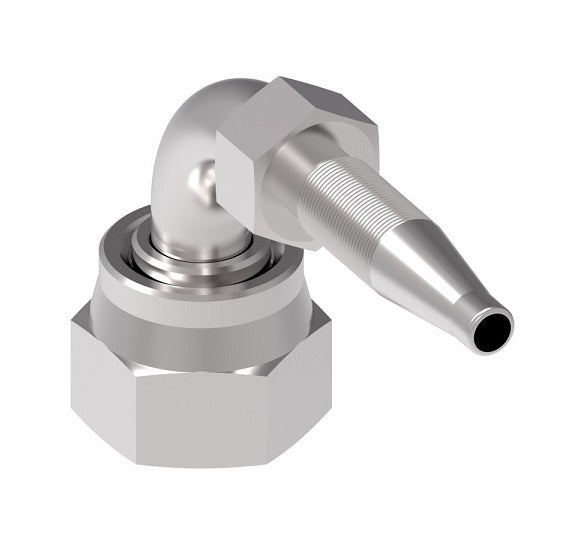

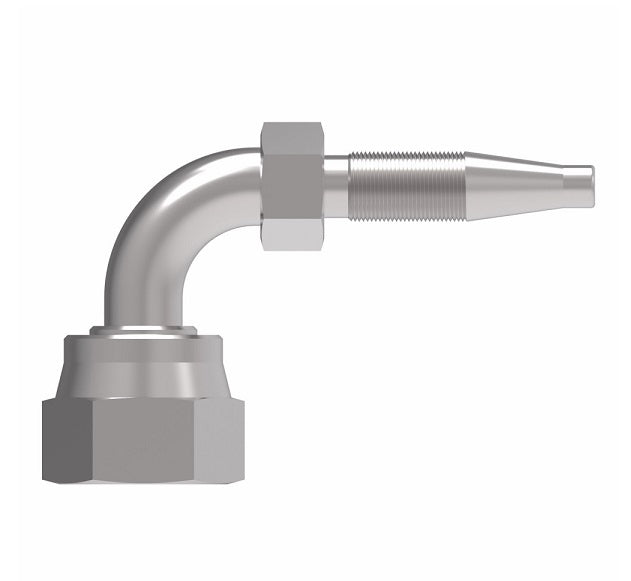

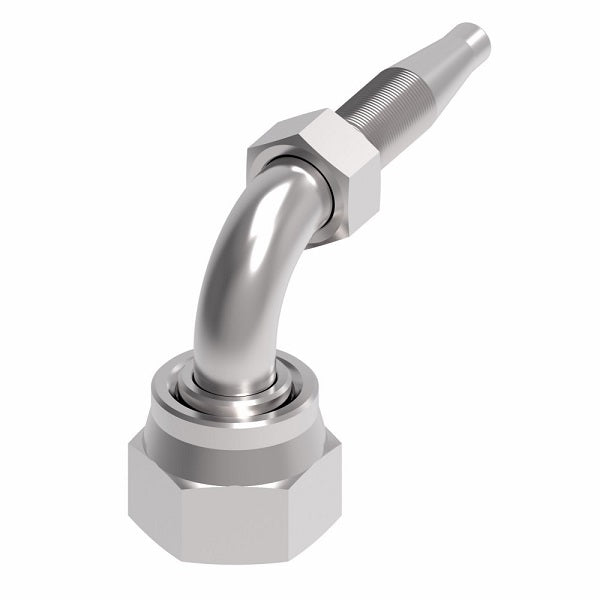

FJ8734-1212S Weatherhead by Danfoss | Female ORS Swivel 90° Elbow Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel
FJ8734-1212S Weatherhead by Danfoss | Female ORS Swivel 90° Elbow Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel
FJ8734-1212S Weatherhead by Danfoss | Female ORS Swivel 90° Elbow Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel
FJ8734-1212S Weatherhead by Danfoss | Female ORS Swivel 90° Elbow Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel

FJ8734-1212S Weatherhead by Danfoss | Female ORS Swivel 90° Elbow Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel

$166.04 - $166.04
$166.04
$166.04 - $166.04
$166.04

Weatherhead by Danfoss
Field Attachable Fitting for 1 Wire Braided Hose - 1R series - Female O-Ring Face Seal Swivel - 90° Elbow
Specifications for Variant SKU: FJ8734-1212S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Female O-Ring Face Seal, 3/4in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H180 Series  |   H280 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number
Steel 		Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash H
1RA4FRB4 FJ8734-0404S 1RA4 9/16-18 -04 2.32" 1.28" 0.17" 0.82"
1RA6FRB6 FJ8734-0606S 1RA6 11/16-16 -06 2.65" 1.52" 0.26" 0.90"
- FJ8734-0808S 1RA8 13/16-16 -08 3.01" 1.54" 0.38" 1.15"
- FJ8734-1212S 1RA12 1-3/16-12 -12 4.05" 2.45" 0.61" 1.88"
- FJ8734-1616S 1RA16 1-7/16-12 -16 4.69" 2.57" 0.81" 2.21"
<-
