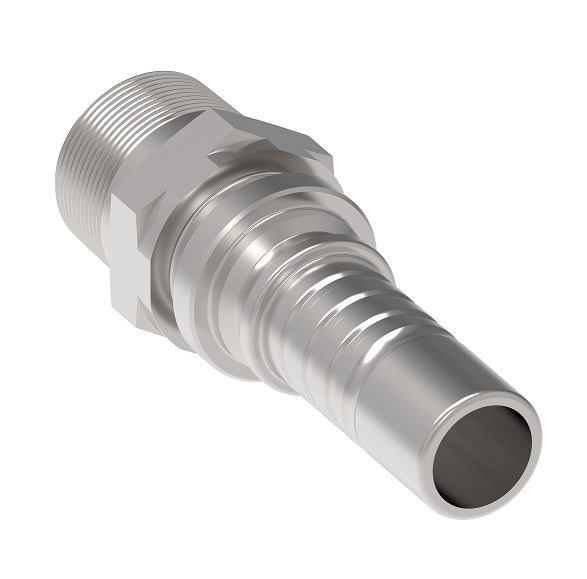

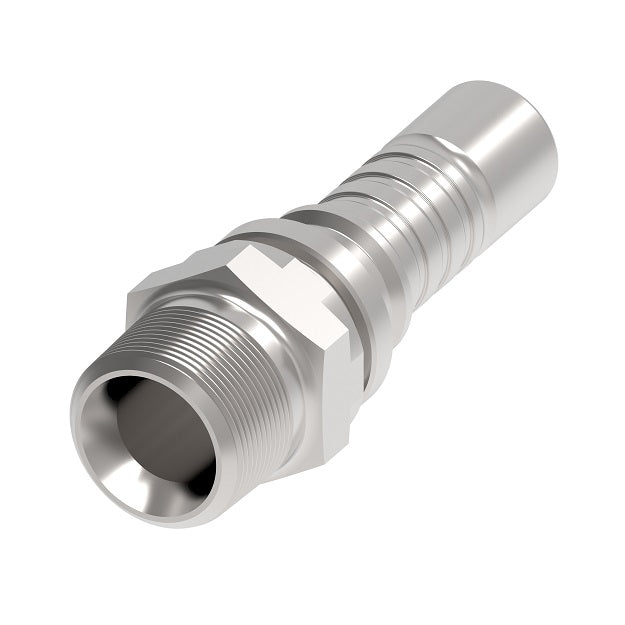

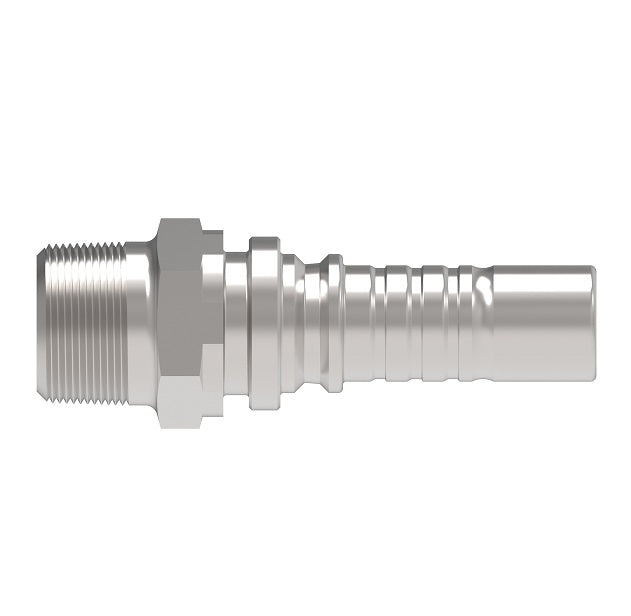

1W12MP12 Aeroquip by Danfoss | Male Pipe Crimp Fitting for Four Spiral Hydraulic Hose | -12 Male NPTF x -12 Hose Barb | Steel

1W12MP12 Aeroquip by Danfoss | Male Pipe Crimp Fitting for Four Spiral Hydraulic Hose | -12 Male NPTF x -12 Hose Barb | Steel

Name: 1W12MP12 Aeroquip by Danfoss | Male Pipe Crimp Fitting for Four Spiral Hydraulic Hose | -12 Male NPTF x -12 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1W12MP12 Danfoss
Price: 39.54 USD
Availability: InStock

$39.54 - $39.54

$39.54

$39.54 - $39.54

$39.54

Aeroquip by Danfoss
Crimp Fitting for Four Spiral Hydraulic Hose - Male Pipe - Straight

Quantity

Specifications for Variant SKU: 1W12MP12 Danfoss
Brand:	Aeroquip
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male NPTF, 3/4in Hose Barb
Material(s):	Carbon Steel
Compatible with the following Series:	EC910 Series

Features:
Nipple with wire trap area.
Material:
Carbon Steel.
Compatible Hose:
EC910


Steel Part Number	Dash Size	DN	Hose Dash Size	Thread	A	D	EØ	Hex 1
1W12MP12	-12	19	-12	3/4-14	3.63"	1.58"	0.59"	30mm
1W16MP16	-16	25	-16	1-11-1/2	4.51"	1.88"	0.77"	36mm

* Requires separate installation of 2 ea. p/n 05.071-27.30x2.40 O-rings (must be ordered separately). O-rings must be installed with PAG oil (only) prior to crimping.

Note: Drawings may differ from actual parts.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
