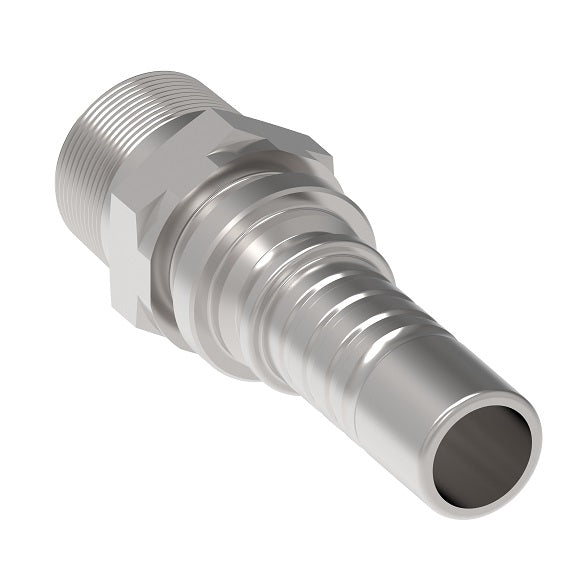

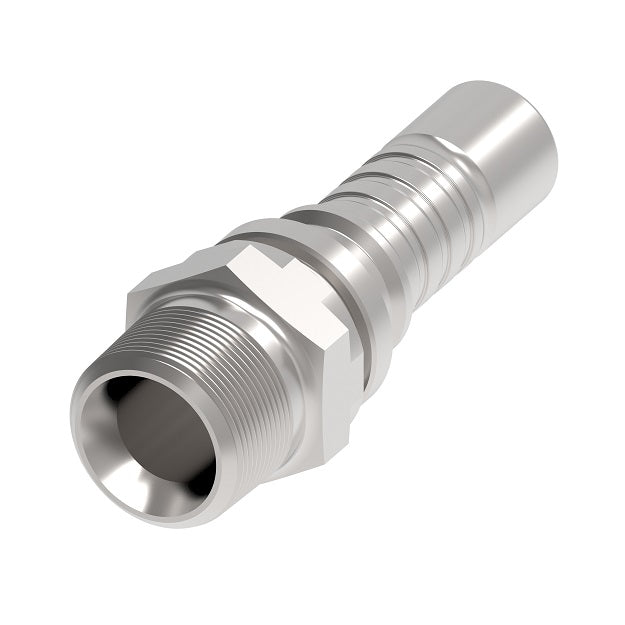

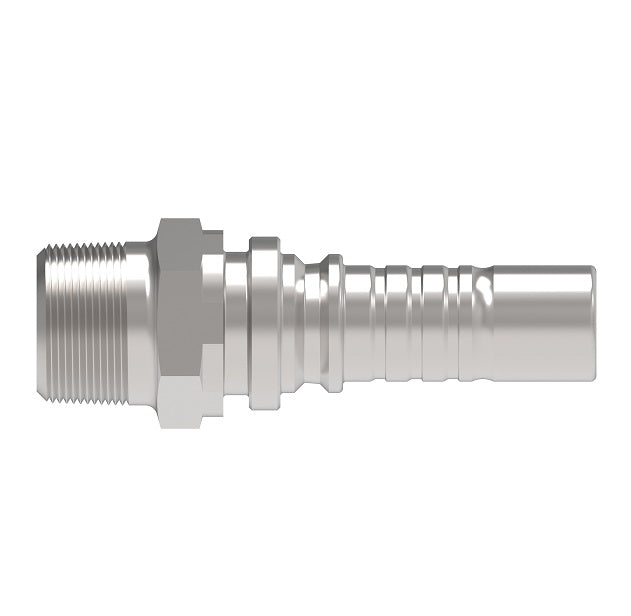

1W16MP16 Aeroquip by Danfoss | Male Pipe Crimp Fitting for Four Spiral Hydraulic Hose | -16 Male NPTF x -16 Hose Barb | Steel

1W16MP16 Aeroquip by Danfoss | Male Pipe Crimp Fitting for Four Spiral Hydraulic Hose | -16 Male NPTF x -16 Hose Barb | Steel

Name: 1W16MP16 Aeroquip by Danfoss | Male Pipe Crimp Fitting for Four Spiral Hydraulic Hose | -16 Male NPTF x -16 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1W16MP16 Danfoss
Price: 43.87 USD
Availability: InStock

$43.87 - $43.87

$43.87

$43.87 - $43.87

$43.87

Aeroquip by Danfoss
Crimp Fitting for Four Spiral Hydraulic Hose - Male Pipe - Straight

Quantity

Specifications for Variant SKU: 1W16MP16 Danfoss
Brand:	Aeroquip
Shape (Orientation):	Straight
Ends Configuration:	1in Male NPTF, 1in Hose Barb
Material(s):	Carbon Steel
Compatible with the following Series:	EC910 Series

Features:
Nipple with wire trap area.
Material:
Carbon Steel.
Compatible Hose:
EC910


Steel Part Number	Dash Size	DN	Hose Dash Size	Thread	A	D	EØ	Hex 1
1W12MP12	-12	19	-12	3/4-14	3.63"	1.58"	0.59"	30mm
1W16MP16	-16	25	-16	1-11-1/2	4.51"	1.88"	0.77"	36mm

* Requires separate installation of 2 ea. p/n 05.071-27.30x2.40 O-rings (must be ordered separately). O-rings must be installed with PAG oil (only) prior to crimping.

Note: Drawings may differ from actual parts.
