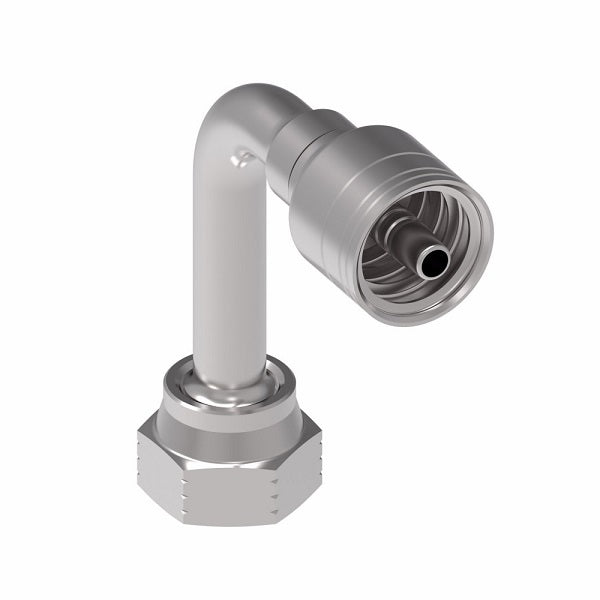

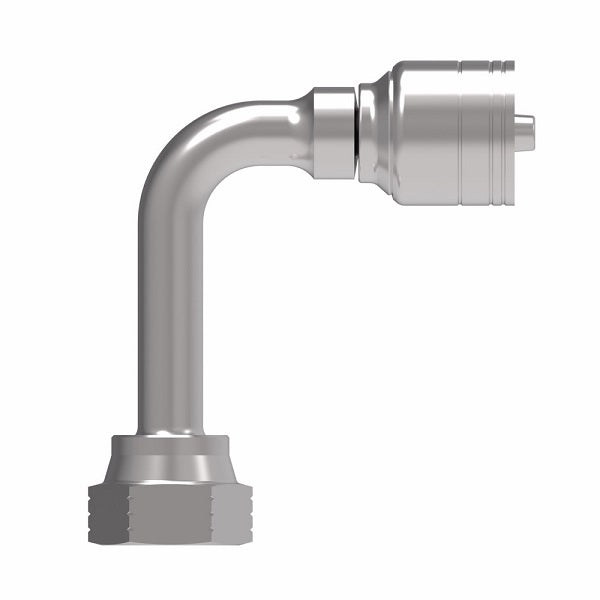

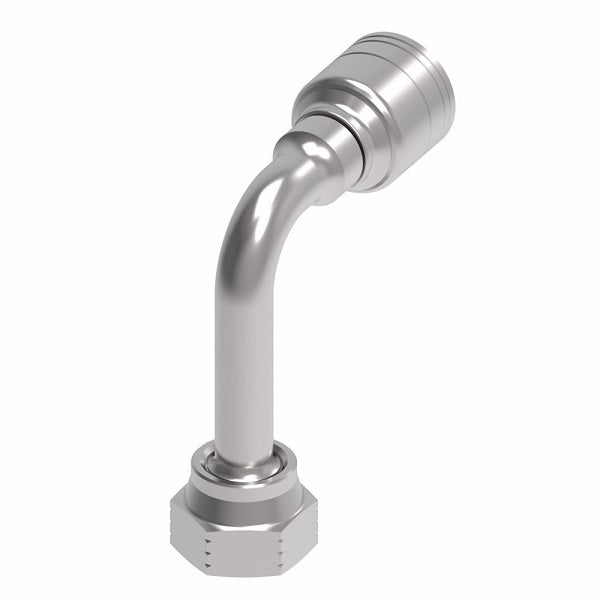

1A10FRC10 Aeroquip by Danfoss | Female ORS Swivel Long Drop 90° Elbow (FRC) Crimp Fitting | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel

1A10FRC10 Aeroquip by Danfoss | Female ORS Swivel Long Drop 90° Elbow (FRC) Crimp Fitting | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel

Name: 1A10FRC10 Aeroquip by Danfoss | Female ORS Swivel Long Drop 90° Elbow (FRC) Crimp Fitting | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A10FRC10 Danfoss
Price: 59.8 USD
Availability: InStock

$59.80 - $59.80

$59.80

$59.80 - $59.80

$59.80

Aeroquip® by Danfoss
Female O-Ring Face Seal Swivel Long Drop (FRC) Crimp Fitting - 90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1A10FRC10 Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	5/8in Female O-Ring Face Seal, 5/8in Hose Barb
Material(s):	Steel
Special Properties:	Long Drop, Swivel

Technical Info:
Crimp Fitting Socket Data.PDF

Steel Part Number	Zinc-Nickel Plated Steel Part Number	Hose Dash Size	End Size	Compatible Hose ID	Inside Diameter	Length
-	1A6FRC6TZ	-06
-	1A8FRC8TZ	-08	13/16"	0.50"	0.35"	3.16"
1A10FRC10	-	-10	1"	0.625"	0.45"	3.69"
1A12FRC12	-	-12	1-3/16"	0.75"	0.58"	4.33"
1A20FRC20	-	-20	1-11/16"	1.25"	1.02"	6.28"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
