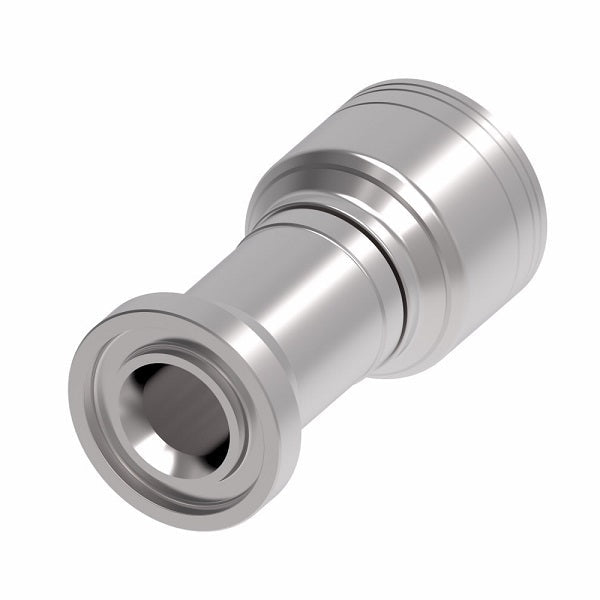

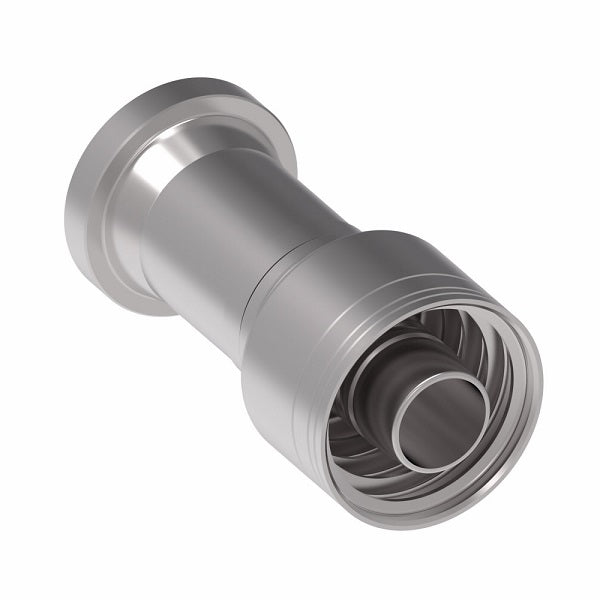

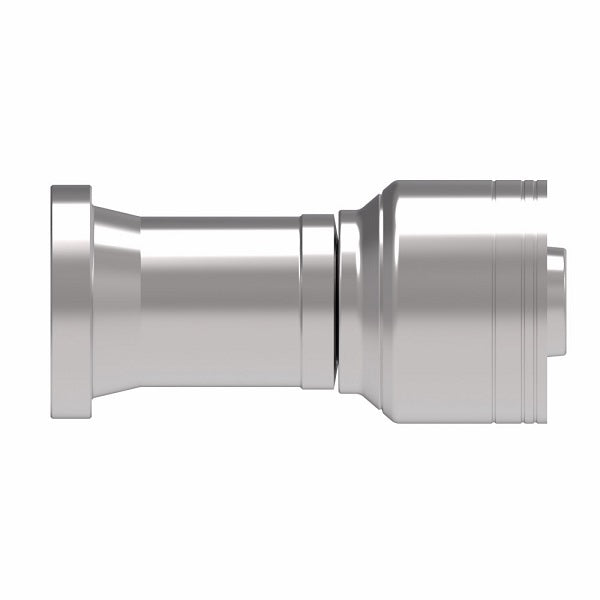

1A16FL16 Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange (FL) Crimp Fitting | -16 Code 61 Split Flange x -16 Hose Barb | Steel

1A16FL16 Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange (FL) Crimp Fitting | -16 Code 61 Split Flange x -16 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$576.80 - $576.80

$576.80

$576.80 - $576.80

$576.80

Aeroquip® by Danfoss
1 & 2 Wire TTC SAE Code 61 Split Flange Crimp Fitting (FL) - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1A16FL16 Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	1in Code 61 Flange, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Zinc-Nickel Plated Steel Part Number	Thread Flange Head Dia. K&Oslash	Hose Size	A	D	E&Oslash
1A8FL8	-	1.19"	-08	3.13"	2.06"	0.38"
1A12FL8	-	1.50"	-08	3.17"	2.10"	0.38"
1A12FL10	-	1.50"	-10	3.13"	2.10"	0.50"
1A12FL12	-	1.50"	-12	3.31"	2.12"	0.61"
1A16FL12	-	1.75"	-12	3.31"	2.12"	0.61"
1A20FL12	-	2.00"	-12	3.61"	2.42"	0.61"
1A16FL16	-	1.75"	-16	3.49"	2.14"	0.82"
1A20FL16	-	2.00"	-16	3.79"	2.44"	0.82"
1A16FL20	-	1.75"	-20	3.94"	2.21"	0.82"
1A20FL20	1A20FL20TZ	2.00"	-20	4.24"	2.51"	1.05"
1A24FL20	-	2.38"	-20	4.27"	2.54"	1.05"
1A32FL20	-	2.81"	-20	4.27"	2.54"	1.01"
1A20FL24	-	2.00"	-24	4.37"	2.55"	1.05"
1A24FL24	-	2.38"	-24	4.40"	2.58"	1.26"
1A32FL24	-	2.81"	-24	4.40"	2.58"	1.19"
1A32FL32	-	2.81"	-32	4.61"	2.63"	1.75"
1A40FL32	-	3.31"	-32	4.60"	2.63"	1.75"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
