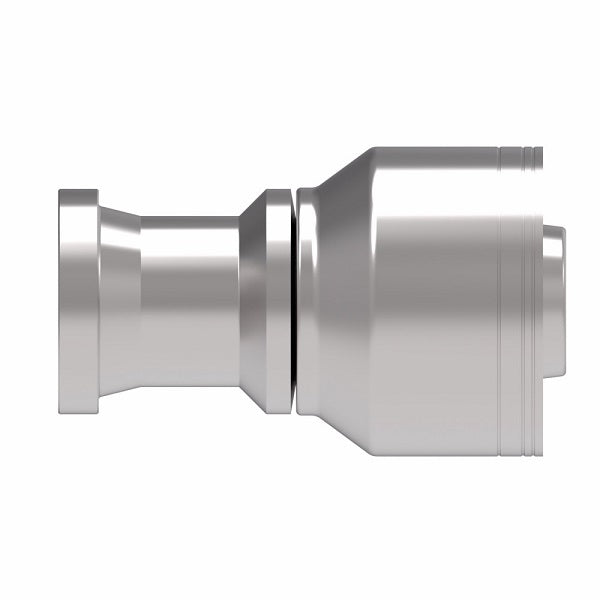

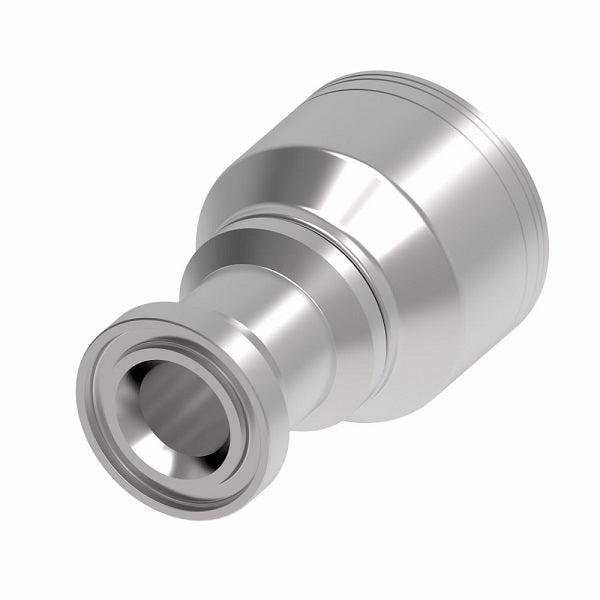

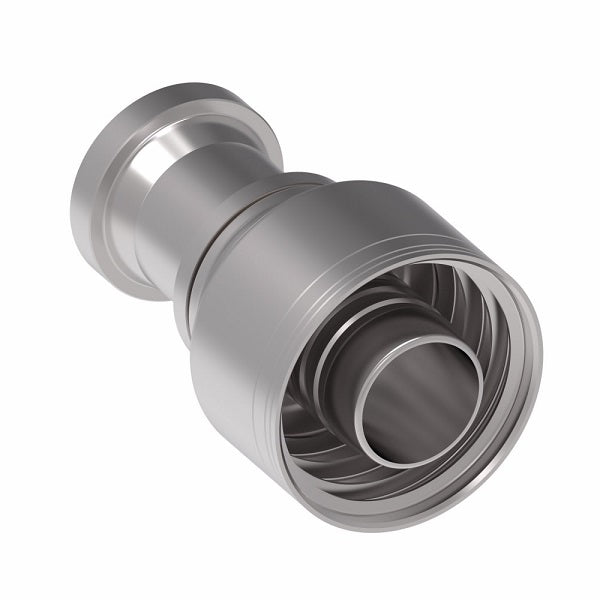

1A20FL20TZ Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange (FL) Crimp Fitting | -20 Code 61 Split Flange x -20 Hose Barb | Zinc-Nickel Plated Steel | Pack of 10

1A20FL20TZ Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange (FL) Crimp Fitting | -20 Code 61 Split Flange x -20 Hose Barb | Zinc-Nickel Plated Steel | Pack of 10

Minimum Order Quantity: 10 Units

$1,172.80 - $1,172.80

$1,172.80

$1,172.80 - $1,172.80

$1,172.80

Aeroquip® by Danfoss
1 & 2 Wire TTC SAE Code 61 Split Flange Crimp Fitting (FL) - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1A20FL20TZ Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Code 61 Flange, 1-1/4in Hose Barb
Material(s):	Zinc-Nickel Plated Steel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Zinc-Nickel Plated Steel Part Number	Thread Flange Head Dia. K&Oslash	Hose Size	A	D	E&Oslash
1A8FL8	-	1.19"	-08	3.13"	2.06"	0.38"
1A12FL8	-	1.50"	-08	3.17"	2.10"	0.38"
1A12FL10	-	1.50"	-10	3.13"	2.10"	0.50"
1A12FL12	-	1.50"	-12	3.31"	2.12"	0.61"
1A16FL12	-	1.75"	-12	3.31"	2.12"	0.61"
1A20FL12	-	2.00"	-12	3.61"	2.42"	0.61"
1A16FL16	-	1.75"	-16	3.49"	2.14"	0.82"
1A20FL16	-	2.00"	-16	3.79"	2.44"	0.82"
1A16FL20	-	1.75"	-20	3.94"	2.21"	0.82"
1A20FL20	1A20FL20TZ	2.00"	-20	4.24"	2.51"	1.05"
1A24FL20	-	2.38"	-20	4.27"	2.54"	1.05"
1A32FL20	-	2.81"	-20	4.27"	2.54"	1.01"
1A20FL24	-	2.00"	-24	4.37"	2.55"	1.05"
1A24FL24	-	2.38"	-24	4.40"	2.58"	1.26"
1A32FL24	-	2.81"	-24	4.40"	2.58"	1.19"
1A32FL32	-	2.81"	-32	4.61"	2.63"	1.75"
1A40FL32	-	3.31"	-32	4.60"	2.63"	1.75"
