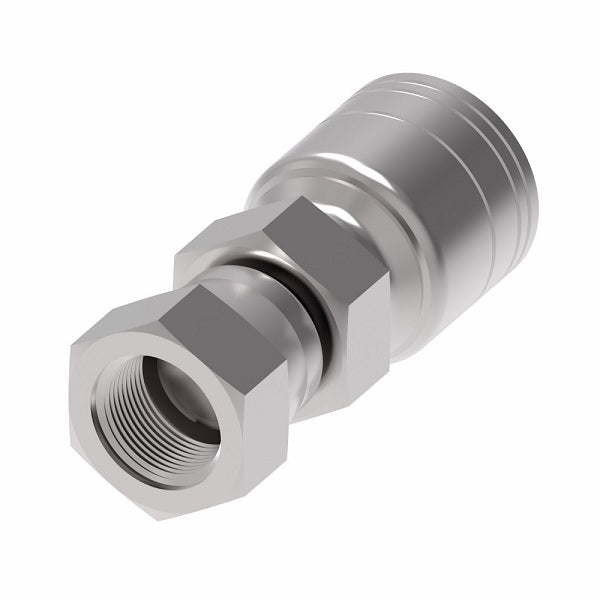

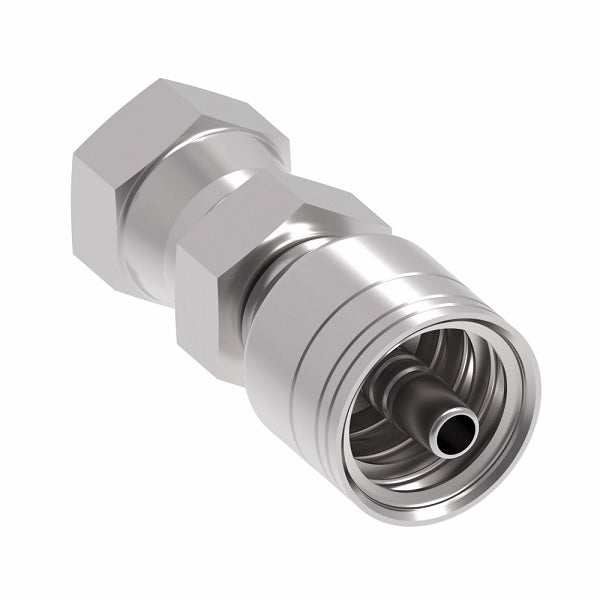

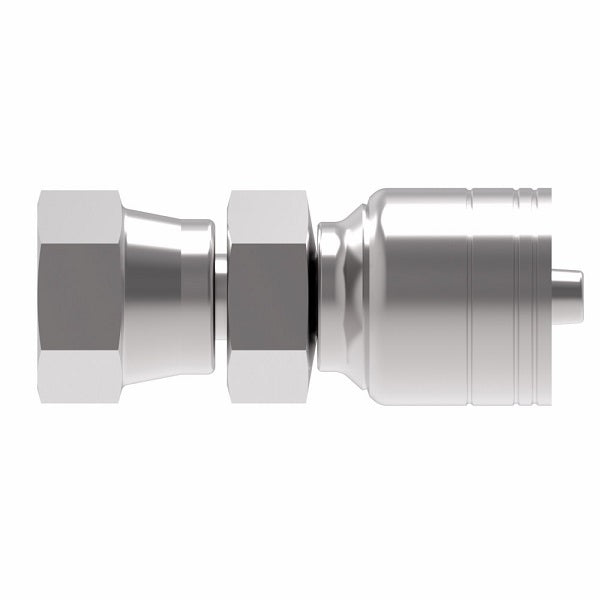

1A4KF4 Aeroquip by Danfoss | 1 & 2 Wire TTC Female Komatsu Swivel (KF) Crimp Fitting | -04 Female Komatsu Swivel x -04 Hose Barb | Steel

1A4KF4 Aeroquip by Danfoss | 1 & 2 Wire TTC Female Komatsu Swivel (KF) Crimp Fitting | -04 Female Komatsu Swivel x -04 Hose Barb | Steel

Name: 1A4KF4 Aeroquip by Danfoss | 1 & 2 Wire TTC Female Komatsu Swivel (KF) Crimp Fitting | -04 Female Komatsu Swivel x -04 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A4KF4 Danfoss
Price: 21.34 USD
Availability: InStock

$21.34 - $21.34

$21.34

$21.34 - $21.34

$21.34

Aeroquip® by Danfoss
1 & 2 Wire TTC Female Komatsu Swivel Crimp Fitting (KF) - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1A4KF4 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female Komatsu, 1/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	E&Oslash	Hex 1	Hex 2
1A4KF4	M14 x 1.5	-04	2.21"	1.29"	1.66"	0.75"	0.75"
1A6KF6	M18 x 1.5	-06	2.38"	1.38"	0.26"	0.94"	0.87"
1A8KF8	M22 x 1.5	-08	2.64"	1.57"	0.38"	1.06"	1.06"
1A10KF10	M24 x 1.5	-10	2.84"	1.81"	0.49"	1.19"	1.18"
1A10KF12	M24 x 1.5	-12	3.01"	1.83"	0.49"	1.26"	1.18"
1A12KF12	M30 x 1.5	-12	3.21"	2.02"	0.61"	1.42"	1.42"
1A16KF16	M33 x 1.5	-16	3.60"	2.24"	0.81"	1.61"	1.61"
1A20KF20	M36 x 1.5	-20	4.46"	2.73"	1.05"	1.81"	1.81"
