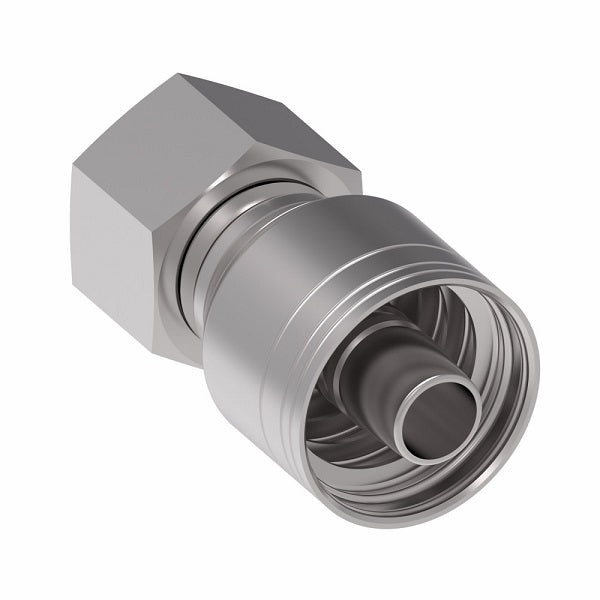

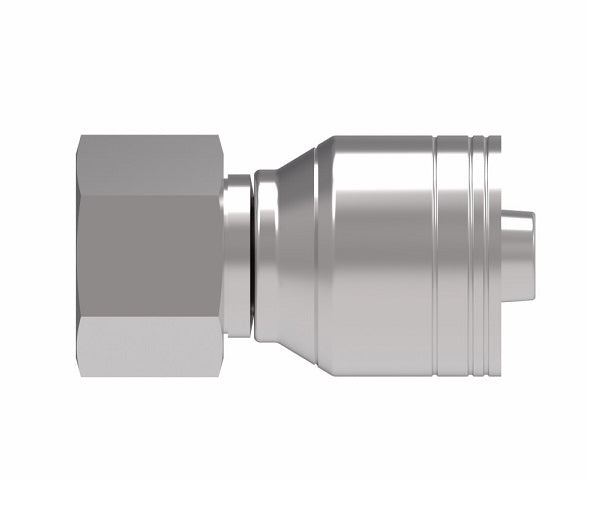

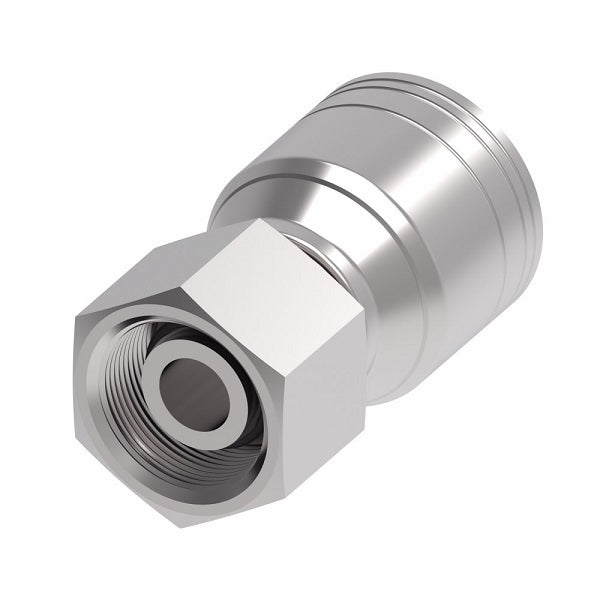

1A8DS4 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty (DS) Crimp Fitting | S12 Female DKO/DIN x -04 Hose Barb | Steel
1A8DS4 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty (DS) Crimp Fitting | S12 Female DKO/DIN x -04 Hose Barb | Steel
1A8DS4 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty (DS) Crimp Fitting | S12 Female DKO/DIN x -04 Hose Barb | Steel
1A8DS4 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty (DS) Crimp Fitting | S12 Female DKO/DIN x -04 Hose Barb | Steel

1A8DS4 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty (DS) Crimp Fitting | S12 Female DKO/DIN x -04 Hose Barb | Steel

$44.58 - $44.58
$44.58
$44.58 - $44.58
$44.58

Aeroquip® by Danfoss
1 & 2 Wire TTC DKO/DIN Female Swivel, Heavy Duty Crimp Fitting (DS) - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1A8DS4 Danfoss
Shape (Orientation): Straight
Ends Configuration: S12 Female DIN, 1/4in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Thread
T		 Tube OD Hose Size A D E&Oslash Hex 1
1A5DS4 M16 x 1.5 8 -04 1.95" 1.03" 0.16" 0.75"
1A6DS4 M18 X 1.5 10 -04 2.00" 1.08" 0.16" 0.87"
1A8DS4 M20 X 1.5 12 -04 2.00" 1.08" 0.17" 0.94"
1A6DS6 M18 X 1.5 10 -06 2.08" 1.09" 0.26" 1.06"
1A8DS6 M20 x 1.5 12 -06 2.12" 1.12" 0.26" 0.94"
1A10DS6 M22 x 1.5 14 -06 2.24" 1.24" 0.26" 1.06"
1A10DS8 M22 x 1.5 14 -08 2.17" 1.00" 0.38" 1.06"
1A12DS8 M24 x 1.5 16 -08 2.46" 1.29" 0.38" 1.18"
1A16DS10 M30 x 2 20 -10 2.63" 1.48" 0.50" 1.42"
1A16DS12 M30 x 2 20 -12 2.37" 1.19" 0.55" 1.42"
1A20DS12 M36 x 2 25 -12 2.83" 1.64" 0.61" 1.81"
1A25DS16 M42 x 2 30 -16 3.09" 1.44" 0.81" 1.97"
1A32DS20 M52 x 2 38 -20 3.69" 1.96" 1.05" 2.36"
