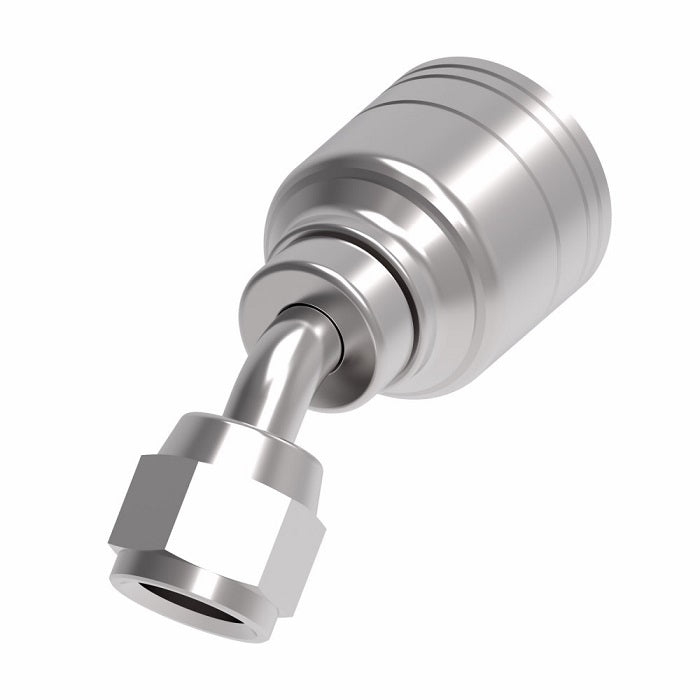

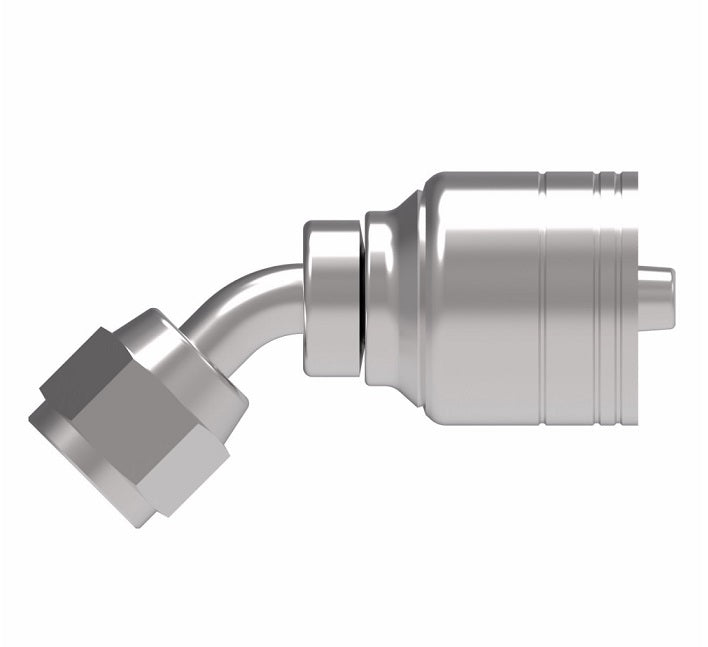

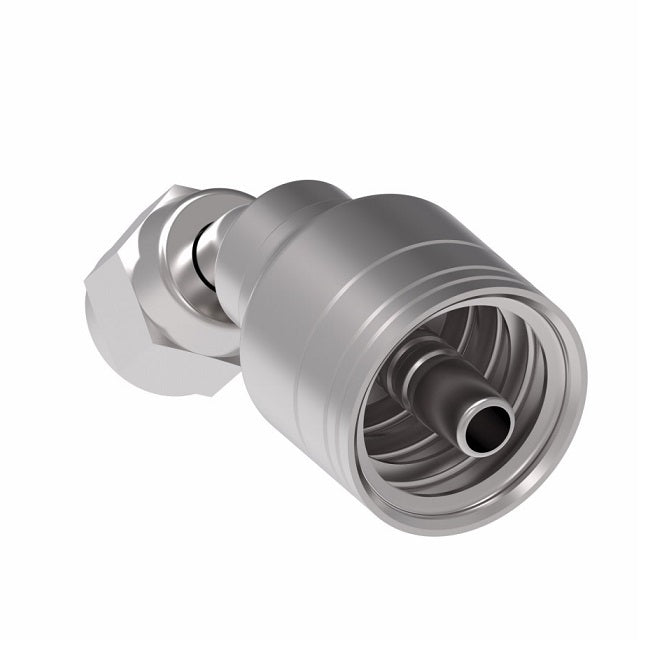

1AA10FJA8 Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel 45° Elbow (FJA) Crimp Fitting | -10 Female JIC 37° Swivel x -08 Hose Barb | Steel

Name: 1AA10FJA8 Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel 45° Elbow (FJA) Crimp Fitting | -10 Female JIC 37° Swivel x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1AA10FJA8 Danfoss
Price: 32.17 USD
Availability: InStock

$32.17 - $32.17

$32.17

$32.17 - $32.17

$32.17

Aeroquip® by Danfoss
1 & 2 Wire Global TTC Female JIC 37° Swivel Crimp Fitting (FJA) - 45° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1AA10FJA8 Danfoss
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	45 Degree
Ends Configuration:	5/8in Female JIC, 1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Zinc Nickel Plated Steel Part Number	Thread	Hose Size	A	D	E&Oslash	H	Hex 1
1AA4FJA4*	1AA4FJA4TZ	7/16-20	-04	1.78"	0.97"	0.17"	0.33"	9/16"
1AA5FJA4*	-	1/2-20	-04	2.04"	1.12"	0.17"	0.37"	5/8"
1AA6FJA4	1AA6FJA4TZ	9/16-18	-04	2.09"	1.17"	0.17"	0.39"	11/16"
1AA4FJA6	-	7/16-20	-06	1.75"	0.92"	0.16"	0.33"	9/16"
1AA6FJA6	1AA6FJA6TZ	9/16-18	-06	2.31"	1.31"	0.24"	0.39"	11/16"
1AA8FJA6*	-	3/4-16	-06	2.65"	1.66"	0.26"	0.55"	7/8"
1AA8FJA8*	1AA8FJA8TZ	3/4-16	-08	2.82"	1.65"	0.37"	0.55"	7/8"
1AA10FJA8*	-	7/8-14	-08	3.03"	1.86"	0.38"	0.59"	1"
1AA10FJA10*	-	7/8-14	-10	2.82"	1.79"	0.46"	0.63"	1"
1AA12FJA10	-	1-1/16-12	-10	3.38"	2.22"	0.50"	0.78"	1-1/4"
1AA12FJA12	1AA12FJA12TZ	1-1/16-12	-12	3.43"	2.24"	0.58"	0.78"	1-1/4"
1AA16FJA12	-	1-5/16-12	-16	3.74"	2.39"	0.76"	1.07"	1-1/2"
1AA16FJA16	1AA16FJA16TZ	1-5/16-12	-16	3.74"	3.01"	0.81"	1.07"	1-1/2"
1AA20FJA20	1AA20FJA20TZ	1-5/8-12	-20	4.44"	2.71"	1.01"	1.22"	2"
1AA24FJA24	-	1-7/8-12	-24	-	-	-	-	2.25"

* Swivel nuts are universal for both SAE 37° and SAE 45° connections.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
