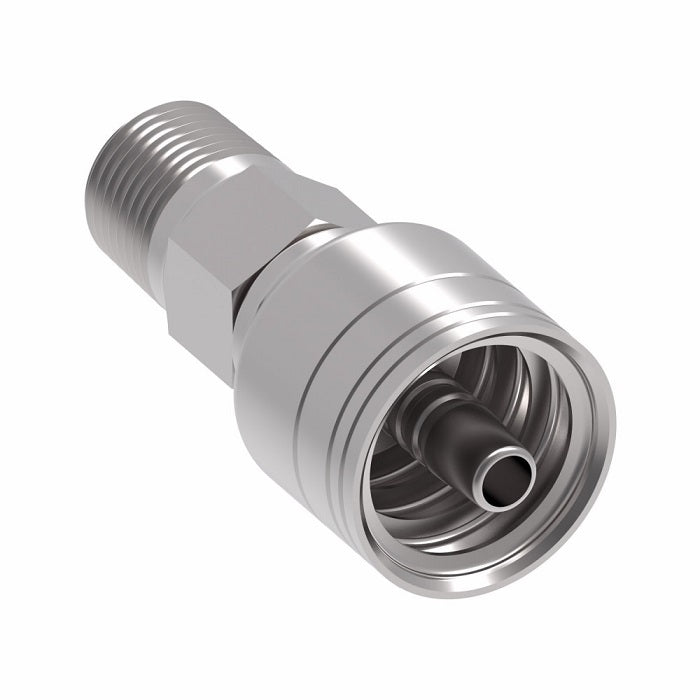

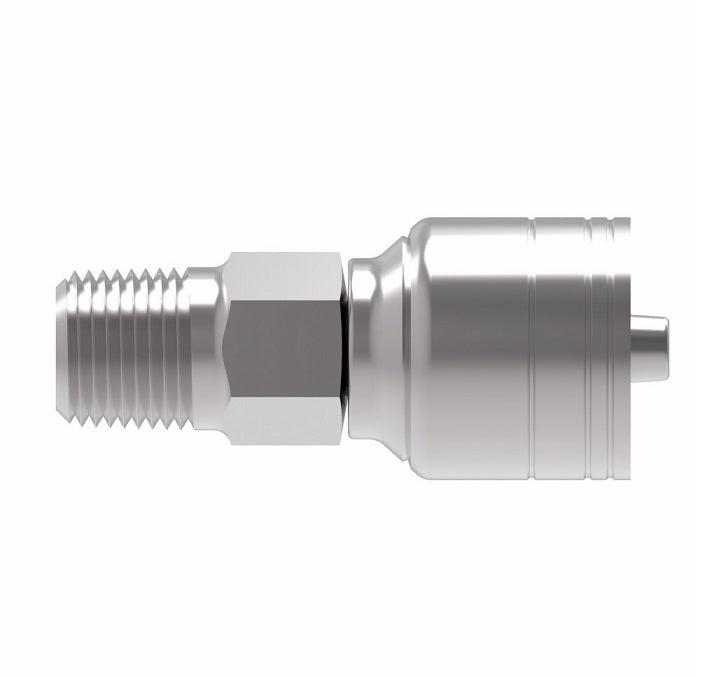

1AA12MP8 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Pipe Crimp Fitting (MP) | -12 Male Pipe x -08 Hose Barb |Steel

1AA12MP8 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Pipe Crimp Fitting (MP) | -12 Male Pipe x -08 Hose Barb |Steel

Name: 1AA12MP8 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Pipe Crimp Fitting (MP) | -12 Male Pipe x -08 Hose Barb |Steel
Brand: Danfoss/Eaton
SKU: 1AA12MP8 Danfoss
Price: 14.66 USD
Availability: InStock

$14.66 - $14.66

$14.66

$14.66 - $14.66

$14.66

Aeroquip® by Danfoss
1 & 2 Wire Global TTC Male Pipe Crimp Fitting (MP) - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1AA12MP8 Danfoss
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male NPT, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Stainless Steel Part Number	Zinc-Nickel Plated Steel Part Number	Thread	Hose Size	A	D	EØ	Hex 2
1AA2MP4	-	-	1/8-27	-04	1.84"	0.92"	0.17"	9/16"
1AA4MP4	1AA4MP4C	1AA4MP4TZ	1/4-18	-04	2.06"	1.14"	0.17"	9/16"
1AA6MP4	-	-	3/8-18	-04	1.90"	0.98"	0.17"	11/16"
1AA4MP6	-	-	1/4-18	-06	2.02"	1.18"	0.26"	11/16"
1AA6MP6	1AA6MP6C	-	3/8-18	-06	2.17"	1.27"	0.26"	11/16"
1AA8MP4	-	-	1/2-14	-04	2.02"	1.23"	0.17"	7/8"
1AA8MP6	-	-	1/2-14	-06	2.11"	1.28"	0.26"	7/8"
1AA4MP8	-	-	1/4-18	-08	2.30"	1.23"	0.30"	13/16"
1AA6MP8	-	-	3/8-18	-08	2.39"	1.32"	0.38"	13/16"
1AA8MP8	1AA8MP8C	-	1/2-14	-08	2.80"	1.60"	0.38"	7/8"
1AA12MP8	-	-	3/4-14	-08	2.46"	1.39"	0.38"	1-1/16"
1AA6MP10	-	-	3/8-18	-10	2.49"	1.33"	0.42"	15/16"
1AA8MP10	-	-	1/2-14	-10	2.61"	1.58"	0.50"	15/16"
1AA12MP10	-	-	3/4-14	-10	2.43"	1.40"	0.50"	1-1/16"
1AA8MP12	-	-	1/2-14	-12	2.78"	1.60"	0.56"	1-1/8"
1AA12MP12	1AA12MP12C	-	3/4-14	-12	2.84"	1.65"	0.61"	1-1/8"
1AA12MP16	-	-	3/4-14	-16	3.02"	1.67"	0.76"	1-3/8"
1AA16MP12	-	-	1-11-1/2	-12	2.80"	1.61"	0.61"	1-3/8"
1AA16MP16	1AA16MP16C	-	1-11-1/2	-16	3.22"	1.86"	0.82"	1-3/8"
1AA20MP16	-	-	1-1/4 - 11-1/2	-16	3.08"	1.72"	0.82"	1-11/16"
1AA16MP20	-	-	1-11 1/2	-20	3.66"	1.93"	0.95"	1-3/4"
1AA20MP20	-	-	1-1/4 - 11-1/2	-20	3.52"	1.79"	1.05"	1-13/16"
1AA24MP24	-	-	1-1/2 - 11-1/2	-24	4.18"	2.36"	1.26"	2"
1AA32MP32	-	-	2-11-1/2	-32	4.59"	2.61"	1.75"	2-1/2"
