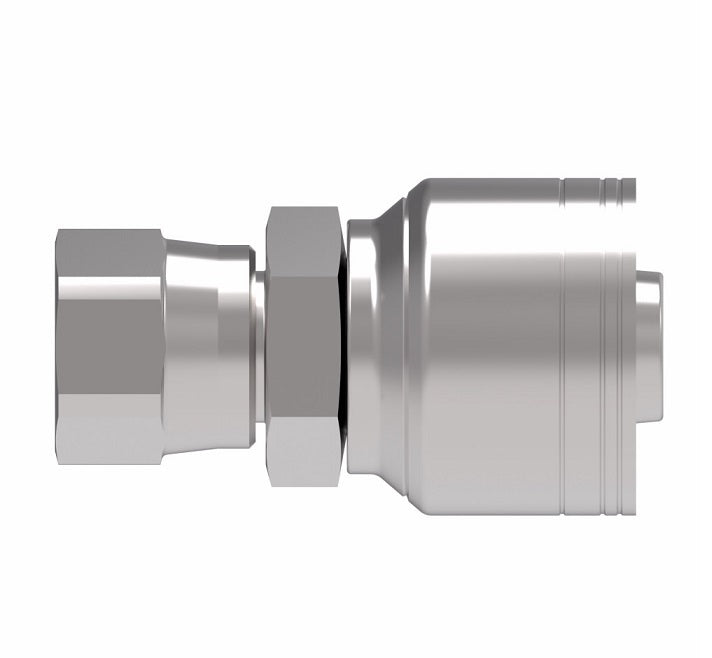

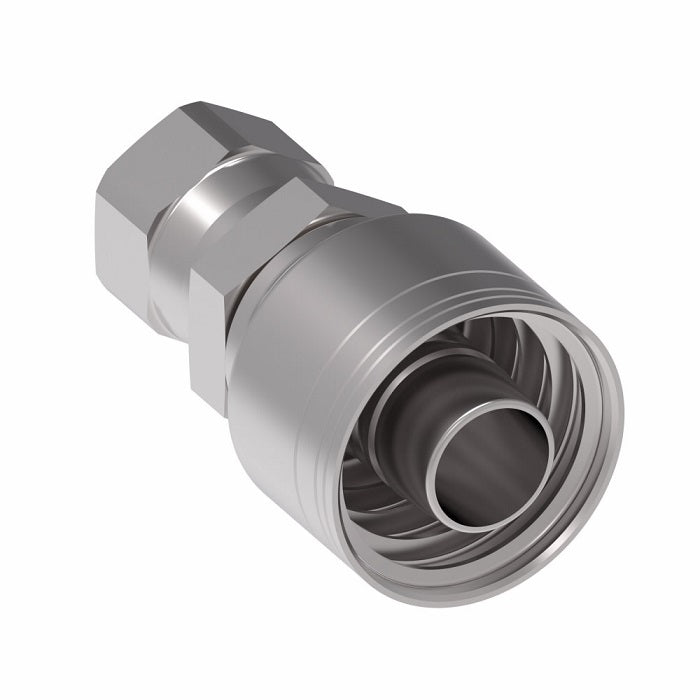

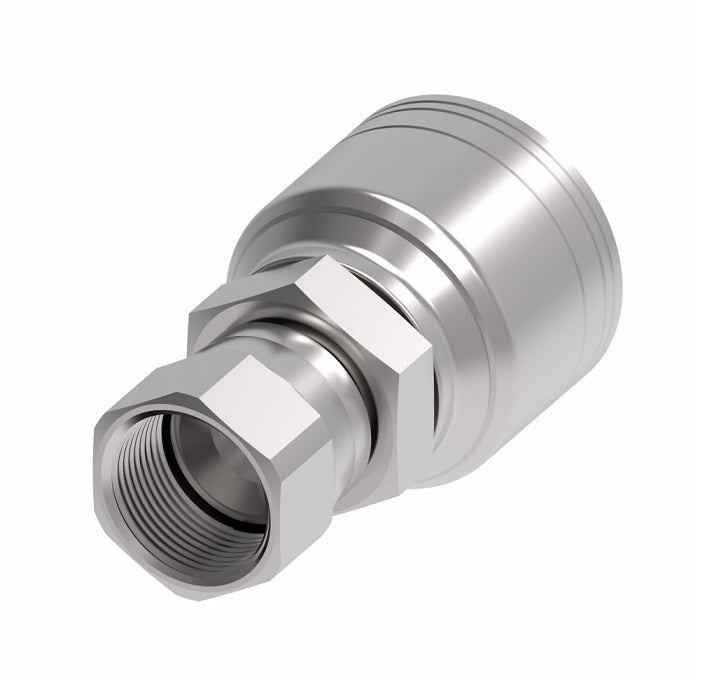

1AA16FJ12 Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel (FJ) Crimp Fitting | -16 Female JIC 37° Swivel x -12 Hose Barb | Steel
1AA16FJ12 Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel (FJ) Crimp Fitting | -16 Female JIC 37° Swivel x -12 Hose Barb | Steel
1AA16FJ12 Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel (FJ) Crimp Fitting | -16 Female JIC 37° Swivel x -12 Hose Barb | Steel
1AA16FJ12 Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel (FJ) Crimp Fitting | -16 Female JIC 37° Swivel x -12 Hose Barb | Steel

1AA16FJ12 Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel (FJ) Crimp Fitting | -16 Female JIC 37° Swivel x -12 Hose Barb | Steel

$29.67 - $29.67
$29.67
$29.67 - $29.67
$29.67

Aeroquip® by Danfoss
1 & 2 Wire Global TTC Female JIC 37° Swivel Crimp Fitting (FJ) - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1AA16FJ12 Danfoss
Brand: Aeroquip, MatchMate
Series: 1AA MatchMate Series
Shape (Orientation): Straight
Ends Configuration: 1in Female JIC, 3/4in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Stainless Steel
Part Number 		Zinc-Nickel
Plated Steel
Part Number 		Thread Hose Size A D E&Oslash Hex 1

 Hex 2
1AA3FJ4 - - 3/8-24 -04 1.94" 1.02" 0.13" 1/2" 9/16"
1AA4FJ4 1AA4FJ4C 1AA4FJ4TZ 7/16-20 -04 2.00" 1.05" 0.17" 9/16" 9/16"
1AA5FJ4 - - 1/2-20 -04 1.98" 1.14" 0.17" 5/8" 9/16"
1AA6FJ4 - 1AA6FJ4TZ 9/16-18 -04 2.03" 1.11" 0.17" 1-1/16" 9/16"
1AA4FJ6 - - 7/16-20 -06 2.19" 1.19" 0.17" 9/16" 11/16"
1AA5FJ6 - - 1/2-20 -06 2.24" 1.24" 0.23" 5/8" 11/16"
1AA6FJ6 1AA6FJ6C 1AA6FJ6TZ 9/16-18 -06 2.28" 1.28" 0.26" 1-1/16" 11/16"
1AA8FJ6 1AA8FJ6C 1AA8FJ6TZ 3/4-16 -06 2.31" 1.31" 0.26" 7/8" 11/16"
1AA10FJ6 - - 7/8-14 -06 2.26" 0.52" 0.26" 1" 11/16"
1AA6FJ8 - - 9/16-18 -08 2.36" 1.36" 0.33" 11/16" 13/16"
1AA8FJ8 1AA8FJ8C 1AA8FJ8TZ 3/4-16 -08 2.63" 1.46" 0.38" 7/8" 13/16"
1AA10FJ8 - - 7/8-14 -08 2.64" 1.47" 0.38" 1" 7/8"
1AA12FJ6 - - 1-1/16-12 -06 - - - - -
1AA12FJ8 - - 1-1/16-12 -08 2.73" 1.56" 0.38" 1-1/4" 1"
1AA16FJ8 - - 1-5/16-12 -08 3.06" 1.89" 0.38" 1-1/2" 1-1/4"
1AA8FJ10 - - 3/4-16 -10 2.65" 1.50" 0.39" 7/8" 15/16"
1AA10FJ10 1AA10FJ10C - 7/8-14 -10 2.77" 1.62" 0.50" 1" 15/16"
1AA12FJ10 - - 1-1/16-12 -10 2.72" 1.57" 0.50" 1-1/4" 1"
1AA10FJ12 - - 7/8-14 -12 2.81" 1.63" 0.48" 1" 1-1/8"
1AA12FJ12 1AA12FJ12C 1AA12FJ12TZ 1-1/16-12 -12 2.84" 1.65" 0.61" 1-1/4" 1-1/8"
1AA14FJ12 - - 1-3/16-12 -12 2.84" 1.68" 0.61" 1-3/8" 1-1/8"
1AA16FJ12 - - 1-5/16-12 -12 2.91" 1.72" 0.61" 1-1/2" 1-1/4"
1AA12FJ16 - - 1-1/16-12 -16 3.15" 1.80" 0.61" 1-1/4" 1-3/8"
1AA14FJ16 - - 1-3/16-12 -16 3.15" 1.83" 0.81" 1-3/8" 1-3/8"
1AA16FJ16 1AA16FJ16C 1AA16FJ16TZ 1-5/16-12 -16 3.29" 1.93" 0.81" 1-1/2" 1-3/8"
1AA20FJ16 - - 1-5/8-12 -16 3.17" 1.81" 0.81" 2" -
1AA16FJ20 - - 1-5/16-12 -20 3.46" 1.73" 0.85" 1-1/2" -
1AA20FJ20 1AA20FJ20C 1AA20FJ20TZ 1-5/8-12 -20 3.61" 1.88" 1.05" 2" -
1AA24FJ24 - - 1-7/8-12 -24 3.90" 2.07" 1.26" 2-1/4" -
1AA32FJ32 - - 2-1/2-12 -32 4.34" 2.39" 1.75" 2-7/8" -

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
