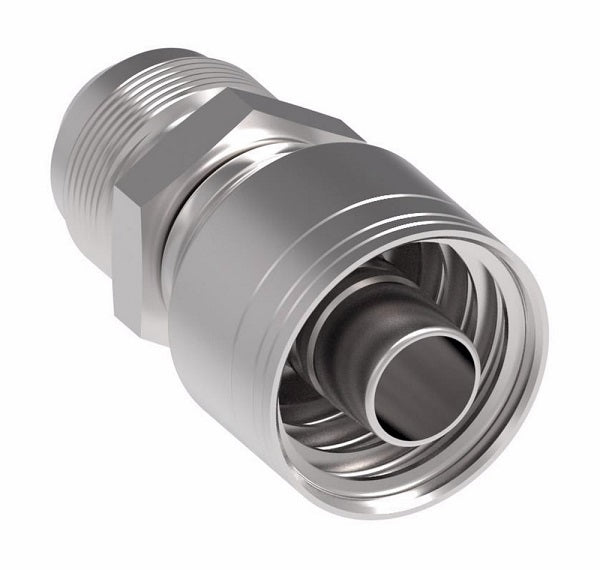

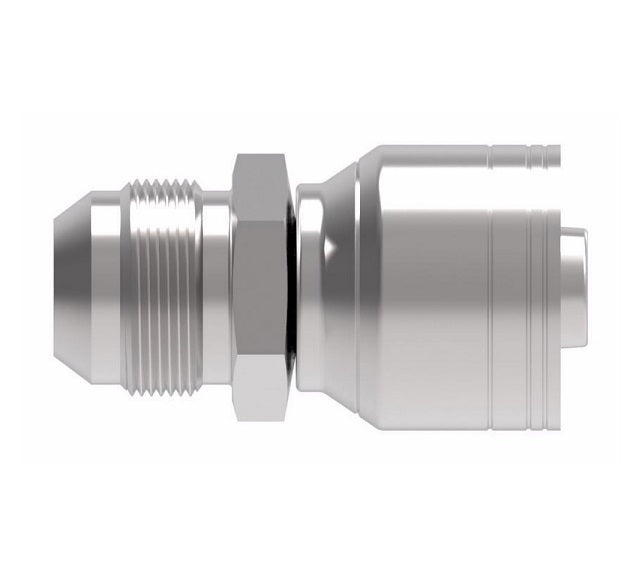

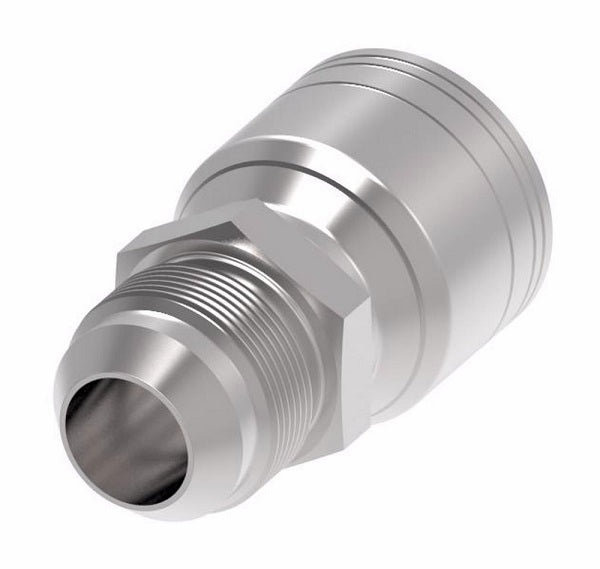

1AA4MJ4 Aeroquip by Danfoss | 1 & 2 Wire TTC Male JIC 37° (MJ) Crimp Fitting | -04 Male JIC 37° x -04 Hose Barb | Steel

Name: 1AA4MJ4 Aeroquip by Danfoss | 1 & 2 Wire TTC Male JIC 37° (MJ) Crimp Fitting | -04 Male JIC 37° x -04 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1AA4MJ4 Danfoss
Price: 10.39 USD
Availability: InStock

$10.39 - $10.39

$10.39

$10.39 - $10.39

$10.39

Aeroquip® by Danfoss
1 & 2 Wire Global TTC Male JIC 37° Crimp Fitting (MJ) - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1AA4MJ4 Danfoss
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male JIC, 1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Zinc-Nickel Plated Steel Part Number	Thread	Hose Size	A	D	E&Oslash	Hex 2
1AA4MJ4	-	7/16-20	-04	2.00"	1.07"	0.17"	9/16"
1AA5MJ4	-	1/2-20	-04	1.84"	0.92"	0.17"	9/16"
1AA6MJ4	1AA6MJ4TZ	9/16-18	-04	1.85"	0.93"	0.17"	5/8"
1AA6MJ6	1AA6MJ6TZ	9/16-18	-06	2.12"	1.22"	0.26"	11/16"
1AA8MJ6	-	3/4-16	-06	1.94"	1.11"	0.26"	13/16"
1AA8MJ8	-	3/4-16	-08	2.59"	1.40"	0.38"	13/16"
1AA10MJ6	-	7/8-14	-06	2.10"	1.21"	0.26"	15/16"
1AA10MJ8	-	7/8-14	-08	2.33"	1.26"	0.38"	15/16"
1AA12MJ8	-	1-1/16-12	-08	2.50"	1.43"	0.38"	1-1/8"
1AA8MJ10	-	3/4-16	-10	2.43"	1.41"	0.50"	15/16"
1AA10MJ10	-	7/8-14	-10	2.73"	1.59"	0.48"	15/16"
1AA12MJ10	-	1-1/16-12	-10	2.46"	1.43"	0.50"	1-1/8"
1AA10MJ12	-	7/8-14	-12	2.78"	1.59"	0.48"	1-1/8"
1AA12MJ12	-	1-1/16-12	-12	2.94"	1.73"	0.61"	1-1/8"
1AA14MJ12	-	1-3/16-12	-12	2.73"	1.54"	0.61"	1-1/4"
1AA16MJ12	-	1-5/16-12	-12	2.75"	1.56"	0.61"	1-3/8"
1AA14MJ16	-	1-3/16-12	-16	3.11"	1.80"	0.72"	1-3/8"
1AA16MJ16	1AA16MJ16TZ	1-5/16-12	-16	3.25"	1.88"	0.82"	1-3/8"
1AA20MJ16	-	1-5/8-12	-16	3.03"	1.71"	0.81"	1-11/16"
1AA20MJ20	-	1-5/8-12	-20	3.89"	2.16"	1.05"	1-3/4"
1AA24MJ24	-	1-7/8-12	-24	4.31"	2.49"	1.26"	2"
