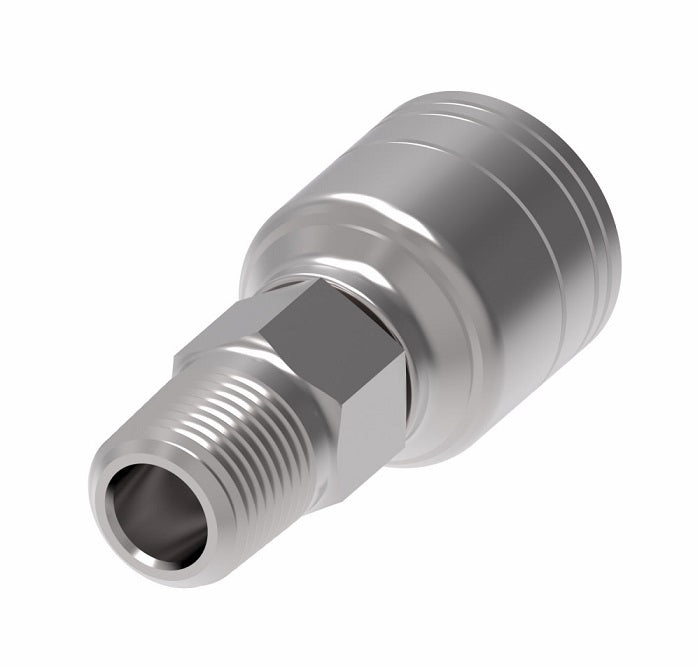

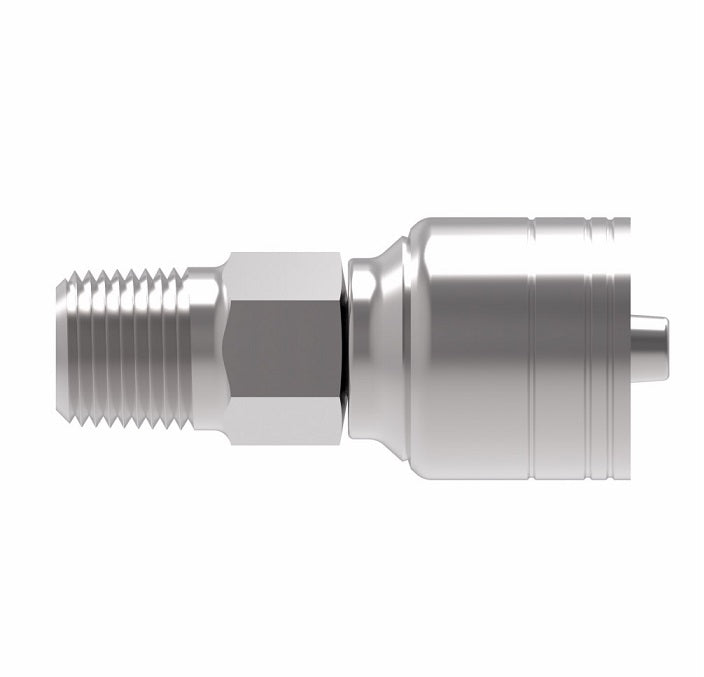

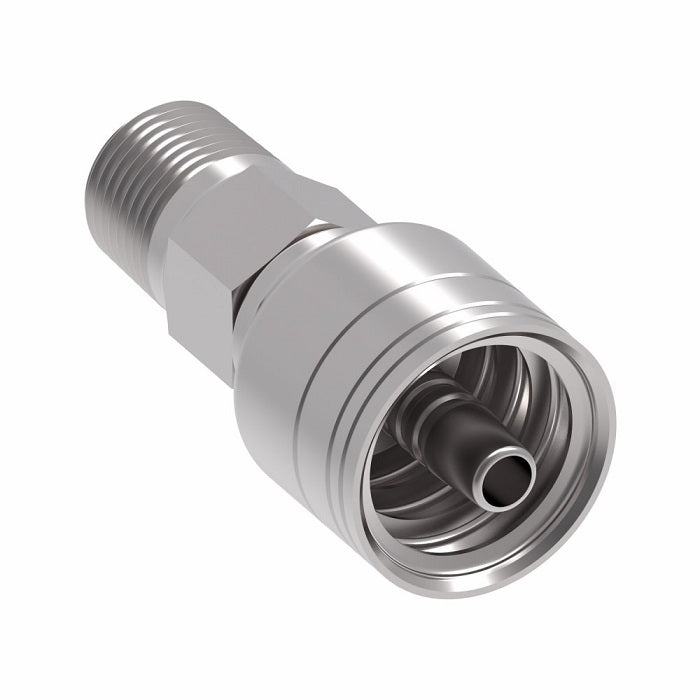

1AA4MP6 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Pipe Crimp Fitting (MP) | -04 Male Pipe x -06 Hose Barb | Steel

Original price $9.05 - Original price $9.05
Original price
$9.05
$9.05 - $9.05
Current price $9.05

Aeroquip® by Danfoss
1 & 2 Wire Global TTC Male Pipe Crimp Fitting (MP) - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1AA4MP6 Danfoss
Brand: Aeroquip, MatchMate
Series: 1AA MatchMate Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPT, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Steel
Part Number
Stainless Steel
Part Number
Zinc-Nickel
Plated Steel
Part Number
Thread Hose Size A D Hex 2

1AA2MP4 - - 1/8-27 -04 1.84" 0.92" 0.17" 9/16"
1AA4MP4 1AA4MP4C 1AA4MP4TZ 1/4-18 -04 2.06" 1.14" 0.17" 9/16"
1AA6MP4 - - 3/8-18 -04 1.90" 0.98" 0.17" 11/16"
1AA4MP6 - - 1/4-18 -06 2.02" 1.18" 0.26" 11/16"
1AA6MP6 1AA6MP6C - 3/8-18 -06 2.17" 1.27" 0.26" 11/16"
1AA8MP4 - - 1/2-14 -04 2.02" 1.23" 0.17" 7/8"
1AA8MP6 - - 1/2-14 -06 2.11" 1.28" 0.26" 7/8"
1AA4MP8 - - 1/4-18 -08 2.30" 1.23" 0.30" 13/16"
1AA6MP8 - - 3/8-18 -08 2.39" 1.32" 0.38" 13/16"
1AA8MP8 1AA8MP8C - 1/2-14 -08 2.80" 1.60" 0.38" 7/8"
1AA12MP8 - - 3/4-14 -08 2.46" 1.39" 0.38" 1-1/16"
1AA6MP10 - - 3/8-18 -10 2.49" 1.33" 0.42" 15/16"
1AA8MP10 - - 1/2-14 -10 2.61" 1.58" 0.50" 15/16"
1AA12MP10 - - 3/4-14 -10 2.43" 1.40" 0.50" 1-1/16"
1AA8MP12 - - 1/2-14 -12 2.78" 1.60" 0.56" 1-1/8"
1AA12MP12 1AA12MP12C - 3/4-14 -12 2.84" 1.65" 0.61" 1-1/8"
1AA12MP16 - - 3/4-14 -16 3.02" 1.67" 0.76" 1-3/8"
1AA16MP12 - - 1-11-1/2 -12 2.80" 1.61" 0.61" 1-3/8"
1AA16MP16 1AA16MP16C - 1-11-1/2 -16 3.22" 1.86" 0.82" 1-3/8"
1AA20MP16 - - 1-1/4 - 11-1/2 -16 3.08" 1.72" 0.82" 1-11/16"
1AA16MP20 - - 1-11 1/2 -20 3.66" 1.93" 0.95" 1-3/4"
1AA20MP20 - - 1-1/4 - 11-1/2 -20 3.52" 1.79" 1.05" 1-13/16"
1AA24MP24 - - 1-1/2 - 11-1/2 -24 4.18" 2.36" 1.26" 2"
1AA32MP32 - - 2-11-1/2 -32 4.59" 2.61" 1.75" 2-1/2"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
