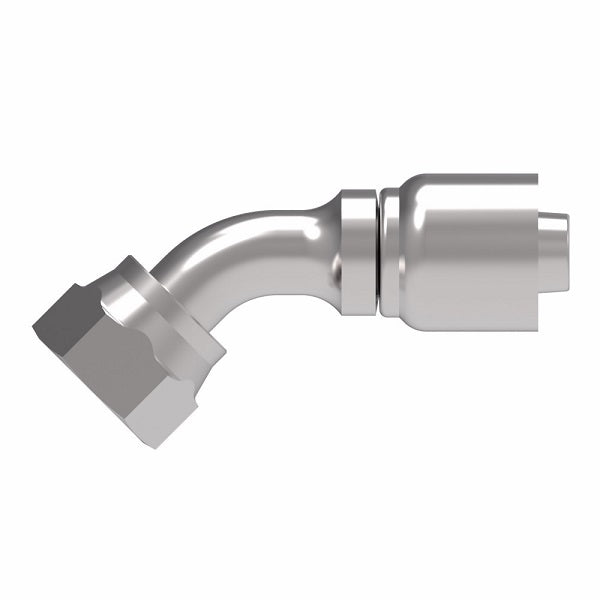

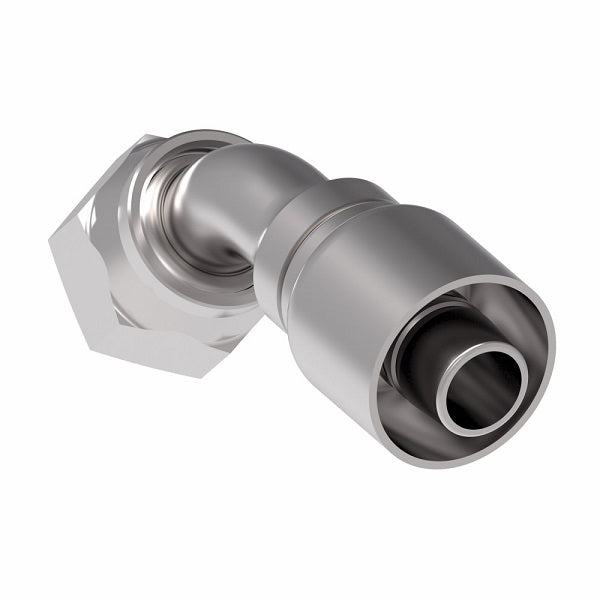

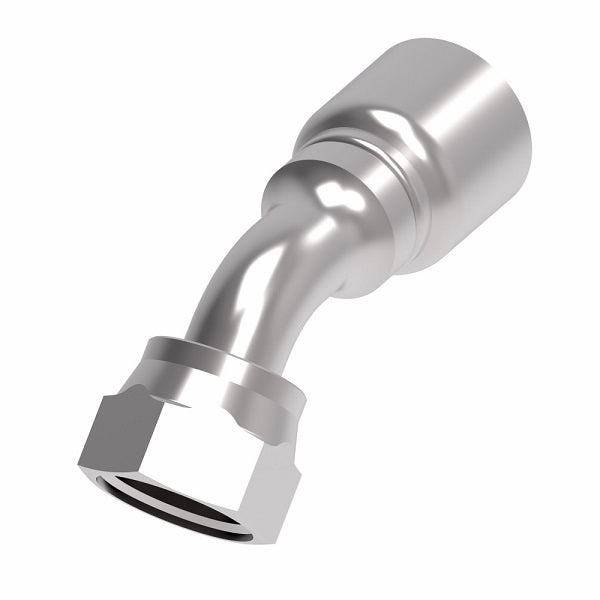

1GA12FRA12 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -12 Female O-Ring Face Seal Swivel  x -12 Hose Barb | Steel
1GA12FRA12 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -12 Female O-Ring Face Seal Swivel  x -12 Hose Barb | Steel | Pack of 10
1GA12FRA12 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -12 Female O-Ring Face Seal Swivel  x -12 Hose Barb | Steel | Pack of 10
1GA12FRA12 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -12 Female O-Ring Face Seal Swivel  x -12 Hose Barb | Steel

1GA12FRA12 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -12 Female O-Ring Face Seal Swivel  x -12 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$491.80 - $491.80
$491.80
$491.80 - $491.80
$491.80

Aeroquip® by Danfoss
1 & 2 Wire OTC Female O-Ring Face Seal (ORS) Swivel Crimp Fitting (FRA) - 45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1GA12FRA12 Danfoss | 10 |
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Female O-Ring Face Seal, 3/4in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2583 Series  |   2661 Series  |   FC466 Series  |   FC498 Series  |   FC598 Series  |   FC619 Series  |   FC699 Series
Technical Info:
Steel
Part Number 		Thread Hose Size A D EØ H Hex 1
1GA6FRA6 11/16-16 -06 2.36" 1.43" 0.24" 0.43" 13/16"
1GA8FRA8 13/16-16 -08 3.00" 1.79" 0.33" 0.59" 15/16"
1GA10FRA8 1-14 -08 3.08" 2.01" 0.38" 0.65" 1-1/8"
1GA10FRA10 1-14 -10 3.18" 2.02" 0.44" 0.65" 1-1/8"
1GA12FRA12 1-3/16-12 -12 3.57" 2.38" 0.55" 0.83" 1-3/8"
1GA16FRA12 1-7/16-12 -12 4.04" 2.85" 0.61" 0.94" 1-5/8"
1GA16FRA16 1-7/16-12 -16 4.23" 2.88" 0.81" 0.94" 1-5/8"
1GA20FRA20 1-11/16-12 -20 5.10" 3.37" 1.02" 1.00" 1-7/8"
1GA20FRA24 1-11/16-12 -24 - - - - -
1GA24FRA24 2-12 -24 4.54" 2.71" 1.26" 1.07" 2-1/4"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
