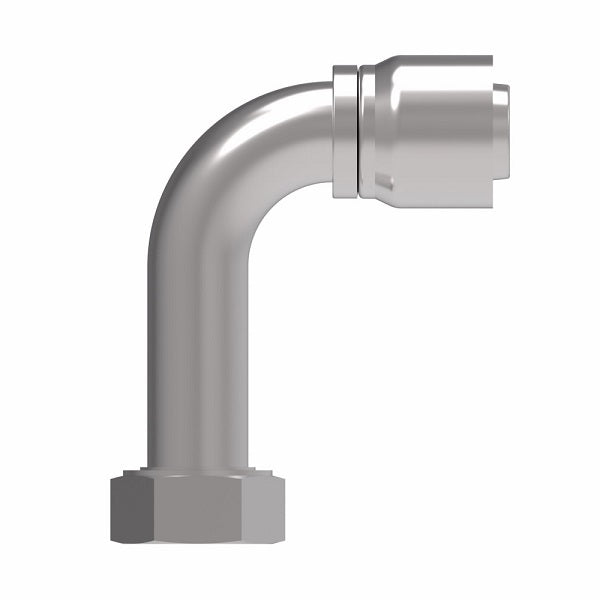

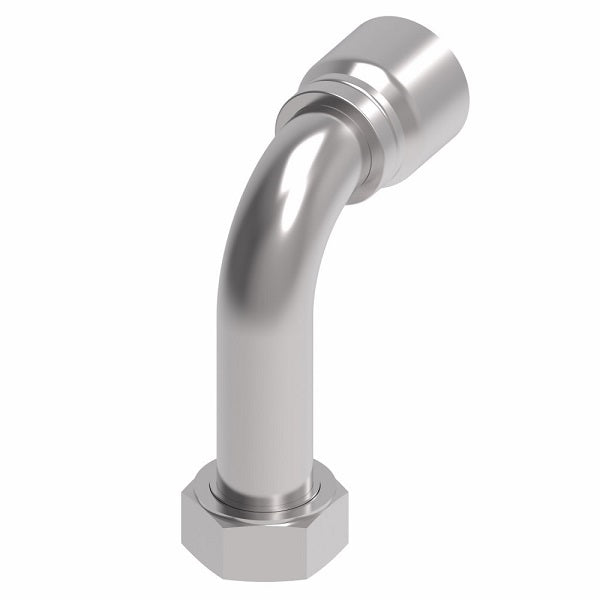

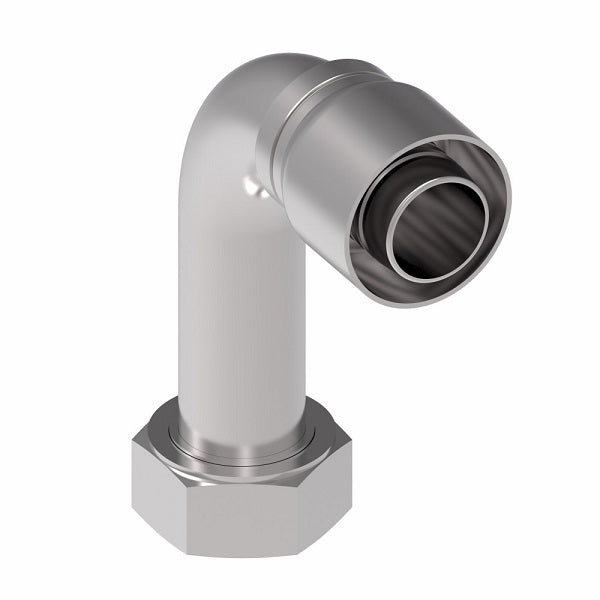

1GA24FRC24 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -24 Female O-Ring Face Seal Swivel x -24 Hose Barb | Steel
1GA24FRC24 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -24 Female O-Ring Face Seal Swivel x -24 Hose Barb | Steel
1GA24FRC24 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -24 Female O-Ring Face Seal Swivel x -24 Hose Barb | Steel
1GA24FRC24 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -24 Female O-Ring Face Seal Swivel x -24 Hose Barb | Steel

1GA24FRC24 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -24 Female O-Ring Face Seal Swivel x -24 Hose Barb | Steel

$207.58 - $207.58
$207.58
$207.58 - $207.58
$207.58

Aeroquip® by Danfoss
1 & 2 Wire OTC Female ORS Swivel Long Drop Crimp Fitting (FRC) - 90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1GA24FRC24 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/2in Female O-Ring Face Seal, 1-1/2in Hose Barb
Material(s): Steel
Special Properties: Swivel, Long Drop
Compatible with the following Series: 2583 Series  |   2661 Series  |   FC466 Series  |   FC498 Series  |   FC598 Series  |   FC619 Series  |   FC699 Series
Technical Info:
Steel
Part Number 		Thread Hose Size A D E&Oslash H Hex 1
1GA8FRC8 13/16-16 -08 2.87" 1.67" 0.33" 2.51" 15/16"
1GA10FRC10 1-14 -10 3.08" 1.91" 0.44" 2.76" 1-1/8"
1GA12FRC12 1-3/16-12 -12 3.48" 2.30" 0.56" 3.78" 1-3/8"
1GA16FRC16 1-7/16-12 -16 4.22" 2.86" 0.78" 4.50" 1-5/8"
1GA20FRC20 1-11/16-12 -20 5.30" 3.57" 1.01" 5.09" 1-7/8"
1GA24FRC24 2-12 -24 4.63" 2.81" 1.26" 5.54" 2-1/4"
