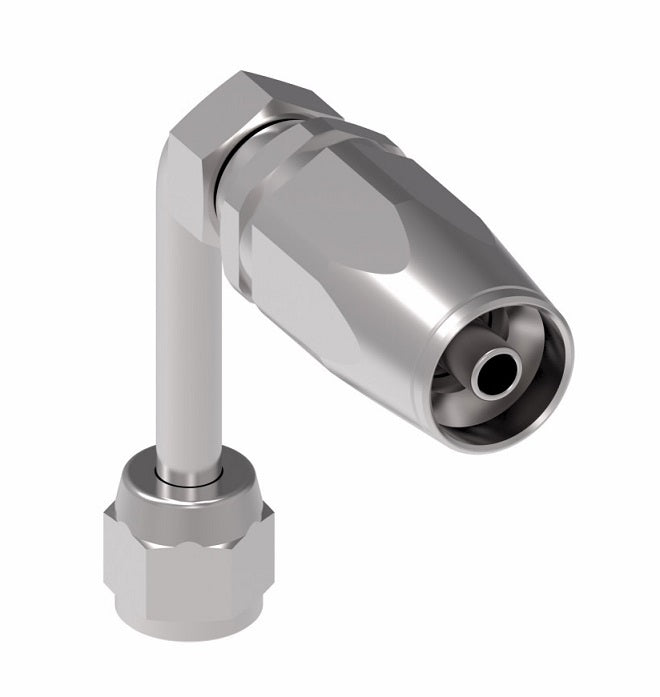

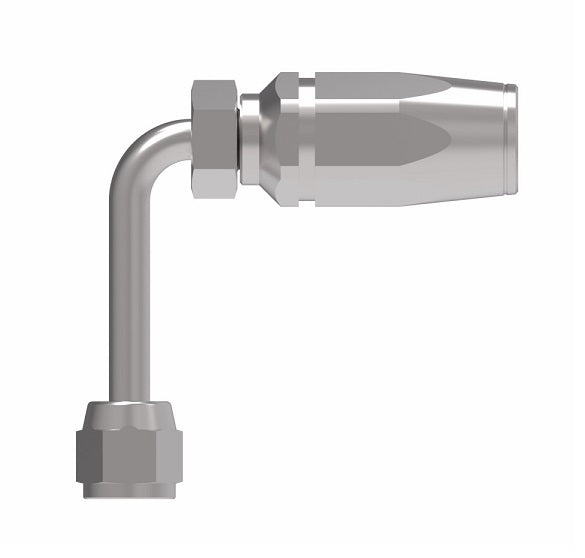

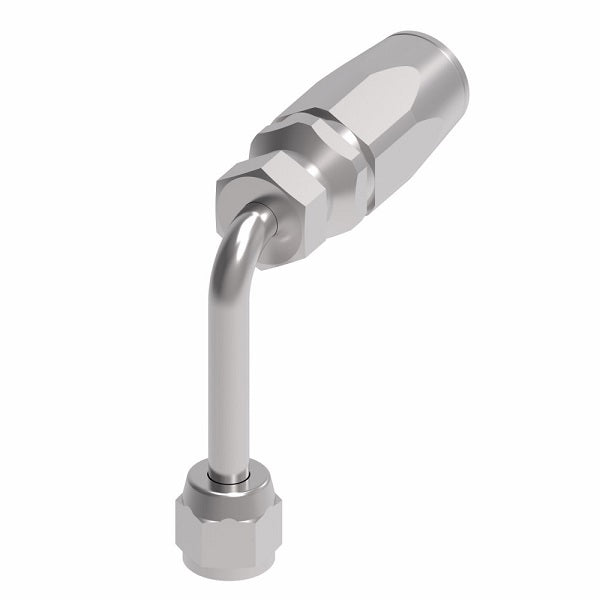

1RA12FJC12 Weatherhead by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
1RA12FJC12 Weatherhead by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
1RA12FJC12 Weatherhead by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
1RA12FJC12 Weatherhead by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

1RA12FJC12 Weatherhead by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

$117.80 - $117.80
$117.80
$117.80 - $117.80
$117.80

Weatherhead by Danfoss
Field Attachable Fitting for 1 Wire Braided Hose - 1R series - Female 37° JIC Swivel Long Drop - 90° Elbow
Specifications for Variant SKU: 1RA12FJC12 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Female JIC, 3/4in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H180 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number
Steel 		Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash H
1RA4FJC4 185263-4S 1RA4 7/16-20 -04 2.26" 1.22" 0.17" 1.80"
1RA6FJC6 185263-6S 1RA6 9/16-18 -06 2.65" 1.52" 0.31" 2.18"
- 185263-8S 1RA8 3/4-16 -08 3.13" 1.66" 0.39" 2.43"
1RA12FJC12 185263-12S 1RA12 1-1/16-12 -12 4.05" 2.45" 0.61" 3.73"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
