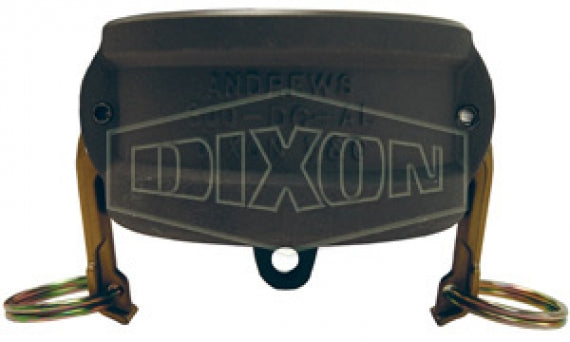

200-DC-ALH by Dixon Valve | Cam & Groove Dust Cap | Type DC | 2" Coupler End | Aluminum Hard Coat

Name: 200-DC-ALH by Dixon Valve | Cam & Groove Dust Cap | Type DC | 2" Coupler End | Aluminum Hard Coat
Brand: Dixon
SKU: 200-DC-ALH Dixon
Price: 44.83 USD
Availability: InStock

Save $4.13

$48.96

$48.96 - $48.96

$48.96

$44.83

$44.83 - $44.83

$44.83

Dixon Valve
Cam & Groove Fitting | Type DC | Dust Cap

Prevents dust and debris from entering the hose, while protecting the coupling from damage when not in use.

Quantity

Specifications for Variant SKU: 200-DC-ALH Dixon
Cam Type:	Type DC
Ends Configuration:	2in Female Cam & Groove
Material(s):	Aluminum Hard Coat
Seal Material(s):	Buna-N/Nitrile Rubber

Construction:
Nitrile rubber gasket supplied standard.
Safety Notes:
Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons. 1/2" Dixon has only one cam arm. Pull rings are not supplied on 1/2" - 1" Dixon couplings. Dixon and Boss-Lock cam & groove couplings do not interchange in the 8" size. The 8" Dixon dust cap has 2 cam arms.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	Aluminum Hard Coat Part Number	Brass Part Number	Unplated Malleable Iron Part Number	316 Stainless Steel Part Number	Size
50-DC-AL	-	50-DC-BR	-	50-DC-SS	1/2"
75-DC-AL	-	75-DC-BR	-	75-DC-SS	3/4"
100-DC-AL	-	100-DC-BR	-	100-DC-SS	1"
150-DC-AL	150-E-ALH	150-DC-BR	-	150-DC-SS	1-1/2"
200-DC-AL	200-DC-ALH	200-DC-BR	200-DC-MI	200-DC-SS	2"
250-DC-AL	-	-	-	250-DC-SS	2-1/2"
300-DC-AL	300-DC-ALH	300-DC-BR	300-DC-MI	300-DC-SS	3"
400-DC-AL	400-DC-ALH	400-DC-BR	400-DC-MI	400-DC-SS	4"
500-DC-AL	-	500-DC-BR	-	500-DC-SS	5"
600-DC-AL	600-DC-ALH	-	-	600-DC-SS	6"
800-DC-AL	-	-	-	-	8"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
