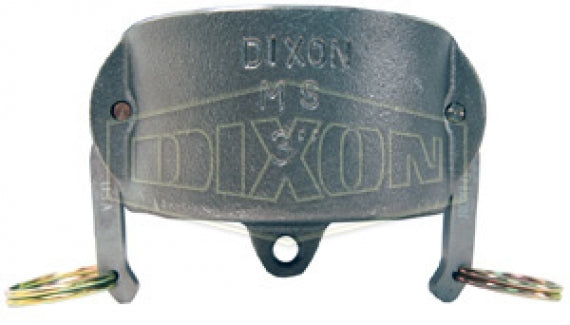

300-DC-MI by Dixon Valve | Cam & Groove Dust Cap | Type DC | 3" Coupler End | Unplated Malleable Iron

300-DC-MI by Dixon Valve | Cam & Groove Dust Cap | Type DC | 3" Coupler End | Unplated Malleable Iron

Save $5.95 Save $5.95
$70.38
$70.38 - $70.38
$70.38
$64.43
$64.43 - $64.43
$64.43

Dixon Valve
Cam & Groove Fitting | Type DC | Dust Cap

Prevents dust and debris from entering the hose, while protecting the coupling from damage when not in use.
Specifications for Variant SKU: 300-DC-MI Dixon
Cam Type: Type DC
Ends Configuration: 3in Female Cam & Groove
Material(s): Unplated Malleable Iron
Seal Material(s): Buna-N/Nitrile Rubber
Construction:
  • Nitrile rubber gasket supplied standard.
Safety Notes:
  • Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons.
  • 1/2" Dixon has only one cam arm.
  • Pull rings are not supplied on 1/2" - 1" Dixon couplings.
  • Dixon and Boss-Lock cam & groove couplings do not interchange in the 8" size.
  • The 8" Dixon dust cap has 2 cam arms.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6
Aluminum
Part Number		 Aluminum
Hard Coat
Part Number		 Brass
Part Number		 Unplated
Malleable Iron
Part Number		 316 Stainless Steel
Part Number		 Size
50-DC-AL - 50-DC-BR - 50-DC-SS 1/2"
75-DC-AL - 75-DC-BR - 75-DC-SS 3/4"
100-DC-AL - 100-DC-BR - 100-DC-SS 1"
150-DC-AL 150-E-ALH 150-DC-BR - 150-DC-SS 1-1/2"
200-DC-AL 200-DC-ALH 200-DC-BR 200-DC-MI 200-DC-SS 2"
250-DC-AL - - - 250-DC-SS 2-1/2"
300-DC-AL 300-DC-ALH 300-DC-BR 300-DC-MI 300-DC-SS 3"
400-DC-AL 400-DC-ALH 400-DC-BR 400-DC-MI 400-DC-SS 4"
500-DC-AL - 500-DC-BR - 500-DC-SS 5"
600-DC-AL 600-DC-ALH - - 600-DC-SS 6"
800-DC-AL - - - - 8"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
