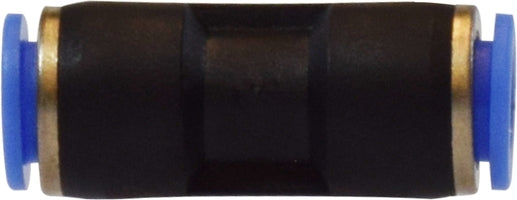

20001C by Midland | Push-In Fitting | Union | 3/16" Tube OD | Composite Body

Save $0.33 Save $0.33
Original price $5.99
Original price $5.99 - Original price $5.99
Original price $5.99
Current price $5.66
$5.66 - $5.66
Current price $5.66

Midland Industries
Brass Fitting - Composite Body Push-in Fitting - Union

The latest generation of composite material is used in the body construction in addition to brass on threaded components, and stainless steel on the tube gripper.

This product will take 2-3 Weeks minimum to ship.

Inventory @ Manufacturers Warehouse: 470 Units

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 20001C Midland
Shape (Orientation): Straight
Ends Configuration: 3/16in Push-to-Connect, 3/16in Push-to-Connect, Some Ends Match
Material(s): Plastic, Brass
Seal Material(s): NBR

SPECIFICATIONS

Fluid Admitted: Air Working Pressure Range: 0-150 PSI (10 BAR)
Min. Burst Pressure: 340 PSI (23 BAR) Working Temperature Range: 0°F ~160°F
Tolerance: +/- .02 on all dimensions.
Materials of Construcion
1 Body Composite Polyacetal (Hemopolymer, Copolymer)
2 Body Brass
3 Tube Release Acetal Resin
4 Retainer Brass
5 Gripper Ring Stainless Steel
6 Spacer Brass
7 O-Ring NBR 70
8 Threads Brass with White Sealant
Crossover Series:
PQ62P
Part Number Tube O.D. Approx. Weight
(Lbs.)
20017C
(20-017C)
1/8" 0.01
20018C
(20-018C)
5/32" 0.01
20001C
(20-001C)
3/16" 0.01
20019C
(20-019C)
1/4" 0.01
20015C
(20-015C)
5/16" 0.01
20020C
(20-020C)
3/8" 0.02
20021C
(20-021C)
1/2" 0.03
20016C
(20-016C)
1/4" x 5/32" 0.01
20515C
(20-515C)
5/16" x 1/4" 0.01
20022C
(20-022C)
3/8" x 1/4" 0.01
20516C
(20-516C)
3/8" x 5/16" 0.02
20024C
(20-024C)
1/2" x 3/8" 0.03

Dimension Data can change without notice.

Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
