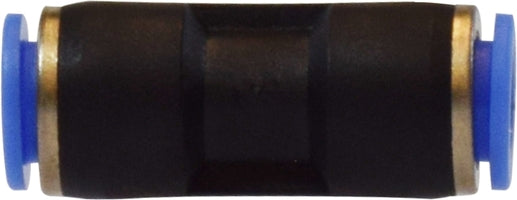

20022C (20-022C) Midland Push-In Fitting - Union - 3/8" x 1/4" Tube OD - Composite Body

20022C by Midland | Push-In Fitting | Union | 3/8" x 1/4" Tube OD | Composite Body

Save $4.08 Save $4.08
$10.20
$10.20 - $10.20
$10.20
$6.12
$6.12 - $6.12
$6.12

Midland Industries
Brass Fitting - Composite Body Push-in Fitting - Union

The latest generation of composite material is used in the body construction in addition to brass on threaded components, and stainless steel on the tube gripper.

Inventory @ Manufacturers Warehouse: 173 Units
Specifications for Variant SKU: 20022C Midland
Shape (Orientation): Straight
Ends Configuration: 1/4in Push-to-Connect, 1/4in Push-to-Connect, Some Ends Match
Material(s): Plastic, Brass
Seal Material(s): NBR

SPECIFICATIONS

Fluid Admitted: Air Working Pressure Range: 0-150 PSI (10 BAR)
Min. Burst Pressure: 340 PSI (23 BAR) Working Temperature Range: 0°F ~160°F
Tolerance: +/- .02 on all dimensions.
Materials of Construcion
1 Body Composite Polyacetal (Hemopolymer, Copolymer)
2 Body Brass
3 Tube Release Acetal Resin
4 Retainer Brass
5 Gripper Ring Stainless Steel
6 Spacer Brass
7 O-Ring NBR 70
8 Threads Brass with White Sealant
Crossover Series:
PQ62P
Part Number Tube O.D. Approx. Weight
(Lbs.)
20017C
(20-017C)		 1/8" 0.01
20018C
(20-018C)		 5/32" 0.01
20001C
(20-001C)		 3/16" 0.01
20019C
(20-019C)		 1/4" 0.01
20015C
(20-015C)		 5/16" 0.01
20020C
(20-020C)		 3/8" 0.02
20021C
(20-021C)		 1/2" 0.03
20016C
(20-016C)		 1/4" x 5/32" 0.01
20515C
(20-515C)		 5/16" x 1/4" 0.01
20022C
(20-022C)		 3/8" x 1/4" 0.01
20516C
(20-516C)		 3/8" x 5/16" 0.02
20024C
(20-024C)		 1/2" x 3/8" 0.03

Dimension Data can change without notice.
