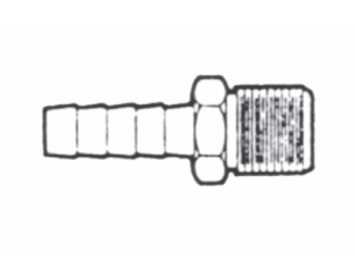

2001HS by Couplamatic | Suction & Return Line Coupling | NPTF | Male Solid | 1-1/4" Hose ID | 1-1/4-11-1/2 Thread Size

2001HS by Couplamatic | Suction & Return Line Coupling | NPTF | Male Solid | 1-1/4" Hose ID | 1-1/4-11-1/2 Thread Size | Straight | Trivalent Zinc

Save $9.22 Save $9.22
$23.05
$23.05 - $23.05
$23.05
$13.83
$13.83 - $13.83
$13.83

Couplamatic Inc
Suction and Return Line Couplings - NPTF - Male Solid
Specifications for Variant SKU: 2001HS Couplamatic
Series: Suction & Return Line Coupling Series
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Hose Barb, 1-1/4in Male NPTF
Compatible with the following Series: 104MB Series  |   3284H Series
Features:
  • Stems can be banded or clamped.
  • Trivalent Zinc.
  • Note: 3/4" thru 2" hydraulic suction hose can also be crimped using standard Grip-Crimp.
    3/4" thru 1-1/4" can be crimped with standard Vari-Crimp.
Part Number Hose ID Pipe Size Thread Size
1204HS 3/4" 3/4" 3/4-14
1601HS 1" 1" 1-11-1/2
2001HS 1-1/4" 1-1/4" 1-1/4-11-1/2
2401HS 1-1/2" 1-1/2" 1-1/2-11-1/2
3201HS 2" 2" 2-11-1/2
