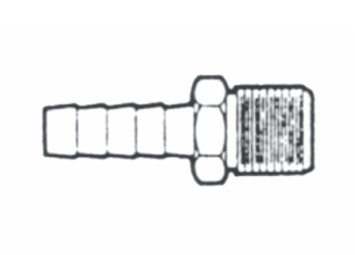

3201HS by Couplamatic | Suction & Return Line Coupling | NPTF | Male Solid | 2" Hose ID | 2-11-1/2 Thread Size

3201HS by Couplamatic | Suction & Return Line Coupling | 2" Hose ID x 2-11-1/2 Thread Size NPTF Male Solid | Straight | Trivalent Zinc

Save $24.96 Save $24.96
$62.40
$62.40 - $62.40
$62.40
$37.44
$37.44 - $37.44
$37.44

Couplamatic Inc
Suction and Return Line Couplings - NPTF - Male Solid
Specifications for Variant SKU: 3201HS Couplamatic
Series: Suction & Return Line Coupling Series
Shape (Orientation): Straight
Ends Configuration: 2in Hose Barb, 2in Male NPTF
Compatible with the following Series: 104MB Series  |   3284H Series
Suction & Return Line

1204HS Suction and Return Line Coupling — NPTF Male Solid, Straight

1204HS is the NPTF Male Solid, Straight configuration of the Suction and Return Line Coupling, terminating SAE 100R4 hydraulic suction and return line hose.

1

What are the main product features?
  • Stems can be banded or clamped
  • Trivalent Zinc
  • Note: 3/4" thru 2" hydraulic suction hose can also be crimped using standard Grip-Crimp.
    3/4" thru 1-1/4" can be crimped with standard Vari-Crimp.
  • Sized for large bore suction hose — the low pressure, large diameter side of the system.
2

Which sizes are available?
Part Number Hose ID Pipe Size Thread Size
1204HS 3/4" 3/4" 3/4-14
1601HS 1" 1" 1-11-1/2
2001HS 1-1/4" 1-1/4" 1-1/4-11-1/2
2401HS 1-1/2" 1-1/2" 1-1/2-11-1/2
3201HS 2" 2" 2-11-1/2
