20095N (20-095N) by Midland | Push-In Fitting | Swivel Male | 1/8" Tube OD x 1/8" Male Global Thread | Tee | Nickel Plated Brass

Save $6.80

$17.00

$17.00 - $17.00

$17.00

$10.20

$10.20 - $10.20

$10.20

Midland Industries

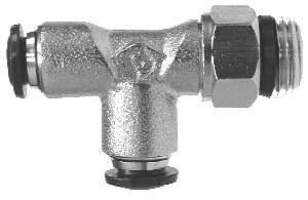

Brass Fitting - Nickel Plated Push-in Fitting - Swivel Male Run Tee

Specifications for Variant SKU: 20095N Midland
Shape (Orientation):	Tee
Ends Configuration:	1/8in Push-to-Connect, 1/8in Push-to-Connect, 1/8in Male Global, Some Ends Match
Material(s):	Nickel Plated Brass

Features:
Global Threads: Works with inch or metric threads. (can be assembled with female threads produced to the following standards: Tapered NPTF, Parrallel (BSPP, BSP, ISO 7), Tapered (BSPT, PT, ISO 7, ISO 228) Saves time and money No stripped threads No stripped parts Reduce inventory Completely reusable Quick installation No pitch identification
Specifications:
Tolerance: +/- .02 on all dimensions Max Operating Pressure: Vacuum to 290PSI Min Temperature: -4°F Max Temperature: 176°F Tubing: Nylon, Polyethylene, Polyurethane. For best results use 95 Durometer Media: Compressed air, water, vacuum

Component Parts and Materials:
Body	Brass - Nickel Plated
Thrust Ring	Acetalic Resin/ Glass filled Nylon
Sleeve	Brass - Nickel Plated
Gripper Collet	Stainless Steel
Safety Ring	PA66
Lip Seal (1/8" O-Ring Seal)	NBR 70
Thread Seal	NBR 70

Crossover Series:
W171PL	87222


Part Number	Tube O.D. x Male Global Thread	A	B	Hex	Approx. Weight (Lbs.)
20095N (20-095N)	1/8" x 1/8"	0.67"	0.81"	0.51"	0.05
20851N (20-851N)	1/8" x 1/4"	0.67"	0.95"	0.59"	0.06
20852N (20-852N)	5/32" x 1/8"	0.67"	0.79"	0.51"	0.07
20853N (20-853N)	5/32" x 1/4"	0.67"	0.95"	0.59"	0.07
20162N (20-162N)	1/4" x 1/8"	0.83"	0.87"	0.51"	0.09
20163N (20-163N)	1/4" x 1/4"	0.83"	0.98"	0.59"	0.11
20164N (20-164N)	1/4" x 3/8"	0.83"	1.10"	0.59"	0.11
20159N (20-159N)	3/8" x 1/8"	1.04"	1.07"	0.59"	0.12
20168N (20-168N)	3/8" x 1/4"	1.04"	1.10"	0.59"	0.12
20165N (20-165N)	3/8" x 3/8"	1.04"	1.18"	0.67"	0.12
20181N (20-181N)	3/8" x 1/2"	1.20"	1.24"	0.59"	0.15
20174N (20-174N)	1/2" x 1/4"	1.20"	1.24"	0.59"	0.16
20166N (20-166N)	1/2" x 3/8"	1.20"	1.30"	0.67"	0.14
20167N (20-167N)	1/2" x 1/2"	1.20"	1.42"	0.83"	0.17

Dimension data can change without notice.
