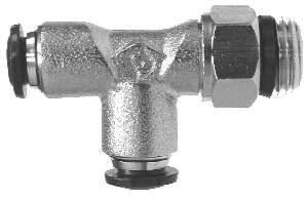

20166N (20-166N) Midland Push-In Fitting - Swivel Male Run Tee - 1/2" Tube OD x 3/8" Male Global Thread - Nickel Plated Brass

20166N by Midland | Push-In Fitting | Swivel Run | 1/2" Tube OD x 3/8" Male Global Thread | Tee | Nickel Plated Brass

Save $2.52

$22.69

$22.69 - $22.69

$22.69

$20.17

$20.17 - $20.17

$20.17

Midland Industries
Brass Fitting - Nickel Plated Push-in Fitting - Swivel Male Run Tee

Inventory @ Manufacturers Warehouse: 100 Units

Quantity

Specifications for Variant SKU: 20166N Midland
Shape (Orientation):	Tee
Ends Configuration:	1/2in Push-to-Connect, 3/8in Male Global, 1/2in Push-to-Connect, Some Ends Match
Material(s):	Nickel Plated Brass

Features:
Global Threads: Works with inch or metric threads. (can be assembled with female threads produced to the following standards: Tapered NPTF, Parrallel (BSPP, BSP, ISO 7), Tapered (BSPT, PT, ISO 7, ISO 228) Saves time and money No stripped threads No stripped parts Reduce inventory Completely reusable Quick installation No pitch identification
Specifications:
Tolerance: +/- .02 on all dimensions Max Operating Pressure: Vacuum to 290PSI Min Temperature: -4°F Max Temperature: 176°F Tubing: Nylon, Polyethylene, Polyurethane. For best results use 95 Durometer Media: Compressed air, water, vacuum

Component Parts and Materials:
Body	Brass - Nickel Plated
Thrust Ring	Acetalic Resin/ Glass filled Nylon
Sleeve	Brass - Nickel Plated
Gripper Collet	Stainless Steel
Safety Ring	PA66
Lip Seal (1/8" O-Ring Seal)	NBR 70
Thread Seal	NBR 70

Crossover Series:
W171PL	87222


Part Number	Tube O.D. x Male Global Thread	A	B	Hex	Approx. Weight (Lbs.)
20095N (20-095N)	1/8" x 1/8"	0.67"	0.81"	0.51"	0.05
20851N (20-851N)	1/8" x 1/4"	0.67"	0.95"	0.59"	0.06
20852N (20-852N)	5/32" x 1/8"	0.67"	0.79"	0.51"	0.07
20853N (20-853N)	5/32" x 1/4"	0.67"	0.95"	0.59"	0.07
20162N (20-162N)	1/4" x 1/8"	0.83"	0.87"	0.51"	0.09
20163N (20-163N)	1/4" x 1/4"	0.83"	0.98"	0.59"	0.11
20164N (20-164N)	1/4" x 3/8"	0.83"	1.10"	0.59"	0.11
20159N (20-159N)	3/8" x 1/8"	1.04"	1.07"	0.59"	0.12
20168N (20-168N)	3/8" x 1/4"	1.04"	1.10"	0.59"	0.12
20165N (20-165N)	3/8" x 3/8"	1.04"	1.18"	0.67"	0.12
20181N (20-181N)	3/8" x 1/2"	1.20"	1.24"	0.59"	0.15
20174N (20-174N)	1/2" x 1/4"	1.20"	1.24"	0.59"	0.16
20166N (20-166N)	1/2" x 3/8"	1.20"	1.30"	0.67"	0.14
20167N (20-167N)	1/2" x 1/2"	1.20"	1.42"	0.83"	0.17

Dimension data can change without notice.

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
