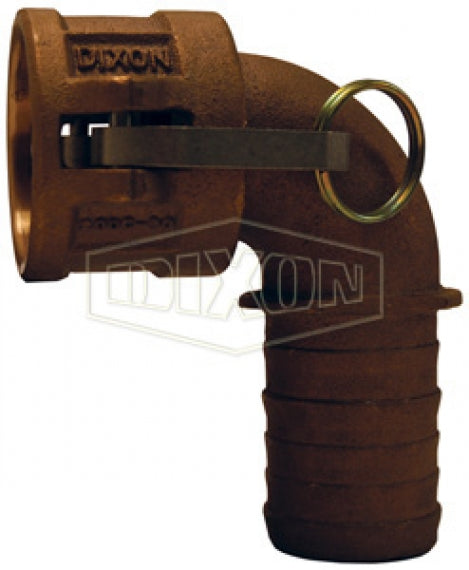

200C-90BR by Dixon Valve | Cam & Groove Coupler | 90° Elbow | Type C | 2" Coupler x 2" Hose Shank | Brass


Dixon Valve
Cam & Groove Coupler | 90° Elbow | Type C | Coupler x Hose Shank

Designed for use with liquids.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 200C-90BR Dixon
MAWP: 250
Shape (Orientation): 90 Degree
Cam Type: Type C
Ends Configuration: 2in Female Cam & Groove X 2in Hose Barb
Material(s): Brass
  • Nitrile rubber gasket standard.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number
Part Number
316 Stainless Steel
Part Number
Size Maximum Operating Pressure
- 125C-90BR - 1-1/4" 250 PSI
150C-90AL - 150C-90SS 1-1/2" 250 PSI
200C-90AL 200C-90BR 200C-90SS 2" 250 PSI
300C-90AL - 300C-90SS 3" 125 PSI
400C-90AL - 400C-90SS* 4" 100 PSI
600C-90AL - - 6" 75 PSI

* Parts are produced as a welded fabrication.
