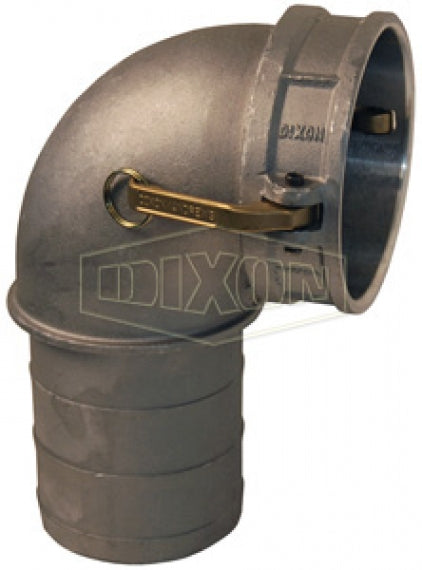

400C-90AL by Dixon Valve | Cam & Groove Coupler | 90° Elbow | Type C | 4" Coupler x 4" Hose Shank | Aluminum

Save $11.91 Save $11.91
Original price $148.98
Original price $148.98 - Original price $148.98
Original price $148.98
Current price $137.07
$137.07 - $137.07
Current price $137.07

Dixon Valve
Cam & Groove Coupler | 90° Elbow | Type C | Coupler x Hose Shank

Designed for use with liquids.


Specifications for Variant SKU: 400C-90AL Dixon
Shape (Orientation): 90 Degree
Cam Type: Type C
Ends Configuration: 4in Female Cam & Groove, 4in Hose Barb
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber
Construction:
  • Nitrile rubber gasket standard.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number
Brass
Part Number
316 Stainless Steel
Part Number
Size Maximum Operating Pressure
- 125C-90BR - 1-1/4" 250 PSI
150C-90AL - 150C-90SS 1-1/2" 250 PSI
200C-90AL 200C-90BR 200C-90SS 2" 250 PSI
300C-90AL - 300C-90SS 3" 125 PSI
400C-90AL - 400C-90SS* 4" 100 PSI
600C-90AL - - 6" 75 PSI

* Parts are produced as a welded fabrication.
