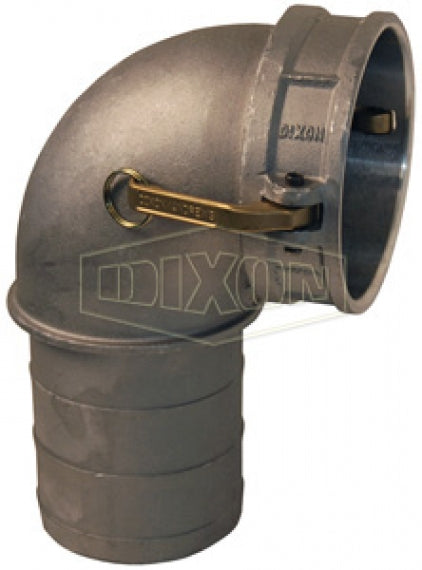

300C-90AL by Dixon Valve | Cam & Groove Coupler | 90° Elbow | Type C | 3" Coupler x 3" Hose Shank | Aluminum

Save $6.46

$80.82

$80.82 - $80.82

$80.82

$74.36

$74.36 - $74.36

$74.36

Dixon Valve
Cam & Groove Coupler | 90° Elbow | Type C | Coupler x Hose Shank

Designed for use with liquids.

Quantity

Specifications for Variant SKU: 300C-90AL Dixon
Shape (Orientation):	90 Degree
Cam Type:	Type C
Ends Configuration:	3in Female Cam & Groove, 3in Hose Barb
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile Rubber

Construction:
Nitrile rubber gasket standard.
Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	Brass Part Number	316 Stainless Steel Part Number	Size	Maximum Operating Pressure
-	125C-90BR	-	1-1/4"	250 PSI
150C-90AL	-	150C-90SS	1-1/2"	250 PSI
200C-90AL	200C-90BR	200C-90SS	2"	250 PSI
300C-90AL	-	300C-90SS	3"	125 PSI
400C-90AL	-	400C-90SS*	4"	100 PSI
600C-90AL	-	-	6"	75 PSI

* Parts are produced as a welded fabrication.
