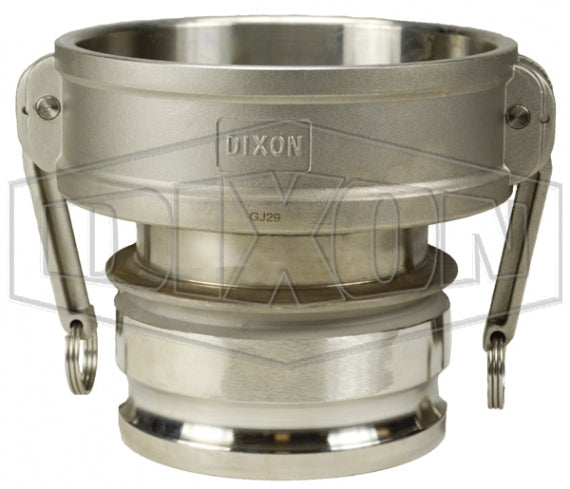

2015-DA-SS by Dixon Valve | Cam & Groove Reducer (Jump Size) Coupling | Type DA | 2" Coupler x 1-1/2" Adapter | 316 Stainless Steel

2015-DA-SS by Dixon Valve | Cam & Groove Reducer (Jump Size) Coupling | Type DA | 2" Coupler x 1-1/2" Adapter | 316 Stainless Steel

Save $129.71 Save $129.71
$324.27
$324.27 - $324.27
$324.27
$194.56
$194.56 - $194.56
$194.56

Dixon Valve
Cam & Groove Jump Size Coupling | Type DA | Coupler x Adapter

Designed for use with liquids.
Specifications for Variant SKU: 2015-DA-SS Dixon
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 2in Female Cam & Groove, 1-1/2in Male Cam & Groove
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Construction:
  • Nitrile rubber gasket standard.
Safety Notes:
  • The 8" coupler only interchanges with Dixon® adapters.
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 316 Stainless Steel
Part Number		 Bras
Part Number		 Unplated
Malleable Iron
Part Number		 Size
Coupler x Adapter		 Max. Operating Pressure
1015-DA-AL* 1015-DA-SS* - - 1" x 1-1/2" 250 PSI
1510DAAL 1510-DA-SS* - - 1-1/2" x 1" 250 PSI
1520-DA-AL 1520-DA-SS - - 1-1/2" x 2" 250 PSI
2010-DA-AL* 2010-DA-SS - - 2" x 1" 250 PSI
2015-DA-AL 2015-DA-SS - - 2" x 1-1/2" 250 PSI
2025-DA-AL* 2025-DA-SS* - - 2" x 2-1/2" 150 PSI
2030-DA-AL 2030-DA-SS - - 2" x 3" 125 PSI
2040-DA-AL 2040-DA-SS* - - 2" x 4" 100 PSI
- 2520-DA-SS* - - 2-1/2" x 2" 150 PSI
- 2530-DA-SS* - - 2-1/2" x 3" 125 PSI
3015-DA-AL 3015-DA-SS* - - 3" x 1-1/2" 125 PSI
3020-DA-AL 3020-DA-SS 3020-DA-BR 3020-DA-MI 3" x 2" 125 PSI
3025-DA-AL 3025-DA-SS* - - 3" x 2-1/2" 125 PSI
3040-DA-AL 3040-DA-SS 3040-DA-BR - 3" x 4" 100 PSI
3060-DA-AL* 3060-DA-SS* - - 3" x 6" 75 PSI
4020-DA-AL 4020-DA-SS* - - 4" x 2" 100 PSI
4025-DA-AL 4025-DA-SS* - - 4" x 2-1/2" 100 PSI
4030-DA-AL 4030-DA-SS 4030-DA-BR 4030-DA-MI 4" x 3" 100 PSI
4050-DA-AL - - - 4" x 5" 75 PSI
4060-DA-AL 4060-DA-SS* - - 4" x 6" 75 PSI
5030-DA-AL* 5030-DA-SS* - - 5" x 3" 75 PSI
5040-DA-AL 5040-DA-SS* - - 5" x 4" 75 PSI
5060-DA-AL* 5060-DA-SS* - - 5" x 6" 75 PSI
6030-DA-AL 6030-DA-SS* - - 6" x 3" 75 PSI
6040-DA-AL 6040-DA-SS 6040-DA-BR 6040-DA-MI 6" x 4" 75 PSI
6050-DA-AL 6050-DA-SS* - - 6" x 5" 75 PSI
8060-DA-AL* - - - 8" x 6" 50 PSI

* Parts are produced as a welded fabrication
