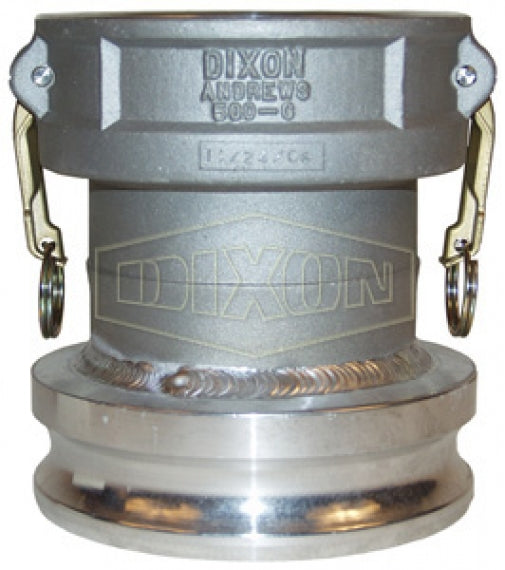

3060-DA-AL by Dixon Valve | Cam & Groove Reducer (Jump Size) Coupling | Type DA | 3" Coupler x 6" Adapter | Aluminum

Name: 3060-DA-AL by Dixon Valve | Cam & Groove Reducer (Jump Size) Coupling | Type DA | 3" Coupler x 6" Adapter | Aluminum
Brand: Dixon
SKU: 3060-DA-AL Dixon
Price: 213.41 USD
Availability: InStock

Save $142.27

$355.68

$355.68 - $355.68

$355.68

$213.41

$213.41 - $213.41

$213.41

Dixon Valve
Cam & Groove Jump Size Coupling | Type DA | Coupler x Adapter

Designed for use with liquids.

Specifications for Variant SKU: 3060-DA-AL Dixon
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	3in Female Cam & Groove, 6in Male Cam & Groove
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile Rubber

Construction:
Nitrile rubber gasket standard.
Safety Notes:
The 8" coupler only interchanges with Dixon® adapters. Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	316 Stainless Steel Part Number	Bras Part Number	Unplated Malleable Iron Part Number	Size Coupler x Adapter	Max. Operating Pressure
1015-DA-AL*	1015-DA-SS*	-	-	1" x 1-1/2"	250 PSI
1510DAAL	1510-DA-SS*	-	-	1-1/2" x 1"	250 PSI
1520-DA-AL	1520-DA-SS	-	-	1-1/2" x 2"	250 PSI
2010-DA-AL*	2010-DA-SS	-	-	2" x 1"	250 PSI
2015-DA-AL	2015-DA-SS	-	-	2" x 1-1/2"	250 PSI
2025-DA-AL*	2025-DA-SS*	-	-	2" x 2-1/2"	150 PSI
2030-DA-AL	2030-DA-SS	-	-	2" x 3"	125 PSI
2040-DA-AL	2040-DA-SS*	-	-	2" x 4"	100 PSI
-	2520-DA-SS*	-	-	2-1/2" x 2"	150 PSI
-	2530-DA-SS*	-	-	2-1/2" x 3"	125 PSI
3015-DA-AL	3015-DA-SS*	-	-	3" x 1-1/2"	125 PSI
3020-DA-AL	3020-DA-SS	3020-DA-BR	3020-DA-MI	3" x 2"	125 PSI
3025-DA-AL	3025-DA-SS*	-	-	3" x 2-1/2"	125 PSI
3040-DA-AL	3040-DA-SS	3040-DA-BR	-	3" x 4"	100 PSI
3060-DA-AL*	3060-DA-SS*	-	-	3" x 6"	75 PSI
4020-DA-AL	4020-DA-SS*	-	-	4" x 2"	100 PSI
4025-DA-AL	4025-DA-SS*	-	-	4" x 2-1/2"	100 PSI
4030-DA-AL	4030-DA-SS	4030-DA-BR	4030-DA-MI	4" x 3"	100 PSI
4050-DA-AL	-	-	-	4" x 5"	75 PSI
4060-DA-AL	4060-DA-SS*	-	-	4" x 6"	75 PSI
5030-DA-AL*	5030-DA-SS*	-	-	5" x 3"	75 PSI
5040-DA-AL	5040-DA-SS*	-	-	5" x 4"	75 PSI
5060-DA-AL*	5060-DA-SS*	-	-	5" x 6"	75 PSI
6030-DA-AL	6030-DA-SS*	-	-	6" x 3"	75 PSI
6040-DA-AL	6040-DA-SS	6040-DA-BR	6040-DA-MI	6" x 4"	75 PSI
6050-DA-AL	6050-DA-SS*	-	-	6" x 5"	75 PSI
8060-DA-AL*	-	-	-	8" x 6"	50 PSI

* Parts are produced as a welded fabrication
