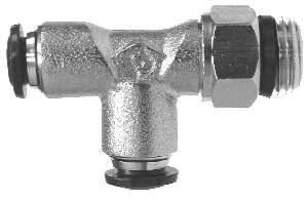

20167N (20-167N) Midland Push-In Fitting - Swivel Male Run Tee - 1/2" Tube OD x 1/2" Male Global Thread - Nickel Plated Brass

20167N by Midland | Push-In Fitting | Swivel Run | 1/2" Tube OD x 1/2" Male Global Thread | Tee | Nickel Plated Brass

Save $2.67 Save $2.67
$24.02
$24.02 - $24.02
$24.02
$21.35
$21.35 - $21.35
$21.35

Midland Industries
Brass Fitting - Nickel Plated Push-in Fitting - Swivel Male Run Tee
Specifications for Variant SKU: 20167N Midland
Shape (Orientation): Tee
Ends Configuration: 1/2in Push-to-Connect, 1/2in Male Global, 1/2in Push-to-Connect, Some Ends Match
Material(s): Nickel Plated Brass
Features:
  • Global Threads: Works with inch or metric threads. (can be assembled with female threads produced to the following standards: Tapered NPTF, Parrallel (BSPP, BSP, ISO 7), Tapered (BSPT, PT, ISO 7, ISO 228)
  • Saves time and money
  • No stripped threads
  • No stripped parts
  • Reduce inventory
  • Completely reusable
  • Quick installation
  • No pitch identification
Specifications:
  • Tolerance: +/- .02 on all dimensions
  • Max Operating Pressure: Vacuum to 290PSI
  • Min Temperature: -4°F
  • Max Temperature: 176°F
  • Tubing: Nylon, Polyethylene, Polyurethane. For best results use 95 Durometer
  • Media: Compressed air, water, vacuum
Component Parts and Materials:
Body Brass - Nickel Plated
Thrust Ring Acetalic Resin/ Glass filled Nylon
Sleeve Brass - Nickel Plated
Gripper Collet Stainless Steel
Safety Ring PA66
Lip Seal (1/8" O-Ring Seal) NBR 70
Thread Seal NBR 70
Crossover Series:
W171PL 87222
Part Number Tube O.D. x Male Global Thread A B Hex Approx. Weight
(Lbs.)
20095N
(20-095N)		 1/8" x 1/8" 0.67" 0.81" 0.51" 0.05
20851N
(20-851N)		 1/8" x 1/4" 0.67" 0.95" 0.59" 0.06
20852N
(20-852N)		 5/32" x 1/8" 0.67" 0.79" 0.51" 0.07
20853N
(20-853N)		 5/32" x 1/4" 0.67" 0.95" 0.59" 0.07
20162N
(20-162N)		 1/4" x 1/8" 0.83" 0.87" 0.51" 0.09
20163N
(20-163N)		 1/4" x 1/4" 0.83" 0.98" 0.59" 0.11
20164N
(20-164N)		 1/4" x 3/8" 0.83" 1.10" 0.59" 0.11
20159N
(20-159N)		 3/8" x 1/8" 1.04" 1.07" 0.59" 0.12
20168N
(20-168N)		 3/8" x 1/4" 1.04" 1.10" 0.59" 0.12
20165N
(20-165N)		 3/8" x 3/8" 1.04" 1.18" 0.67" 0.12
20181N
(20-181N)		 3/8" x 1/2" 1.20" 1.24" 0.59" 0.15
20174N
(20-174N)		 1/2" x 1/4" 1.20" 1.24" 0.59" 0.16
20166N
(20-166N)		 1/2" x 3/8" 1.20" 1.30" 0.67" 0.14
20167N
(20-167N)		 1/2" x 1/2" 1.20" 1.42" 0.83" 0.17

Dimension data can change without notice.

Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
