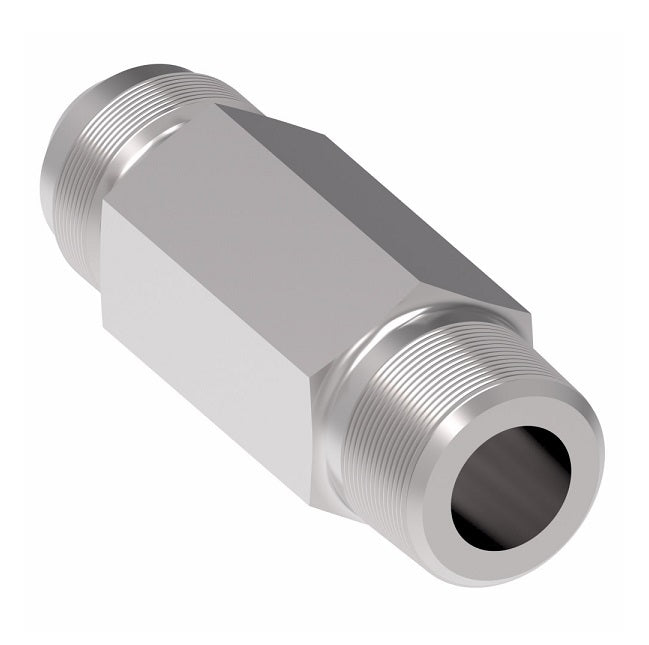

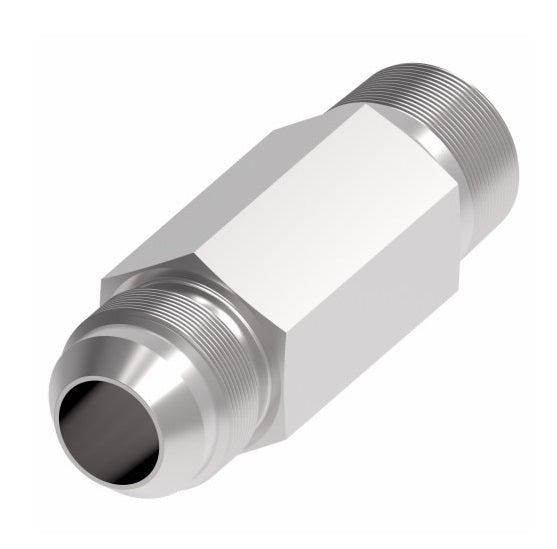

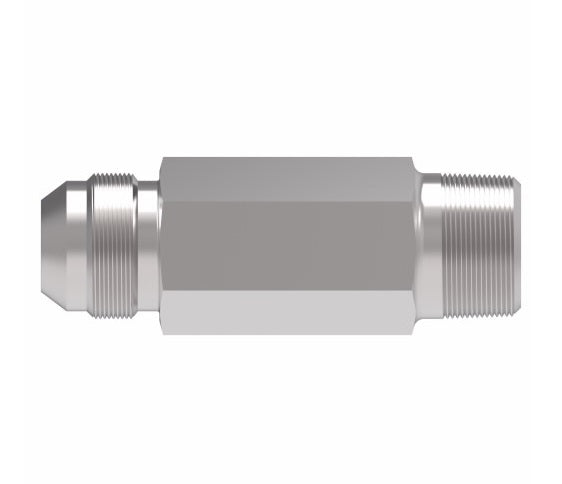

202113-24-24S Aeroquip by Danfoss | External Pipe/37° Flare Adapter | -24 Male NPTF x -24 Male JIC | Steel

202113-24-24S Aeroquip by Danfoss | External Pipe/37° Flare Adapter | -24 Male NPTF x -24 Male JIC | Steel

Name: 202113-24-24S Aeroquip by Danfoss | External Pipe/37° Flare Adapter | -24 Male NPTF x -24 Male JIC | Steel
Brand: Danfoss/Eaton
SKU: 202113-24-24S Danfoss
Price: 130.91 USD
Availability: InStock

$130.91 - $130.91

$130.91

$130.91 - $130.91

$130.91

Aeroquip® by Danfoss
External Pipe/37° Flare Adapter
Male NPTF x Male JIC
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 202113-24-24S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1-1/2in Male NPTF, 1-1/2in Male JIC
Material(s):	Steel


Part Number Steel	Tube O.D.	Threads P	Threads T	A
202113-2-4S	0.25"	1/8-27	7/16-20	1.81"
202113-2-5S	0.31"	1/8-27	1/2-20	1.94"
202113-4-4S	0.25"	1/4-18	7/16-20	2.25"
202113-4-5S	0.31"	1/4-18	1/2-20	2.25"
202113-4-6S	0.38"	1/4-18	9/16-18	2.25"
202113-6-6S	0.38"	3/8-18	9/16-18	2.50"
202113-6-8S	0.50"	3/8-18	3/4-16	2.75"
202113-8-8S	-	-	-	-
202113-8-10S	0.63"	1/2-14	7/8-14	3.21"
202113-8-12S	0.75"	1/2-14	11/16-12	3.28"
202113-12-12S	0.75"	3/4-14	11/16-12	3.50"
202113-16-16S	1.00"	1-11-1/2	15/16-12	4.00"
202113-20-20S	1.50"	1-1/4-11-1/2	1-5/8-12	4.50"
202113-24-24S	1.50"	1-1/2-11-1/2	1-7/8-12	4.88"
202113-32-32S	2.00"	2-11-1/2	2-1/2-12	5.62"
