202113-4-4S Aeroquip by Danfoss | External Pipe/37° Flare Adapter | -04 Male NPTF x -04 Male JIC | Steel

202113-4-4S Aeroquip by Danfoss | External Pipe/37° Flare Adapter | -04 Male NPTF x -04 Male JIC | Steel

Name: 202113-4-4S Aeroquip by Danfoss | External Pipe/37° Flare Adapter | -04 Male NPTF x -04 Male JIC | Steel
Brand: Danfoss/Eaton
SKU: 202113-4-4S Danfoss
Price: 21.58 USD
Availability: InStock

$21.58 - $21.58

$21.58

$21.58 - $21.58

$21.58

Aeroquip® by Danfoss

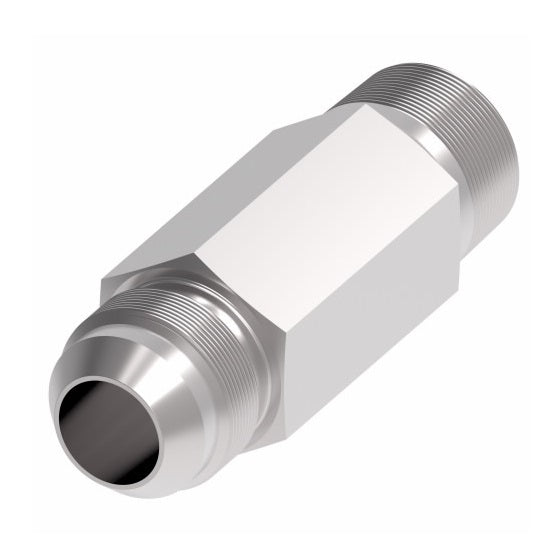

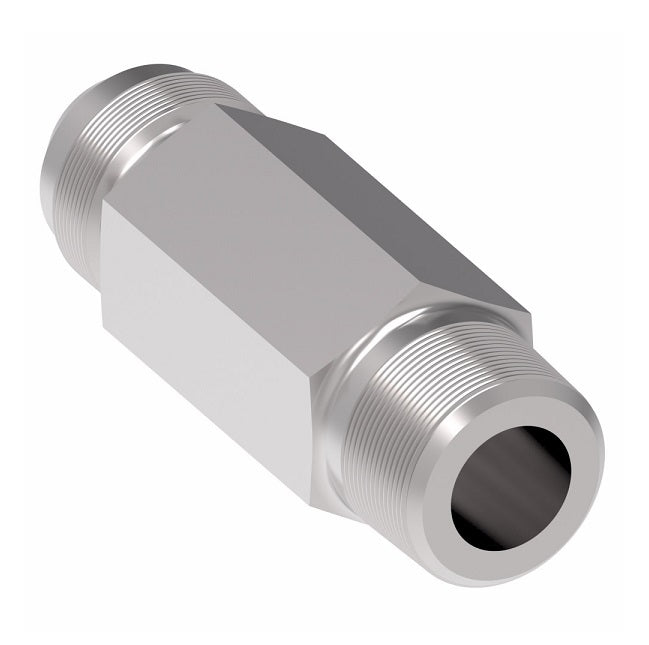

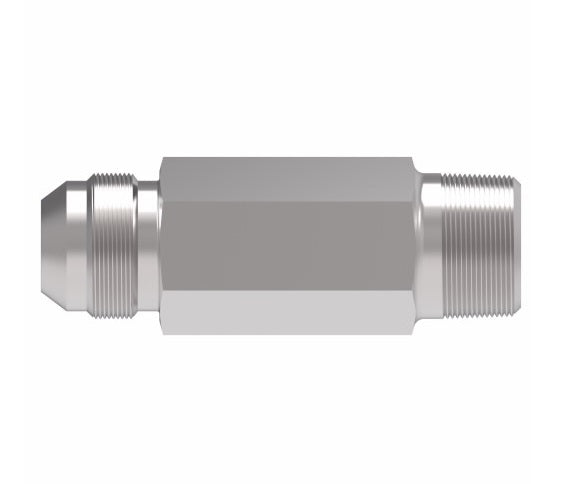

External Pipe/37° Flare Adapter
Male NPTF x Male JIC
Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 202113-4-4S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male NPTF, 1/4in Male JIC
Material(s):	Steel


Part Number Steel	Tube O.D.	Threads P	Threads T	A
202113-2-4S	0.25"	1/8-27	7/16-20	1.81"
202113-2-5S	0.31"	1/8-27	1/2-20	1.94"
202113-4-4S	0.25"	1/4-18	7/16-20	2.25"
202113-4-5S	0.31"	1/4-18	1/2-20	2.25"
202113-4-6S	0.38"	1/4-18	9/16-18	2.25"
202113-6-6S	0.38"	3/8-18	9/16-18	2.50"
202113-6-8S	0.50"	3/8-18	3/4-16	2.75"
202113-8-8S	-	-	-	-
202113-8-10S	0.63"	1/2-14	7/8-14	3.21"
202113-8-12S	0.75"	1/2-14	11/16-12	3.28"
202113-12-12S	0.75"	3/4-14	11/16-12	3.50"
202113-16-16S	1.00"	1-11-1/2	15/16-12	4.00"
202113-20-20S	1.50"	1-1/4-11-1/2	1-5/8-12	4.50"
202113-24-24S	1.50"	1-1/2-11-1/2	1-7/8-12	4.88"
202113-32-32S	2.00"	2-11-1/2	2-1/2-12	5.62"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
