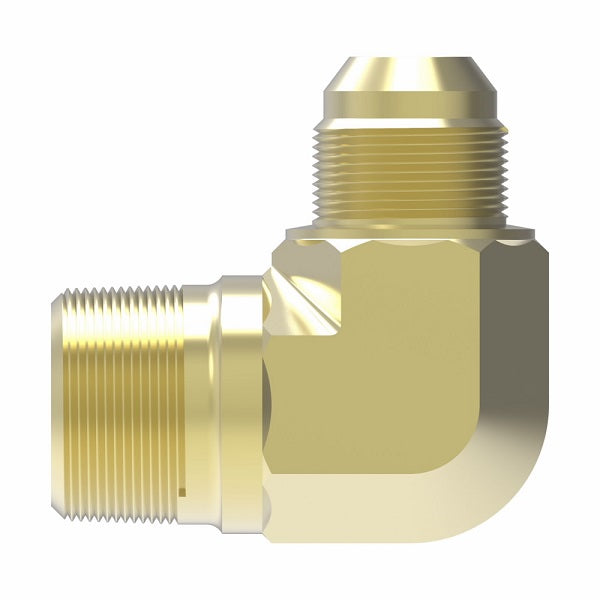

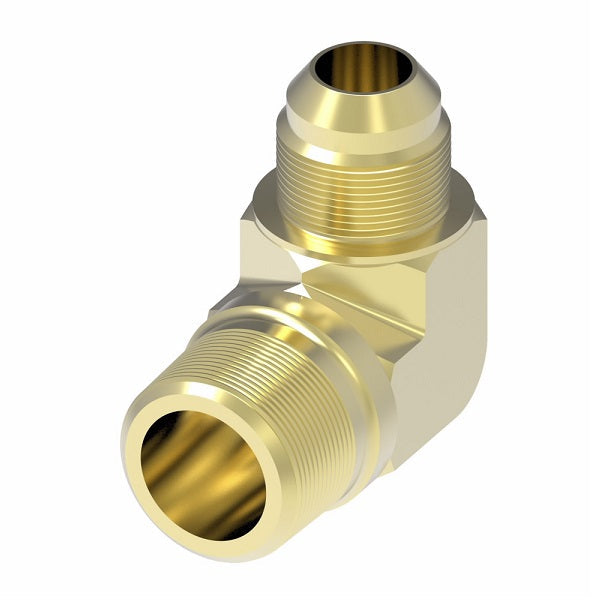

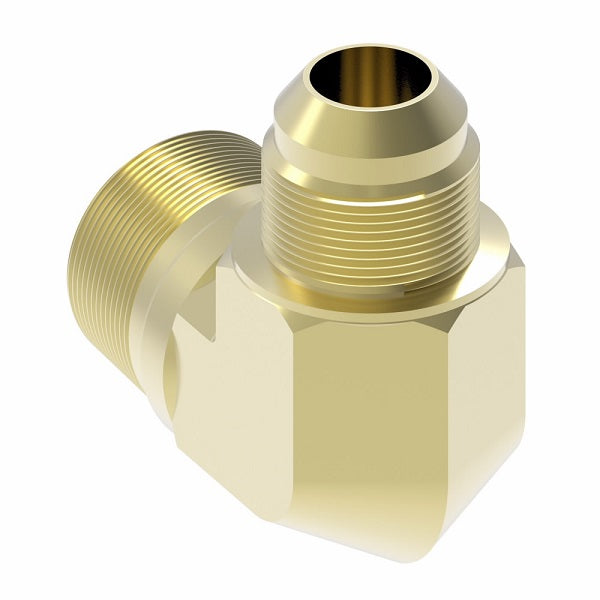

2024-12-12B Aeroquip by Danfoss | External Pipe/37° JIC Flare 90° Elbow Adapter | -12 Male NPTF x -12 Male 37° JIC Flare | Brass
2024-12-12B Aeroquip by Danfoss | External Pipe/37° JIC Flare 90° Elbow Adapter | -12 Male NPTF x -12 Male 37° JIC Flare | Brass
2024-12-12B Aeroquip by Danfoss | External Pipe/37° JIC Flare 90° Elbow Adapter | -12 Male NPTF x -12 Male 37° JIC Flare | Brass
2024-12-12B Aeroquip by Danfoss | External Pipe/37° JIC Flare 90° Elbow Adapter | -12 Male NPTF x -12 Male 37° JIC Flare | Brass

2024-12-12B Aeroquip by Danfoss | External Pipe/37° JIC Flare 90° Elbow Adapter | -12 Male NPTF x -12 Male 37° JIC Flare | Brass

$32.14 - $32.14
$32.14
$32.14 - $32.14
$32.14

Aeroquip® by Danfoss
External Pipe/37° JIC Flare Adapter
Male NPTF x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2024-12-12B Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Male NPTF, 3/4in Male JIC
Material(s): Brass
Specifications:
  • Ref. SAE 070202
Part Number
Steel 		Part Number
Brass		 Part Number
Stainless Steel 		Tube O.D. Thread P Thread T A B
2024-2-3S - - 0.19" 1/8-27 3/8-24 0.72" 0.83"
2024-2-4S 2024-2-4B 259-2024-2-4 0.25" 1/8-27 7/16-20 0.78" 0.89"
2024-2-5S - - 0.31" 1/8-27 1/2-20 0.78" 0.95"
2024-2-6S 2024-2-6B - 0.38" 1/8-27 9/16-18 0.90" 1.06"
2024-4-4S 2024-4-4B 259-2024-4-4 0.25" 1/4-18 7/16-20 1.09" 1.05"
2024-4-5S 2024-4-5B - 0.31" 1/4-18 1/2-20 1.09" 1.05"
2024-4-6S 2024-4-6B 259-2024-4-6 0.38" 1/4-18 9/16-18 1.09" 1.06"
2024-4-8S - - 0.50" 1/4-18 3/4-16 1.22" 1.25"
2024-6-4S 2024-6-4B - 0.25" 3/8-18 7/16-20 1.22" 1.12"
2024-6-5S - - 0.31" 3/8-18 1/2-20 1.22" 1.12"
2024-6-6S 2024-6-6B 259-2024-6-6 0.38" 3/8-18 9/16-18 1.22" 1.14"
2024-6-8S 2024-6-8B - 0.50" 3/8-18 3/4-16 1.22" 1.25"
2024-6-10S - - 0.63" 3/8-18 7/8-14 1.28" 1.45"
2024-6-12S - - 0.75" 3/8-18 1-1/16-12 1.40" 1.66"
2024-8-4S - - 0.25" 1/2-14 7/16-20 1.47" 1.21"
2024-8-6S 2024-8-6B - 0.38" 1/2-14 9/16-18 1.47" 1.22"
2024-8-8S 2024-8-8B 259-2024-8-8 0.50" 1/2-14 3/4-16 1.47" 1.33"
2024-8-10S 2024-8-10B - 0.63" 1/2-14 7/8-14 1.47" 1.45"
2024-8-12S 2024-8-12B - 0.75" 1/2-14 1-1/16-12 1.59" 1.66"
2024-8-16S - - 1.00" 1/2-14 1-5/16-12 1.78" 1.81"
2024-12-6S - - 0.38" 3/4-14 9/16-18 1.59" 1.31"
2024-12-8S - - 0.50" 3/4-14 3/4-16 1.59" 1.42"
2024-12-10S - - 0.63" 3/4-14 7/8-14 1.59" 1.54"
2024-12-12S 2024-12-12B - 0.75" 3/4-14 1-1/16-12 1.59" 1.66"
2024-12-16S - - 1.00" 3/4-14 1-5/16-12 1.78" 1.81"
2024-16-8S - - 0.50" 1-11-1/2 3/4-16 1.97" 1.52"
2024-16-12S 2024-16-12B - 0.75" 1-11-1/2 1-1/16-12 1.97" 1.76"
2024-16-16S 2024-16-16B 259-2024-16-16 1.00" 1-11-1/2 1-5/16-12 1.97" 1.81"
2024-16-20S - - 1.25" 1-11-1/2 1-5/8-12 2.35" 2.06"
2024-20-16S - - 1.00" 1-1/4-11-1/2 1-5/16-12 2.38" 2.01"
2024-20-20S - - 1.25" 1-1/4-11-1/2 1-5/8-12 2.38" 2.06"
2024-20-24S - - 1.50" 1-1/4-11-1/2 1-7/8-12 2.61" 2.33"
2024-24-20S - - 1.25" 1-1/2-11-1/2 1-5/8-12 2.64" 2.20"
2024-24-24S 2024-24-24B - 1.50" 1-1/2-11-1/2 1-7/8-12 2.64" 2.33"
- 2024-32-24B - - 2-1/2-12 1-1/2-11-1/2 - -
2024-24-32S - - 2.00" 1-1/2-11-1/2 2-1/2-12 2.97" 3.06"
2024-32-32S 2024-32-32B - 2.00" 2-11-1/2 2-1/2-12 3.00" 3.06"
