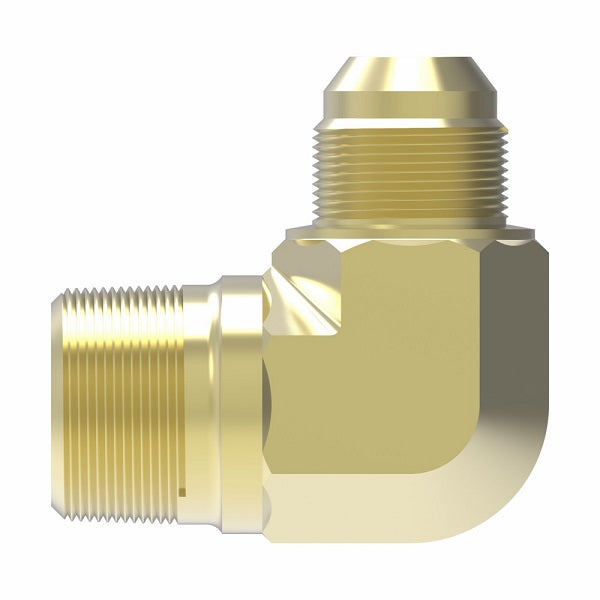

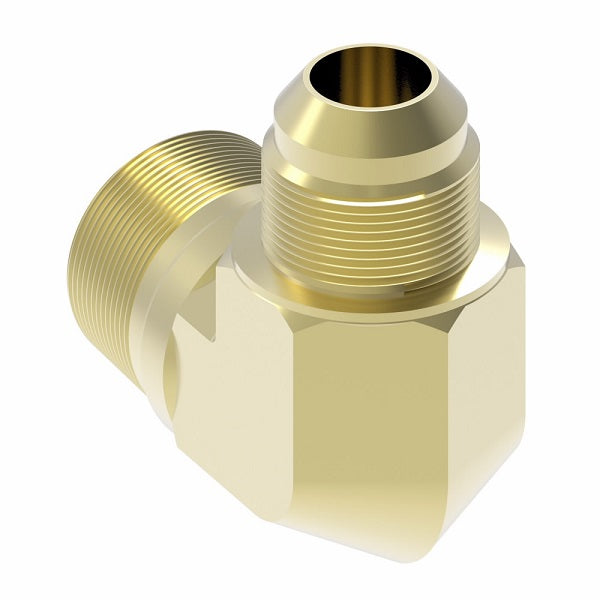

2024-16-12B Aeroquip by Danfoss | External Pipe/37° JIC Flare 90° Elbow Adapter | -16 Male NPTF x -12 Male 37° JIC Flare | Brass

Name: 2024-16-12B Aeroquip by Danfoss | External Pipe/37° JIC Flare 90° Elbow Adapter | -16 Male NPTF x -12 Male 37° JIC Flare | Brass
Brand: Danfoss/Eaton
SKU: 2024-16-12B Danfoss
Price: 194.69 USD
Availability: InStock

Save $21.63

$216.32

$216.32 - $216.32

$216.32

$194.69

$194.69 - $194.69

$194.69

Aeroquip® by Danfoss
External Pipe/37° JIC Flare Adapter
Male NPTF x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for SKU: 2024-16-12B Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1in Male NPTF X 3/4in Male JIC
Material(s):	Brass

Specifications:
Ref. SAE 070202


Part Number Steel	Part Number Brass	Part Number Stainless Steel	Tube O.D.	Thread P	Thread T	A	B
2024-2-3S	-	-	0.19"	1/8-27	3/8-24	0.72"	0.83"
2024-2-4S	2024-2-4B	259-2024-2-4	0.25"	1/8-27	7/16-20	0.78"	0.89"
2024-2-5S	-	-	0.31"	1/8-27	1/2-20	0.78"	0.95"
2024-2-6S	2024-2-6B	-	0.38"	1/8-27	9/16-18	0.90"	1.06"
2024-4-4S	2024-4-4B	259-2024-4-4	0.25"	1/4-18	7/16-20	1.09"	1.05"
2024-4-5S	2024-4-5B	-	0.31"	1/4-18	1/2-20	1.09"	1.05"
2024-4-6S	2024-4-6B	259-2024-4-6	0.38"	1/4-18	9/16-18	1.09"	1.06"
2024-4-8S	-	-	0.50"	1/4-18	3/4-16	1.22"	1.25"
2024-6-4S	2024-6-4B	-	0.25"	3/8-18	7/16-20	1.22"	1.12"
2024-6-5S	-	-	0.31"	3/8-18	1/2-20	1.22"	1.12"
2024-6-6S	2024-6-6B	259-2024-6-6	0.38"	3/8-18	9/16-18	1.22"	1.14"
2024-6-8S	2024-6-8B	-	0.50"	3/8-18	3/4-16	1.22"	1.25"
2024-6-10S	-	-	0.63"	3/8-18	7/8-14	1.28"	1.45"
2024-6-12S	-	-	0.75"	3/8-18	1-1/16-12	1.40"	1.66"
2024-8-4S	-	-	0.25"	1/2-14	7/16-20	1.47"	1.21"
2024-8-6S	2024-8-6B	259-2024-8-6	0.38"	1/2-14	9/16-18	1.47"	1.22"
2024-8-8S	2024-8-8B	259-2024-8-8	0.50"	1/2-14	3/4-16	1.47"	1.33"
2024-8-10S	2024-8-10B	-	0.63"	1/2-14	7/8-14	1.47"	1.45"
2024-8-12S	2024-8-12B	-	0.75"	1/2-14	1-1/16-12	1.59"	1.66"
2024-8-16S	-	-	1.00"	1/2-14	1-5/16-12	1.78"	1.81"
2024-12-6S	-	-	0.38"	3/4-14	9/16-18	1.59"	1.31"
2024-12-8S	-	-	0.50"	3/4-14	3/4-16	1.59"	1.42"
2024-12-10S	-	-	0.63"	3/4-14	7/8-14	1.59"	1.54"
2024-12-12S	2024-12-12B	-	0.75"	3/4-14	1-1/16-12	1.59"	1.66"
2024-12-16S	2024-12-16B	-	1.00"	3/4-14	1-5/16-12	1.78"	1.81"
2024-16-8S	-	-	0.50"	1-11-1/2	3/4-16	1.97"	1.52"
2024-16-12S	2024-16-12B	-	0.75"	1-11-1/2	1-1/16-12	1.97"	1.76"
2024-16-16S	2024-16-16B	259-2024-16-16	1.00"	1-11-1/2	1-5/16-12	1.97"	1.81"
2024-16-20S	-	-	1.25"	1-11-1/2	1-5/8-12	2.35"	2.06"
2024-20-16S	-	-	1.00"	1-1/4-11-1/2	1-5/16-12	2.38"	2.01"
2024-20-20S	2024-20-20B	-	1.25"	1-1/4-11-1/2	1-5/8-12	2.38"	2.06"
2024-20-24S	-	-	1.50"	1-1/4-11-1/2	1-7/8-12	2.61"	2.33"
2024-24-20S	-	-	1.25"	1-1/2-11-1/2	1-5/8-12	2.64"	2.20"
2024-24-24S	2024-24-24B	-	1.50"	1-1/2-11-1/2	1-7/8-12	2.64"	2.33"
-	2024-32-24B	-	-	2-1/2-12	1-1/2-11-1/2	-	-
2024-24-32S	-	-	2.00"	1-1/2-11-1/2	2-1/2-12	2.97"	3.06"
2024-32-32S	2024-32-32B	-	2.00"	2-11-1/2	2-1/2-12	3.00"	3.06"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
