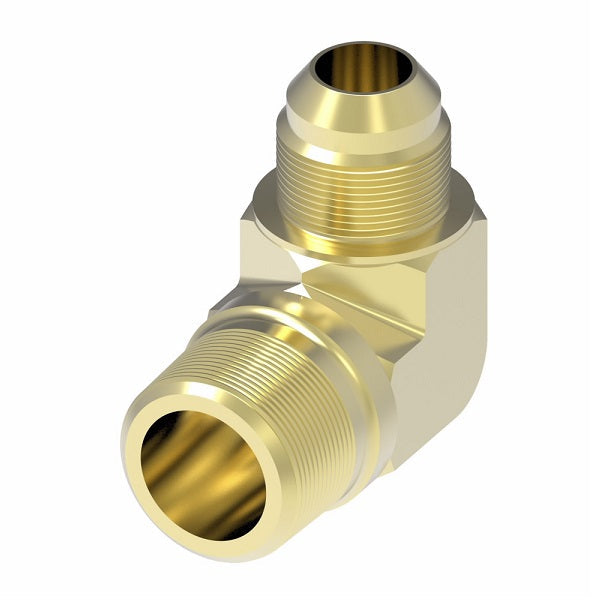

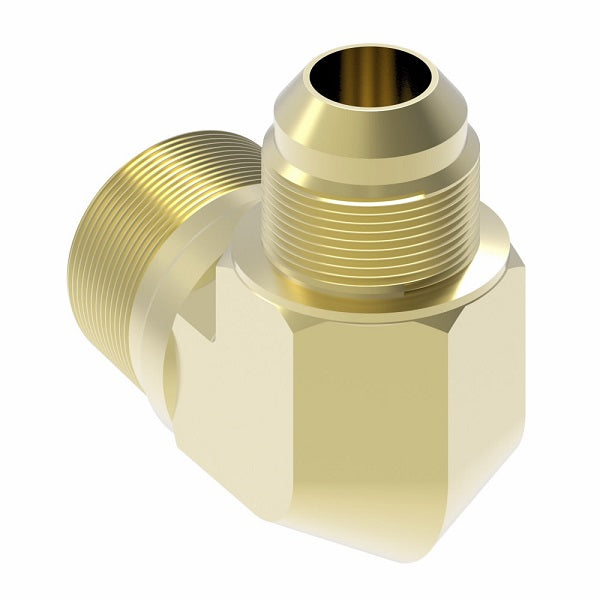

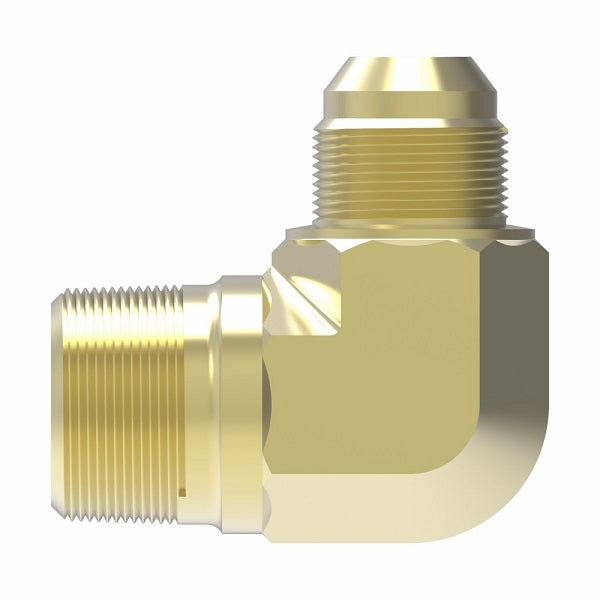

2024-32-24B Aeroquip by Danfoss | External Pipe/37° JIC Flare 90° Elbow Adapter | -32 Male NPTF x -24 Male 37° JIC Flare | Brass
2024-32-24B Aeroquip by Danfoss | External Pipe/37° JIC Flare 90° Elbow Adapter | -32 Male NPTF x -24 Male 37° JIC Flare | Brass
2024-32-24B Aeroquip by Danfoss | External Pipe/37° JIC Flare 90° Elbow Adapter | -32 Male NPTF x -24 Male 37° JIC Flare | Brass
2024-32-24B Aeroquip by Danfoss | External Pipe/37° JIC Flare 90° Elbow Adapter | -32 Male NPTF x -24 Male 37° JIC Flare | Brass

2024-32-24B Aeroquip by Danfoss | External Pipe/37° JIC Flare 90° Elbow Adapter | -32 Male NPTF x -24 Male 37° JIC Flare | Brass

$672.28 - $672.28
$672.28
$672.28 - $672.28
$672.28

Aeroquip® by Danfoss
External Pipe/37° JIC Flare Adapter
Male NPTF x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2024-32-24B Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 2in Male NPTF, 1-1/2in Male JIC
Material(s): Brass
Specifications:
  • Ref. SAE 070202
Part Number
Steel 		Part Number
Brass		 Part Number
Stainless Steel 		Tube O.D. Thread P Thread T A B
2024-2-3S - - 0.19" 1/8-27 3/8-24 0.72" 0.83"
2024-2-4S 2024-2-4B 259-2024-2-4 0.25" 1/8-27 7/16-20 0.78" 0.89"
2024-2-5S - - 0.31" 1/8-27 1/2-20 0.78" 0.95"
2024-2-6S 2024-2-6B - 0.38" 1/8-27 9/16-18 0.90" 1.06"
2024-4-4S 2024-4-4B 259-2024-4-4 0.25" 1/4-18 7/16-20 1.09" 1.05"
2024-4-5S 2024-4-5B - 0.31" 1/4-18 1/2-20 1.09" 1.05"
2024-4-6S 2024-4-6B 259-2024-4-6 0.38" 1/4-18 9/16-18 1.09" 1.06"
2024-4-8S - - 0.50" 1/4-18 3/4-16 1.22" 1.25"
2024-6-4S 2024-6-4B - 0.25" 3/8-18 7/16-20 1.22" 1.12"
2024-6-5S - - 0.31" 3/8-18 1/2-20 1.22" 1.12"
2024-6-6S 2024-6-6B 259-2024-6-6 0.38" 3/8-18 9/16-18 1.22" 1.14"
2024-6-8S 2024-6-8B - 0.50" 3/8-18 3/4-16 1.22" 1.25"
2024-6-10S - - 0.63" 3/8-18 7/8-14 1.28" 1.45"
2024-6-12S - - 0.75" 3/8-18 1-1/16-12 1.40" 1.66"
2024-8-4S - - 0.25" 1/2-14 7/16-20 1.47" 1.21"
2024-8-6S 2024-8-6B - 0.38" 1/2-14 9/16-18 1.47" 1.22"
2024-8-8S 2024-8-8B 259-2024-8-8 0.50" 1/2-14 3/4-16 1.47" 1.33"
2024-8-10S 2024-8-10B - 0.63" 1/2-14 7/8-14 1.47" 1.45"
2024-8-12S 2024-8-12B - 0.75" 1/2-14 1-1/16-12 1.59" 1.66"
2024-8-16S - - 1.00" 1/2-14 1-5/16-12 1.78" 1.81"
2024-12-6S - - 0.38" 3/4-14 9/16-18 1.59" 1.31"
2024-12-8S - - 0.50" 3/4-14 3/4-16 1.59" 1.42"
2024-12-10S - - 0.63" 3/4-14 7/8-14 1.59" 1.54"
2024-12-12S 2024-12-12B - 0.75" 3/4-14 1-1/16-12 1.59" 1.66"
2024-12-16S - - 1.00" 3/4-14 1-5/16-12 1.78" 1.81"
2024-16-8S - - 0.50" 1-11-1/2 3/4-16 1.97" 1.52"
2024-16-12S 2024-16-12B - 0.75" 1-11-1/2 1-1/16-12 1.97" 1.76"
2024-16-16S 2024-16-16B 259-2024-16-16 1.00" 1-11-1/2 1-5/16-12 1.97" 1.81"
2024-16-20S - - 1.25" 1-11-1/2 1-5/8-12 2.35" 2.06"
2024-20-16S - - 1.00" 1-1/4-11-1/2 1-5/16-12 2.38" 2.01"
2024-20-20S - - 1.25" 1-1/4-11-1/2 1-5/8-12 2.38" 2.06"
2024-20-24S - - 1.50" 1-1/4-11-1/2 1-7/8-12 2.61" 2.33"
2024-24-20S - - 1.25" 1-1/2-11-1/2 1-5/8-12 2.64" 2.20"
2024-24-24S 2024-24-24B - 1.50" 1-1/2-11-1/2 1-7/8-12 2.64" 2.33"
- 2024-32-24B - - 2-1/2-12 1-1/2-11-1/2 - -
2024-24-32S - - 2.00" 1-1/2-11-1/2 2-1/2-12 2.97" 3.06"
2024-32-32S 2024-32-32B - 2.00" 2-11-1/2 2-1/2-12 3.00" 3.06"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
