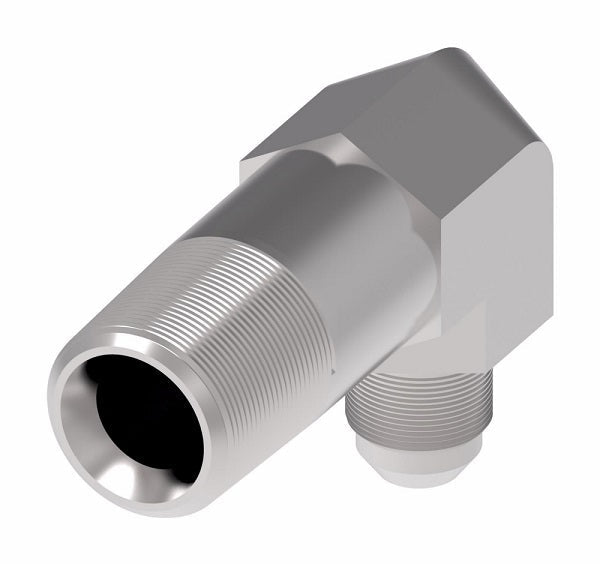

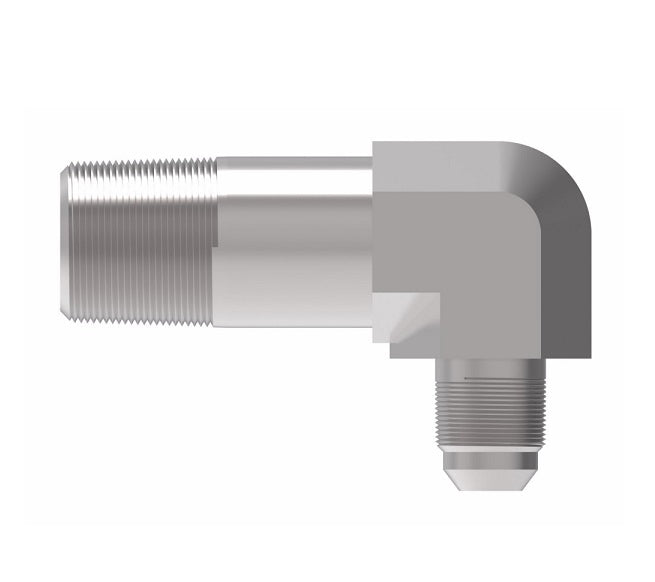

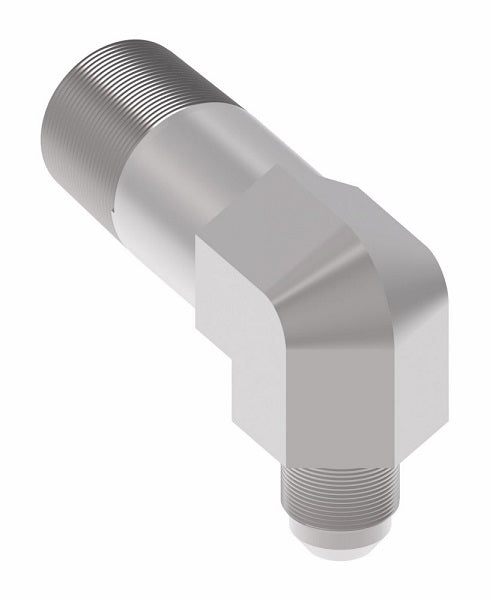

202411-2-4S Aeroquip by Danfoss | Extra Pipe/37° JIC Flare 90° Elbow Adapter | -02 Male NPTF x -04 Male 37° JIC Flare | Steel
202411-2-4S Aeroquip by Danfoss | Extra Pipe/37° JIC Flare 90° Elbow Adapter | -02 Male NPTF x -04 Male 37° JIC Flare | Steel
202411-2-4S Aeroquip by Danfoss | Extra Pipe/37° JIC Flare 90° Elbow Adapter | -02 Male NPTF x -04 Male 37° JIC Flare | Steel
202411-2-4S Aeroquip by Danfoss | Extra Pipe/37° JIC Flare 90° Elbow Adapter | -02 Male NPTF x -04 Male 37° JIC Flare | Steel

202411-2-4S Aeroquip by Danfoss | Extra Pipe/37° JIC Flare 90° Elbow Adapter | -02 Male NPTF x -04 Male 37° JIC Flare | Steel

$6.43 - $6.43
$6.43
$6.43 - $6.43
$6.43

Aeroquip® by Danfoss
Extra Pipe/37° JIC Flare Adapter
Male NPTF x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 202411-2-4S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/8in Male NPTF, 1/4in Male JIC
Material(s): Steel
Special Properties: Long Drop
Specifications:
  • Ref. SAE 071502
Part Number
Steel		 Tube O.D. Thread P Thread T A B
202411-2-4S 0.25" 1/8-27 7/16-20 1.17" 0.89"
202411-2-5S 0.31" 1/8-27 1/2-20 1.17" 0.95"
202411-4-4S 0.25" 1/4-18 7/16-20 1.58" 1.05"
202411-4-6S 0.38" 1/4-18 9/16-18 1.58" 1.06"
202411-4-8S 0.50" 1/4-18 3/4-16 1.82" 1.25"
202411-6-6S 0.38" 3/8-18 9/16-18 1.82" 1.14"
202411-6-8S 0.50" 3/8-18 3/4-16 1.82" 1.25"
202411-8-8S 0.50" 1/2-14 3/4-16 2.17" 1.33"
202411-8-10S 0.63" 1/2-14 7/8-14 2.17" 1.45"
202411-12-10S 0.63" 3/4-14 7/8-14 2.44" 1.54"
202411-12-12S 0.75" 3/4-14 1-1/16-12 2.44" 1.66"
202411-12-16S 1.00" 3/4-14 1-5/16-12 2.82" 1.81"
202411-16-16S 1.00" 1-11-1/2 1-5/16-12 3.01" 1.81"
202411-20-20S 1.25" 1-1/4-11-1/2 1-5/8-12 3.69" 2.06"
