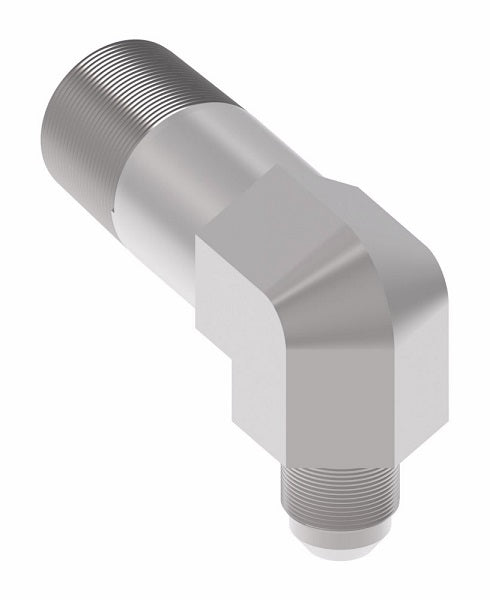

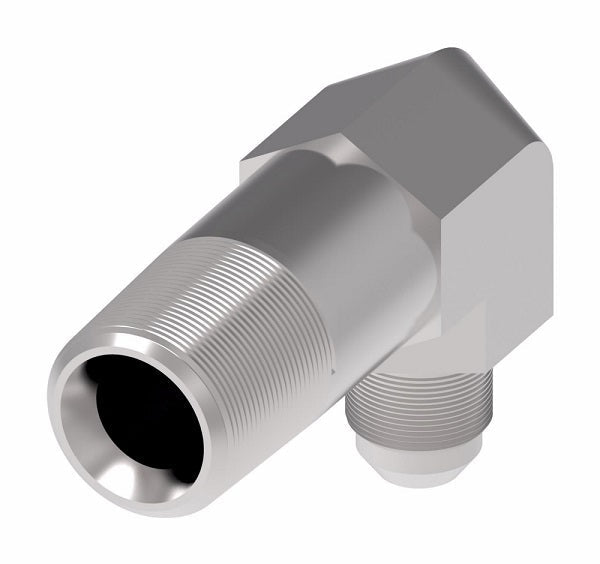

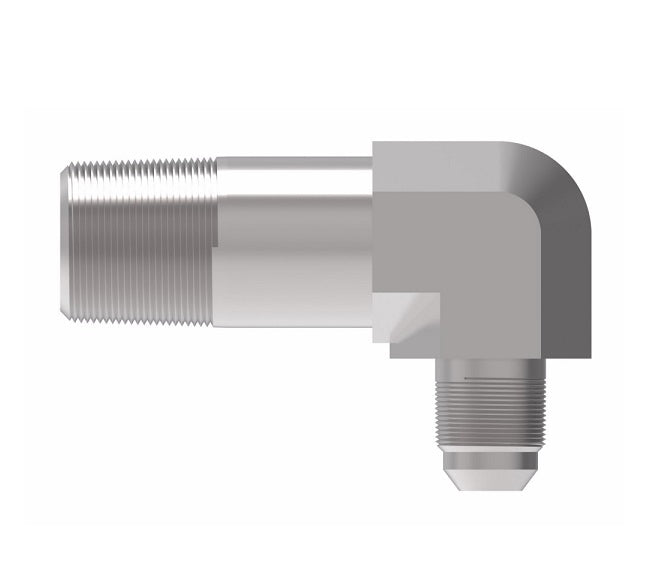

202411-4-6S Aeroquip by Danfoss | Extra Pipe/37° JIC Flare 90° Elbow Adapter | -04 Male NPTF x -06 Male 37° JIC Flare | Steel

202411-4-6S Aeroquip by Danfoss | Extra Pipe/37° JIC Flare 90° Elbow Adapter | -04 Male NPTF x -06 Male 37° JIC Flare | Steel

Name: 202411-4-6S Aeroquip by Danfoss | Extra Pipe/37° JIC Flare 90° Elbow Adapter | -04 Male NPTF x -06 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 202411-4-6S Danfoss
Price: 9.7 USD
Availability: InStock

$9.70 - $9.70

$9.70

$9.70 - $9.70

$9.70

Aeroquip® by Danfoss
Extra Pipe/37° JIC Flare Adapter
Male NPTF x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 202411-4-6S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1/4in Male NPTF, 3/8in Male JIC
Material(s):	Steel
Special Properties:	Long Drop

Specifications:
Ref. SAE 071502


Part Number Steel	Tube O.D.	Thread P	Thread T	A	B
202411-2-4S	0.25"	1/8-27	7/16-20	1.17"	0.89"
202411-2-5S	0.31"	1/8-27	1/2-20	1.17"	0.95"
202411-4-4S	0.25"	1/4-18	7/16-20	1.58"	1.05"
202411-4-6S	0.38"	1/4-18	9/16-18	1.58"	1.06"
202411-4-8S	0.50"	1/4-18	3/4-16	1.82"	1.25"
202411-6-6S	0.38"	3/8-18	9/16-18	1.82"	1.14"
202411-6-8S	0.50"	3/8-18	3/4-16	1.82"	1.25"
202411-8-8S	0.50"	1/2-14	3/4-16	2.17"	1.33"
202411-8-10S	0.63"	1/2-14	7/8-14	2.17"	1.45"
202411-12-10S	0.63"	3/4-14	7/8-14	2.44"	1.54"
202411-12-12S	0.75"	3/4-14	1-1/16-12	2.44"	1.66"
202411-12-16S	1.00"	3/4-14	1-5/16-12	2.82"	1.81"
202411-16-16S	1.00"	1-11-1/2	1-5/16-12	3.01"	1.81"
202411-20-20S	1.25"	1-1/4-11-1/2	1-5/8-12	3.69"	2.06"
