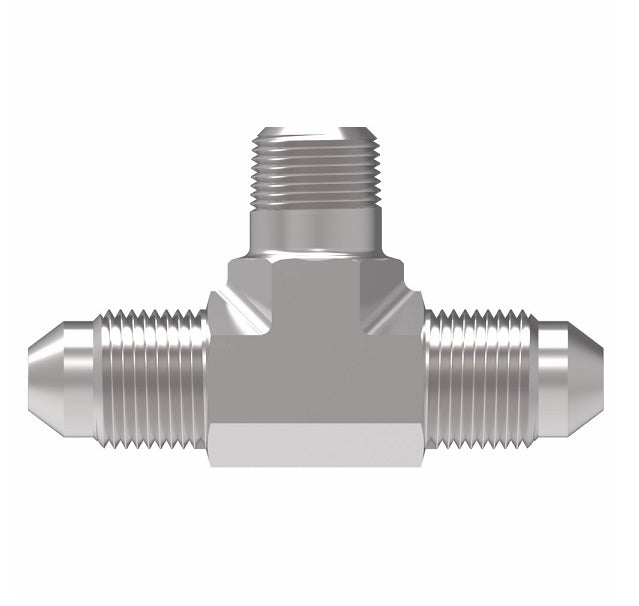

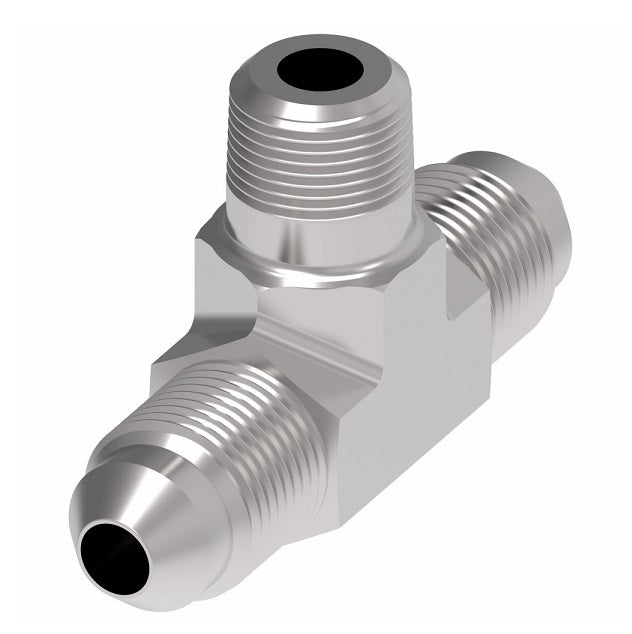

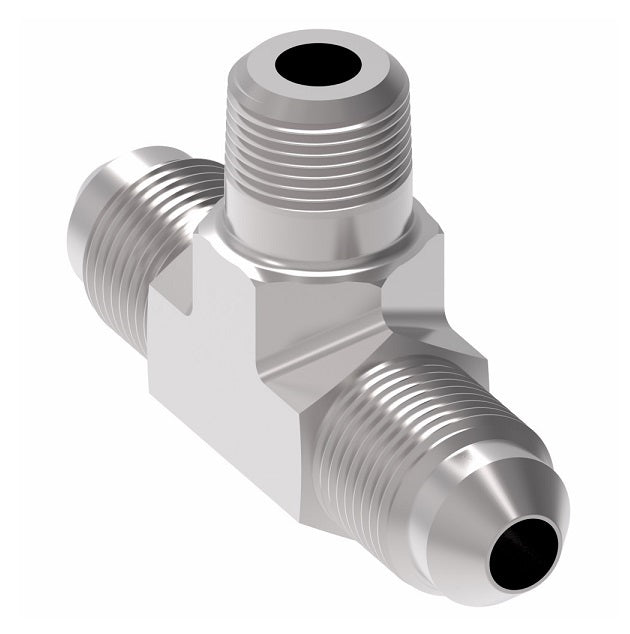

2030-20-20S Aeroquip by Danfoss | External Pipe Branch/37° JIC Flare Tee Adapter | -20 Male 37° JIC Flare x -20 Male 37° JIC Flare x -20 Male NPTF | Steel
2030-20-20S Aeroquip by Danfoss | External Pipe Branch/37° JIC Flare Tee Adapter | -20 Male 37° JIC Flare x -20 Male 37° JIC Flare x -20 Male NPTF | Steel
2030-20-20S Aeroquip by Danfoss | External Pipe Branch/37° JIC Flare Tee Adapter | -20 Male 37° JIC Flare x -20 Male 37° JIC Flare x -20 Male NPTF | Steel
2030-20-20S Aeroquip by Danfoss | External Pipe Branch/37° JIC Flare Tee Adapter | -20 Male 37° JIC Flare x -20 Male 37° JIC Flare x -20 Male NPTF | Steel

2030-20-20S Aeroquip by Danfoss | External Pipe Branch/37° JIC Flare Tee Adapter | -20 Male 37° JIC Flare x -20 Male 37° JIC Flare x -20 Male NPTF | Steel

$77.63 - $77.63
$77.63
$77.63 - $77.63
$77.63

Aeroquip® by Danfoss
External Pipe Branch/37° JIC Flare Tee Adapter
Male 37° JIC Flare x Male 37° JIC Flare x Male NPTF

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2030-20-20S Danfoss
Shape (Orientation): Tee
Ends Configuration: 1-1/4in Male JIC, 1-1/4in Male JIC, 1-1/4in Male NPTF
Material(s): Steel
Specifications:
  • Ref. SAE 070425
Part Number
Steel		 Tube O.D. Thread P Thread T A B
2030-2-4S 0.25" 1/8-27 7/16-20 0.78" 0.89"
2030-2-5S - - - - -
2030-4-4S 0.25" 1/4-18 7/16-20 1.09" 1.05"
2030-4-5S 0.31" 1/4-18 1/2-20 1.09" 1.05"
2030-4-6S 0.38" 1/4-18 9/16-18 1.09" 1.06"
2030-6-6S 0.38" 3/8-18 9/16-18 1.22" 1.14"
2030-6-8S 0.50" 3/8-18 3/4-16 1.22" 1.25"
2030-8-6S 0.38" 1/2-14 9/16-18 1.47" 1.22"
2030-8-8S 0.50" 1/2-14 3/4-16 1.47" 1.33"
2030-8-10S 0.63" 1/2-14 7/8-14 1.47" 1.45"
2030-12-12S 0.75" 3/4-14 1-1/16-12 1.59" 1.66"
2030-12-16S 1.00" 3/4-14 1-5/16-12 1.78" 1.81"
2030-16-16S 1.00" 1-11-1/2 1-5/16-12 1.97" 1.81"
2030-20-20S 1.25" 1-1/4-11-1/2 1-5/8-12 2.38" 2.06"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
