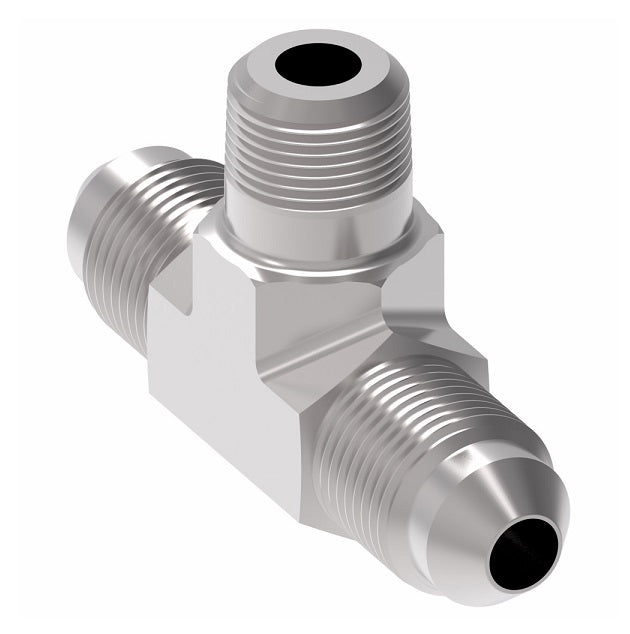

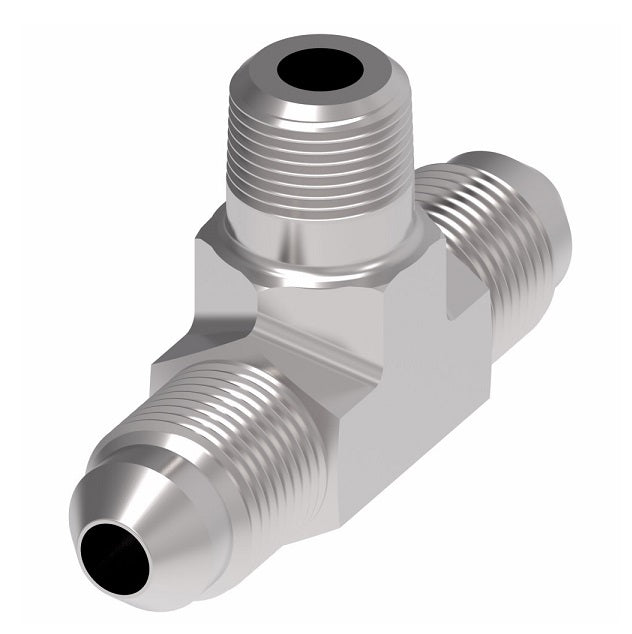

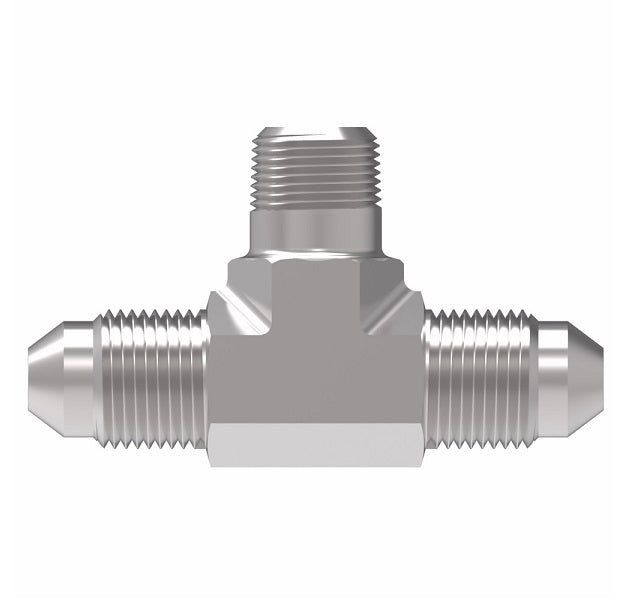

2030-8-10S Aeroquip by Danfoss | External Pipe Branch/37° JIC Flare Tee Adapter | -08 Male 37° JIC Flare x -10 Male 37° JIC Flare x -10 Male NPTF | Steel
2030-8-10S Aeroquip by Danfoss | External Pipe Branch/37° JIC Flare Tee Adapter | -08 Male 37° JIC Flare x -10 Male 37° JIC Flare x -10 Male NPTF | Steel
2030-8-10S Aeroquip by Danfoss | External Pipe Branch/37° JIC Flare Tee Adapter | -08 Male 37° JIC Flare x -10 Male 37° JIC Flare x -10 Male NPTF | Steel
2030-8-10S Aeroquip by Danfoss | External Pipe Branch/37° JIC Flare Tee Adapter | -08 Male 37° JIC Flare x -10 Male 37° JIC Flare x -10 Male NPTF | Steel

2030-8-10S Aeroquip by Danfoss | External Pipe Branch/37° JIC Flare Tee Adapter | -08 Male 37° JIC Flare x -10 Male 37° JIC Flare x -10 Male NPTF | Steel

$20.62 - $20.62
$20.62
$20.62 - $20.62
$20.62

Aeroquip® by Danfoss
External Pipe Branch/37° JIC Flare Tee Adapter
Male 37° JIC Flare x Male 37° JIC Flare x Male NPTF

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2030-8-10S Danfoss
Shape (Orientation): Tee
Ends Configuration: 1/2in Male JIC, 5/8in Male JIC, 5/8in Male NPTF
Material(s): Steel
Specifications:
  • Ref. SAE 070425
Part Number
Steel		 Tube O.D. Thread P Thread T A B
2030-2-4S 0.25" 1/8-27 7/16-20 0.78" 0.89"
2030-2-5S - - - - -
2030-4-4S 0.25" 1/4-18 7/16-20 1.09" 1.05"
2030-4-5S 0.31" 1/4-18 1/2-20 1.09" 1.05"
2030-4-6S 0.38" 1/4-18 9/16-18 1.09" 1.06"
2030-6-6S 0.38" 3/8-18 9/16-18 1.22" 1.14"
2030-6-8S 0.50" 3/8-18 3/4-16 1.22" 1.25"
2030-8-6S 0.38" 1/2-14 9/16-18 1.47" 1.22"
2030-8-8S 0.50" 1/2-14 3/4-16 1.47" 1.33"
2030-8-10S 0.63" 1/2-14 7/8-14 1.47" 1.45"
2030-12-12S 0.75" 3/4-14 1-1/16-12 1.59" 1.66"
2030-12-16S 1.00" 3/4-14 1-5/16-12 1.78" 1.81"
2030-16-16S 1.00" 1-11-1/2 1-5/16-12 1.97" 1.81"
2030-20-20S 1.25" 1-1/4-11-1/2 1-5/8-12 2.38" 2.06"
