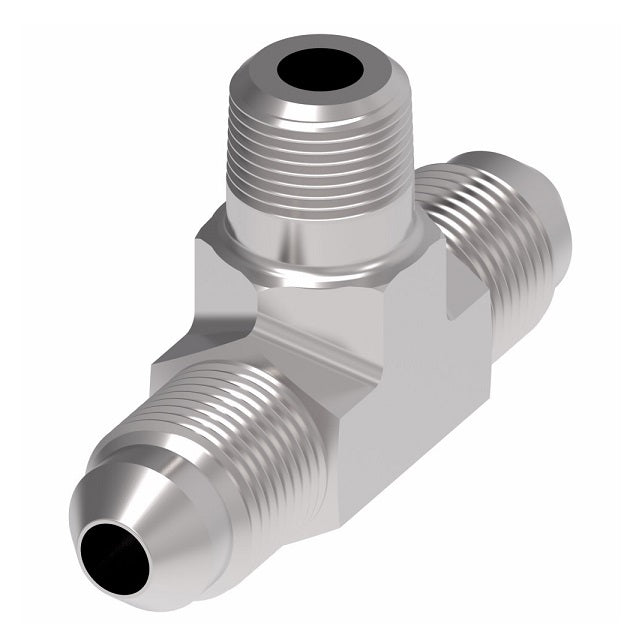

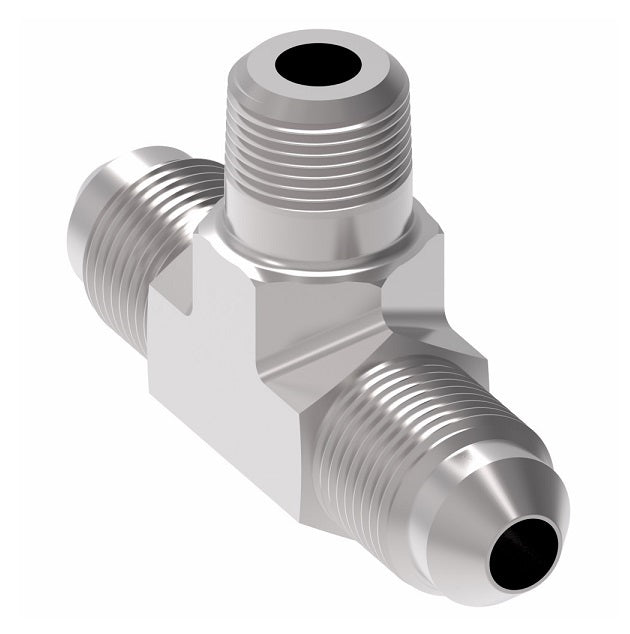

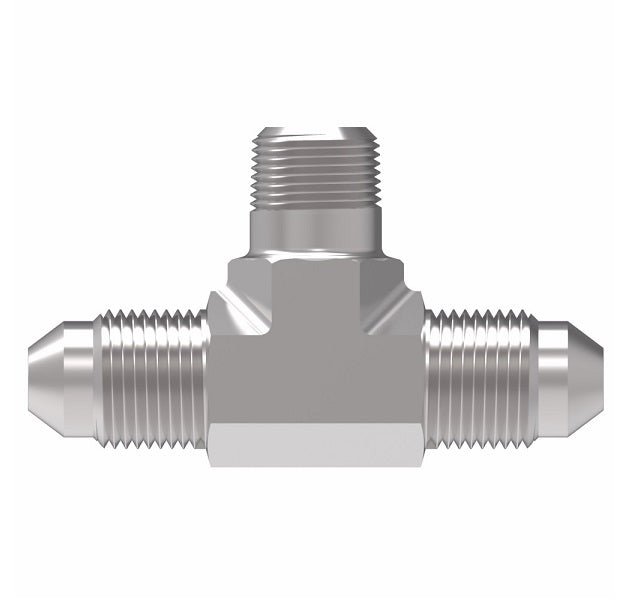

2030-4-4S Aeroquip by Danfoss | External Pipe Branch/37° JIC Flare Tee Adapter | -04 Male 37° JIC Flare x -04 Male 37° JIC Flare x -04 Male NPTF | Steel

Name: 2030-4-4S Aeroquip by Danfoss | External Pipe Branch/37° JIC Flare Tee Adapter | -04 Male 37° JIC Flare x -04 Male 37° JIC Flare x -04 Male NPTF | Steel
Brand: Danfoss/Eaton
SKU: 2030-4-4S Danfoss
Price: 7.44 USD
Availability: InStock

$7.44 - $7.44

$7.44

$7.44 - $7.44

$7.44

Aeroquip® by Danfoss
External Pipe Branch/37° JIC Flare Tee Adapter
Male 37° JIC Flare x Male 37° JIC Flare x Male NPTF

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 2030-4-4S Danfoss
Shape (Orientation):	Tee
Ends Configuration:	1/4in Male JIC, 1/4in Male JIC, 1/4in Male NPTF
Material(s):	Steel

Specifications:
Ref. SAE 070425


Part Number Steel	Tube O.D.	Thread P	Thread T	A	B
2030-2-4S	0.25"	1/8-27	7/16-20	0.78"	0.89"
2030-2-5S	-	-	-	-	-
2030-4-4S	0.25"	1/4-18	7/16-20	1.09"	1.05"
2030-4-5S	0.31"	1/4-18	1/2-20	1.09"	1.05"
2030-4-6S	0.38"	1/4-18	9/16-18	1.09"	1.06"
2030-6-6S	0.38"	3/8-18	9/16-18	1.22"	1.14"
2030-6-8S	0.50"	3/8-18	3/4-16	1.22"	1.25"
2030-8-6S	0.38"	1/2-14	9/16-18	1.47"	1.22"
2030-8-8S	0.50"	1/2-14	3/4-16	1.47"	1.33"
2030-8-10S	0.63"	1/2-14	7/8-14	1.47"	1.45"
2030-12-12S	0.75"	3/4-14	1-1/16-12	1.59"	1.66"
2030-12-16S	1.00"	3/4-14	1-5/16-12	1.78"	1.81"
2030-16-16S	1.00"	1-11-1/2	1-5/16-12	1.97"	1.81"
2030-20-20S	1.25"	1-1/4-11-1/2	1-5/8-12	2.38"	2.06"
