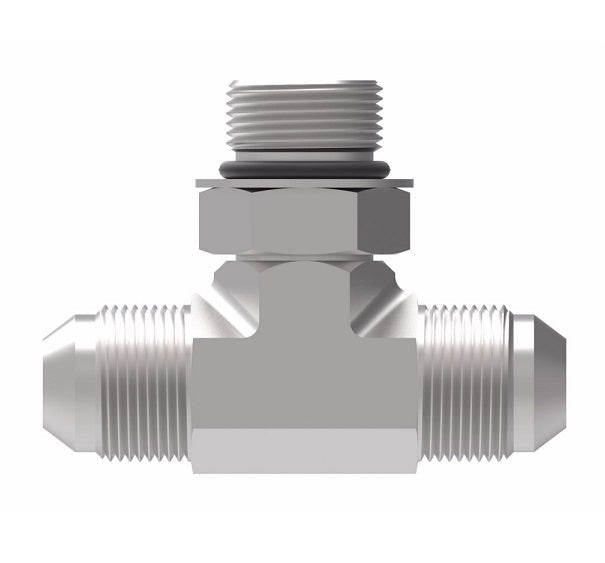

203003-10-10S Aeroquip by Danfoss | SAE ORB (adj.) Branch/37° JIC Flare Tee Adapter | -10 Male SAE O-Ring Boss x -10 Male 37° JIC Flare x -10 Male 37° JIC Flare | Steel
203003-10-10S Aeroquip by Danfoss | SAE ORB (adj.) Branch/37° JIC Flare Tee Adapter | -10 Male SAE O-Ring Boss x -10 Male 37° JIC Flare x -10 Male 37° JIC Flare | Steel
203003-10-10S Aeroquip by Danfoss | SAE ORB (adj.) Branch/37° JIC Flare Tee Adapter | -10 Male SAE O-Ring Boss x -10 Male 37° JIC Flare x -10 Male 37° JIC Flare | Steel
203003-10-10S Aeroquip by Danfoss | SAE ORB (adj.) Branch/37° JIC Flare Tee Adapter | -10 Male SAE O-Ring Boss x -10 Male 37° JIC Flare x -10 Male 37° JIC Flare | Steel

203003-10-10S Aeroquip by Danfoss | SAE ORB (adj.) Branch/37° JIC Flare Tee Adapter | -10 Male SAE O-Ring Boss x -10 Male 37° JIC Flare x -10 Male 37° JIC Flare | Steel

$20.60 - $20.60
$20.60
$20.60 - $20.60
$20.60

Aeroquip® by Danfoss
SAE ORB (adj.) Branch/37° JIC Flare Tee Adapter
Male SAE O-Ring Boss x Male 37° JIC Flare x Male 37° JIC Flare

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 203003-10-10S Danfoss
Shape (Orientation): Tee
Ends Configuration: 5/8in Male O-Ring Boss, 5/8in Male JIC, 5/8in Male JIC
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Specifications:
  • Ref. SAE 070429
Part Number
Steel
Buna-N O-Ring		 Tube O.D. Thread T1 Thread T2 A B
203003-4-4S 0.25" 7/16-20 7/16-20 1.03" 0.89"
203003 -6-6S 0.38" 9/16-18 9/16-18 1.25" 1.06"
203003-8-8S 0.50" 3/4-16 3/4-16 1.45" 1.25"
203003-10-10S - 7/8-14 7/8-14 - -
203003-10-12-12S 0.95" 7/8-14 1-1/16-12 1.78" 1.66"
203003-12-12S 0.75" 1-1/16-12 1-1/16-12 1.94" 1.66"
203003-12-16-16S 1.00" 1-1/16-12 1-5/16-12 2.05" 1.81"
203003-16-16S 1.00" 1-5/16-12 1-5/16-12 2.05" 1.81"
203003-20-20S 1.25" 1-5/8-12 1-5/8-12 2.25" 2.06"
