203003-6-6S Aeroquip by Danfoss | SAE ORB (adj.) Branch/37° JIC Flare Tee Adapter | -06 Male SAE O-Ring Boss x -06 Male 37° JIC Flare x -06 Male 37° JIC Flare | Steel

Name: 203003-6-6S Aeroquip by Danfoss | SAE ORB (adj.) Branch/37° JIC Flare Tee Adapter | -06 Male SAE O-Ring Boss x -06 Male 37° JIC Flare x -06 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 203003-6-6S Danfoss
Price: 9.05 USD
Availability: InStock

$9.05 - $9.05

$9.05

$9.05 - $9.05

$9.05

Aeroquip® by Danfoss

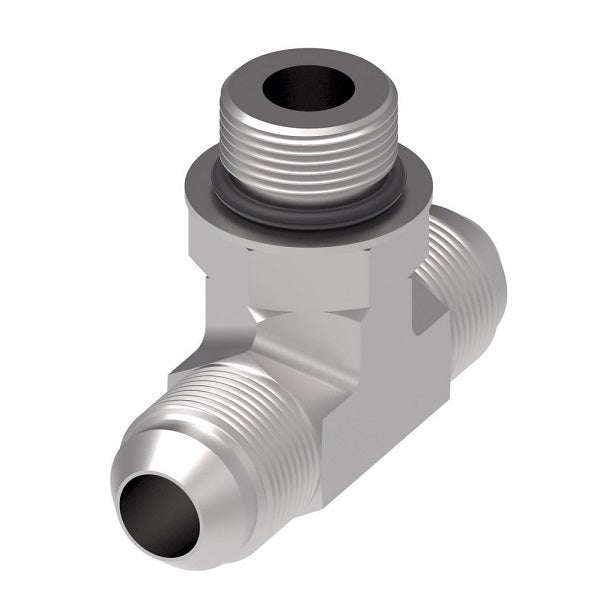

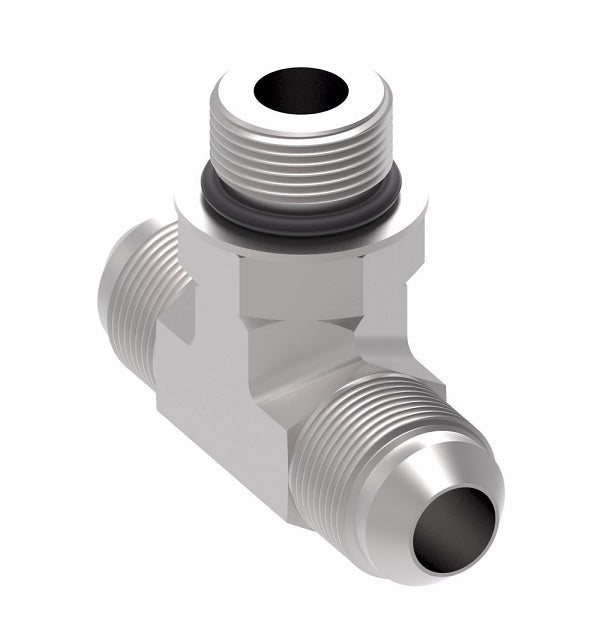

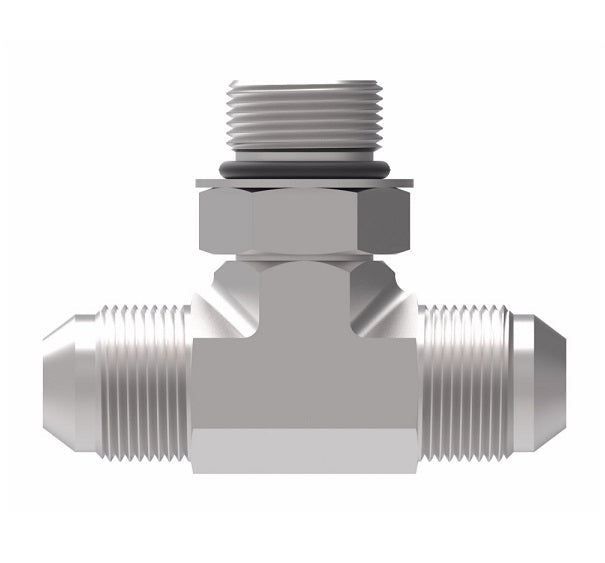

SAE ORB (adj.) Branch/37° JIC Flare Tee Adapter
Male SAE O-Ring Boss x Male 37° JIC Flare x Male 37° JIC Flare

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 203003-6-6S Danfoss
Shape (Orientation):	Tee
Ends Configuration:	3/8in Male O-Ring Boss, 3/8in Male JIC, 3/8in Male JIC
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Specifications:
Ref. SAE 070429


Part Number Steel Buna-N O-Ring	Tube O.D.	Thread T1	Thread T2	A	B
203003-4-4S	0.25"	7/16-20	7/16-20	1.03"	0.89"
203003 -6-6S	0.38"	9/16-18	9/16-18	1.25"	1.06"
203003-8-8S	0.50"	3/4-16	3/4-16	1.45"	1.25"
203003-10-10S	-	7/8-14	7/8-14	-	-
203003-10-12-12S	0.95"	7/8-14	1-1/16-12	1.78"	1.66"
203003-12-12S	0.75"	1-1/16-12	1-1/16-12	1.94"	1.66"
203003-12-16-16S	1.00"	1-1/16-12	1-5/16-12	2.05"	1.81"
203003-16-16S	1.00"	1-5/16-12	1-5/16-12	2.05"	1.81"
203003-20-20S	1.25"	1-5/8-12	1-5/8-12	2.25"	2.06"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
